Multifunction Display

Documents

Features:

  • Primary Attitude
  • Primary Slip
  • Primary Direction Indication
  • Probeless Angle Of Attack
  • Indicated Airspeed (KTS/MPH)
  • Altitude / Vertical Trend / Alerter
  • +8 / -8 G-Meter
  • OAT / TAS / Density Altitude
  • Bus Voltage
  • GPS Navigational Data Overlay
  • GPS HSI / 360 Rose / Arc Map Mode
  • Customizable Colors, Fonts, & Layout
  • Audio Alerts (AoA, G, Roll Limits)
  • 2 Hr Typical Internal Battery Operation



Specifications:
  • Input Voltage Nominal: +10 to +32 VDC
  • Input Voltage Max: +60 VDC
  • Input Power Nominal: 6 Watts (0.5 Amps @ 12VDC)
  • Input Power Max: 12 Watts (1.0 Amps @ 12VDC)
  • Required Circuit Breaker: 2 Amp
  • Operation on Battery: 2 Hours Typ @ 20°C / 30 Minutes Min @ -20C
  • Physical Attributes
    • Mounting Configuration: 3 1/8” Round Instrument Hole 80mm
    • Dimensions wo/Connector: 3.38 x 3.38 x 1.6 Inches
    • Weight: 0.50 Lbs.
    • Electrical Connector: 15 Pin Male D-Sub
    • Pneumatic Connectors: ¼” OD Quick Connect
    • Mounting: (4X) #6-32 Machine Screws
    • Case Material: Billet Aluminum



  • Display
    • Diagonal Size: 3” Circular
    • Contrast Ratio (Typical): 500
    • Brightness (Typical): 1000 cd/m2
    • Viewing Angle Left/Right:60°
    • Viewing Angle Up: 45°
    • Viewing Angle Down: 10°
    • Backlight Lifetime (Typical): 50,000 Hrs
  •

    AV-30C Installation Manual

    AV-30C Quick Reference Card

    Part # Description

    Price

    Order

    AV-30E AV-30C Multi-Function Display | Certified Digital Precision Attitude and Directional Gyro (experimental)  80mm



    AV-30C
    AV-30C Multi-Function Display | Certified Digital Precision Attitude and Directional Gyro (Certification Pending) 80mm





    Winter Instruments

    Winter Altimeter

    3-pointer altimeter for measuring absolute and relevant flight
    level within range of 0-20 000 feet.
    Indication range:
    item No.: 0-1000-20000 ft
    Scale graduation:
    large pointer:    10 ft
    small pointer:    100 ft
    third pointer:    1000 ft

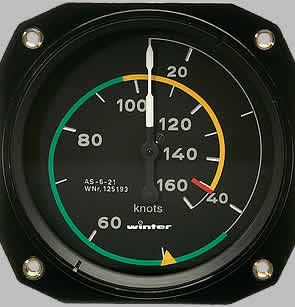

    Winter Airspeed Indicator 80mm

    WI-6423 80mm  0-160 kts

    Developed especially for gliding, the instrument shows airspeed on a 510° spiral scale. Gradations for low and average speeds are greatly enlarged, in order to permit speeds in the ranges of primary interest to be read accurately and with ease.

    Winter Airspeed Indicator 57mm

     WI-7423 57mm 0-160 kts

    Developed especially for gliding, the instrument shows airspeed on a 510° spiral scale. Gradations for low and average speeds are greatly enlarged, in order to permit speeds in the ranges of primary interest to be read accurately and with ease.

    Color markings for Winter Airspeed Indicators.
    Part # Description

    Price

    Order

    4555 Winter Altimeter, Model: 4FGH 40, 20,000 feet, inHg, 3-pointer 57mm

    8 weeks.

    6423 Airspeed Indicator, Model: 6 FMS 423, 80 mm (3 1/8") Range: 0 to 160 knots 510° needle swing zero at 12 o'clock

    8 weeks

    7423 Airspeed Indicator, Model: 7 FMS 423 57 mm (2 1/4") Range: 0 to 160 knots 510° needle swing zero at 12 o'clock

    8 weeks

    6000 Airspeed Color Marking for 57mm & 80mm  (select size at Add to Cart)

    Compass

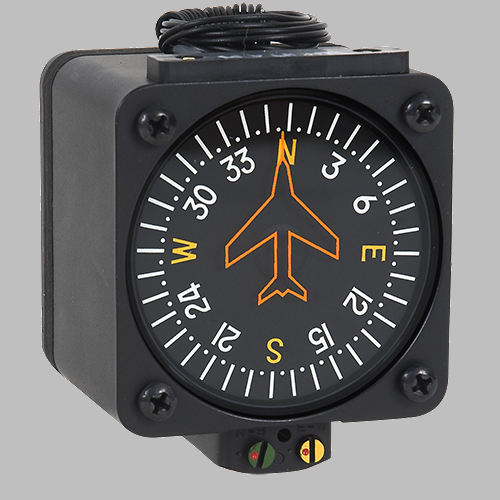

    VERTICAL CARD COMPASS/14V

    Brand: PRECISION AVIATION  57 mm





    The most obvious advantage of

    the PAI-700 Vertical Card Magnetic Compass is the Easy to Steer By

    presentation! With a glance at the aero design lubber line on the lens, you

    see the complete 360 dial in proper relation to your aircraft heading, or the

    reciprocal thereof, presented the way you think. The PAI-700 utilizes eddy

    current damping, no fluid. Overswing is minimized or eliminated. Either

    5Volt, 14Volt, or 28Volt light assembly is furnished. Manufactured

    exclusively by Precision Aviation, Inc., under authorization by the U.S.D.O.T.,

    Federal Aviation Administration citing FAR-21 and TSO C7c Type 1.



    Part #

    Description Price

    80014

    Precision Aviation Vertical Card Compass/ 14V lighting  57mm



    Altimeters

                                      20,000                           35,000

    United Instruments

    • Applicable Specifications: TSO-C10b
    • Case Configuration: 3 inch case (Flange type)
    • Typical Weight: 13 ounces
    • Number of Pointers: 3
    • Barometric Setting: 28.1 to 31.0 inHg
    • Static Pressure Connection: 1/8-27 ANPT
    • Installation: Removable spring nuts and screws
    • 25,000' or 35,000'



    AIR Control Display with Altimeter functions



    Part # Description

    Price

    Order

    1007002 United Instruments Altimeter, Calibrated to 20,000 feet, Kollsman in inHg


    1007007 United Instruments Altimeter Calibrated to 35,000 feet, Kollsman in inHg


    B541 Air Control Display with Altimeter Functions ( ADC Main Unit, microSD Memory card, Preinstalled Altimeter license, Power supply cable)  ETSO

    See for complete Details

      In Stock

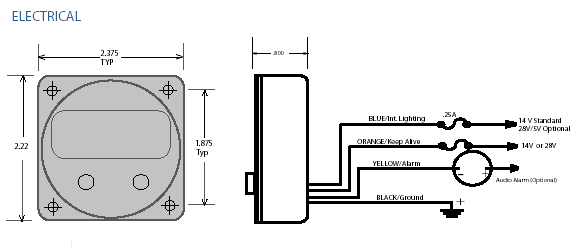

    Davtron  Chronometer




    Davtron M800 Chronometer
    • Two button control system is natural and error free
      Setting operations are identical for both
      alarm and time setting
    • ·Greenwich Mean Time in 24 hour format.
    •  Local Time in 12 hour format
    • Elapsed Time counter, from one second to 99 hours, 59 minutes.
    • Elapsed Time countdown timer, from one second to one hour.
    • Elapsed Time visual alarm activated when countdown reaches zero.
    • Internal Lighting: 100 MA at 14 Volts, 50 MA at 28 Volts.
    • Keep Alive Backup Battery AA, Replace every two years.  Current: .0003 Amps. 14V, .001 Amps.
    • Voltage: 14V
    • Crystal Reference: -40C to +60C .001%





    M800 Brochure

    Part # Description

    Price

    Order

    1007010 Davtron M800 Chronometer  w/Keep Alive Battery  AA  14v lighting.  800-14/BAT




    Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
