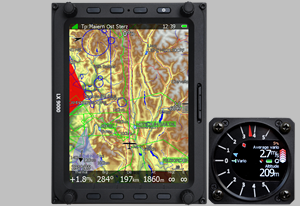

LX90xx

Includes V-Series V8/80


V-series variometers are part of the LX 80xx/90xx systems. The new generation consist of an Inertial platform and a graphical needle instead of a mechanical needle (V9), as a result, the response of the variometer is much faster and more accurate.

1021021 LX 9070 V8/V80 without Flarm

Call for Best Price

1021002 LX 9070D  Repeater Backseat  Wiring, RS485 splitter , vario indicator

Call for Best Price

1021031 LX 9050 V8/V80 without Flarm

Call for Best Price



1041011 LX9050 Club Highest IGC approval, wiring, GPS antenna, SD card, LXNAV V9 vario Club

Call for Best Price

1041012 LX 9050 Simple V9 Vario Module same as LX8000 CLUB without GPS, wiring, SD card, LXNAV V9 vario, GPS cable V7-GPS-IGC Simple

Call for Best Price

1021007

LX 9000 V8/V80  without Flarm

Call for Best Price



1021003 LX 9000D  Repeater Backseat  Wiring, RS485 splitter , vario indicator

Call for Best Price

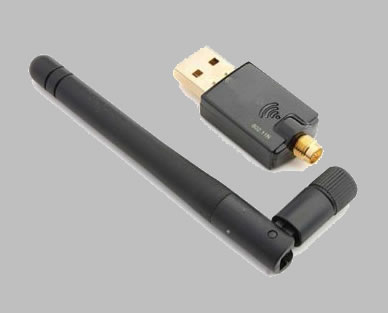

1041021 LXNAV WiFi  for LX80xx & 90xx instruments software and dongle  (Key & link to software will be emailed)
1021043 AHRS Attitude Heading Reference System Requires V9, S8, S80 Vario Module
1021024 V80 indicator Module connects to RS485 Bus (this is not a vario just a 80mm indicator)
1021039 V8 57mm indicator Module connects to RS485 Bus (this is not a vario just a 80mm indicator)
1055040 European Flarm Option for LX80xx, LX90xx (Full & Club versions)

LX 8000

Includes V-Series V8/80


V-series variometers are part of the LX 80xx/90xx systems. The new generation consist of an Inertial platform and a graphical needle instead of a mechanical needle (V9), as a result, the response of the variometer is much faster and more accurate.

1021004 LX 8000 without Flarm  V9 Vario Module Highest IGC approval, wiring, GPS antenna, SD card, LXNAV V8 vario unit and built-in voice module

Call for Best Price

1041007 LX 8000 Club V9 Vario Module Highest IGC approval, wiring, GPS antenna, SD card, LXNAV V9 vario unit Club

Call for Best Price

1041008 LX 8000 Simple V9 Vario Module same as LX8000 CLUB without GPS, wiring, SD card, LXNAV V9 vario, GPS cable V7-GPS-IGC Simple

1021043 AHRS Attitude Heading Reference System Requires V9 Vario Module

Call for Best Price



1021005 LX 8000 Repeater Backseat  Wiring, RS485 splitter , LCD vario indicator

Call for Best Price

1055040 European Flarm Option for LX80xx, LX90xx (Full & Club versions)

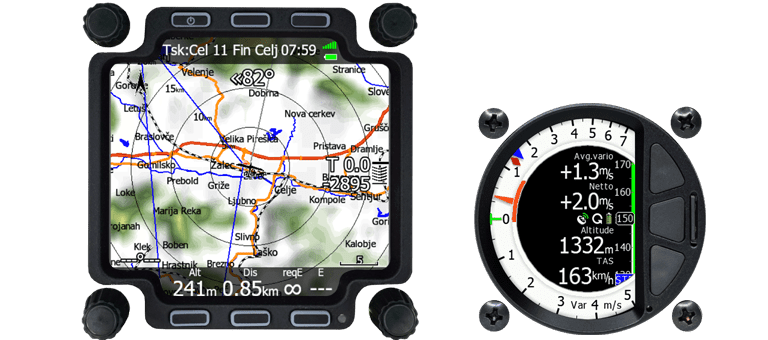

LX 8080

Includes V-Series V8


V-series variometers are part of the LX 80xx/90xx systems. The new generation consist of an Inertial platform and a graphical needle instead of a mechanical needle (V9), as a result, the response of the variometer is much faster and more accurate.

1021013 LX 8080 without Flarm Highest IGC approval, wiring, GPS antenna, SD card, LXNAV V8 vario unit and built-in voice module

Call for Best Price

1041009 LX8080 CLUB Highest IGC approval, wiring, GPS antenna, SD card, LXNAV V9 vario Club

Call for Best Price

1041010 LX8080 SIMPLE same as LX8080 CLUB without GPS, wiring, SD card, LXNAV V9 vario, GPS cable V7-GPS-IGC Simple

Call for Best Price

1021028 LX8080 D (Rear seat repeater) Wiring, RS485splitter, I9 indicator with color screen, analog needle

Call for Best Price

1021015 AHRS Attitude Heading Reference System Requires V9 Vario Module
1055040 European Flarm Option for LX80xx, LX90xx (Full & Club versions)

Accessories

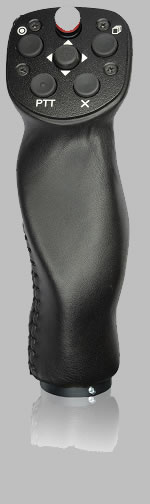

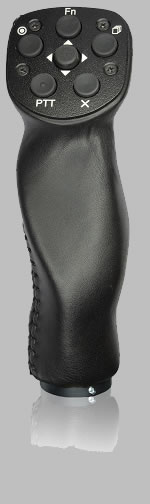

LXNAV remote stick is designed for three different versions.

  • Standard version
  • Shempp Hirth version with red starter button for M gliders

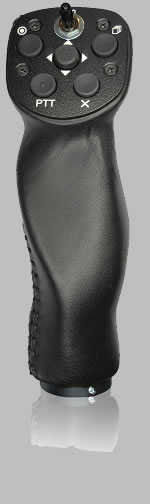

  • EB28 version with trim switch

Standard remote stick is also designed for different diameters of command handles.


  • 19.3mm (DG, LAK),
  • 20mm (SH, LS, Stemme, Apis, EB29),
  • 24mm(Schleicher, Pipistrel Taurus, Alisport Silent, EB28)
  • 25,4mm (JS).

Click to see Stick Functions

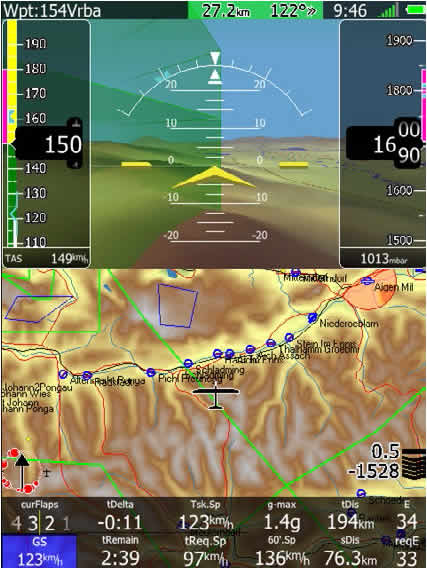

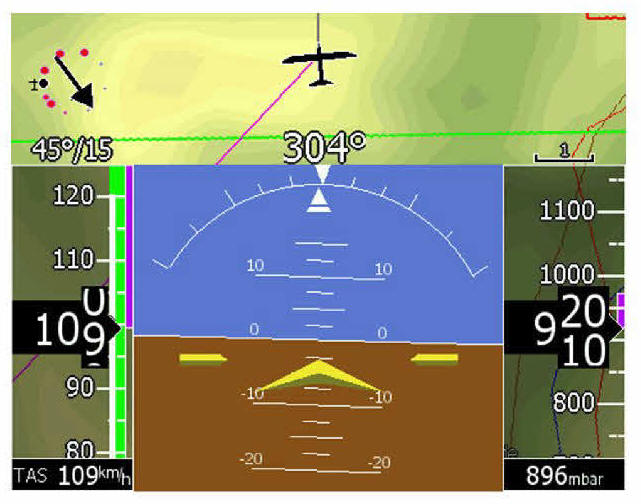

AHRS

  • Altitude Heading Reference System

  • Available for the LX9000, LX8080, LX8000, LX8080

Flap position is calculated from:

  • glider's flaps specification table

  • wing loading(ballast)

  • polar and g-force.

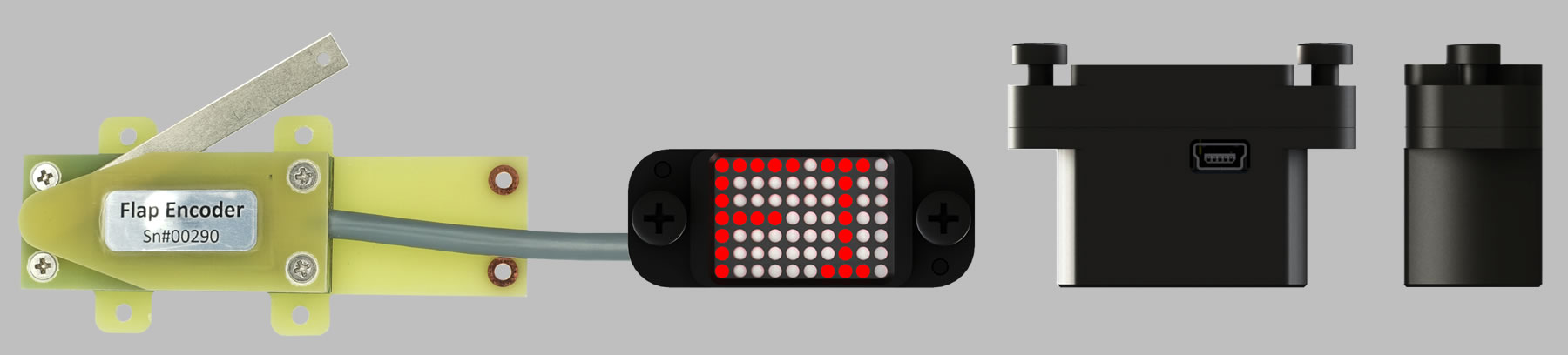

Flap Encoder and Standalone Indicator

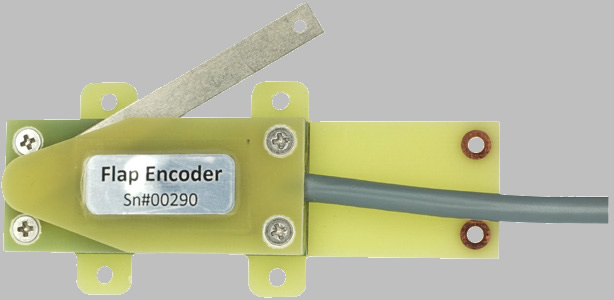

Flap Encoder




  • extremely accurate
  • very small and light
  • RS 485 bus
  • Plug and play to LX 80/90xx systems
  • Installed already in nearly all modern gliders
  • Standalone Indicator available



1021006 Remote control LX8000, LX 9000 Stick, Select version at Add to Cart
1021015 AHRS Attitude Heading Reference System Requires V9 Vario Module
1041019 Flap Encoder LX-FlapEnc for LX9000, LX9050, LX9070, LX8000, LX8080
1055041 Flap Encoder Sensor & Indicator Stand alone



LX Styler

Customization tool for LX8000 and LX9000

LXStyler is a customization tool for the LX8000 and LX9000. With it you can modify existing navigational pages or add new navigational pages. It is possible to choose from 80 different data symbols to suit your needs. You can also change the shape and size of an airplane or remove unnecessary elements.


Free   LXStyler Download

LXSim

Simulator for LX8000 and LX9000 for Windows operating system

LXSim simulator is a fully functional simulator of LX8000 and LX9000, which is working on Windows operating system. You can select and replay any flight stored in IGC file format. Press Ctrl+Enter to enter full screen mode. Click on SD card to insert or remove SD card.
Download from LXNAV site.

Free  LXSIM Download

How to put your area terrain maps in the LXSim

LX 80xx/90xx

LX8080 LX8000 LX9050 LX9000 LX9070
Vario Navigation Systems Standard One No More Compromises Fits Everywhere The Pilot's Choice Even Bigger
LX 80xx/90xx

Unit

LX8080 LX8000 LX9050 LX9000 LX9070

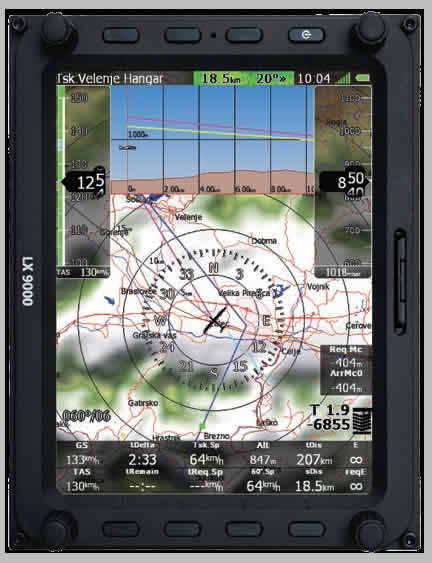

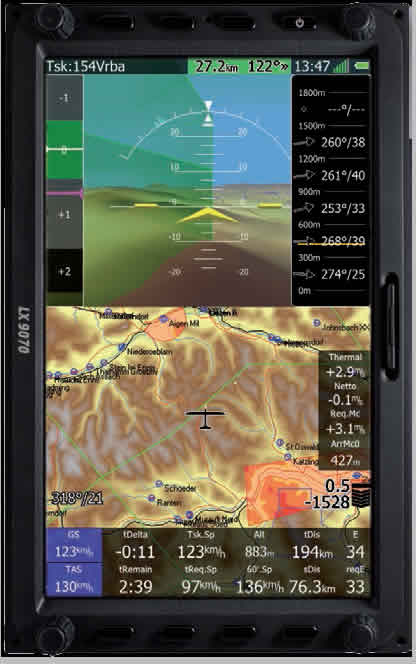

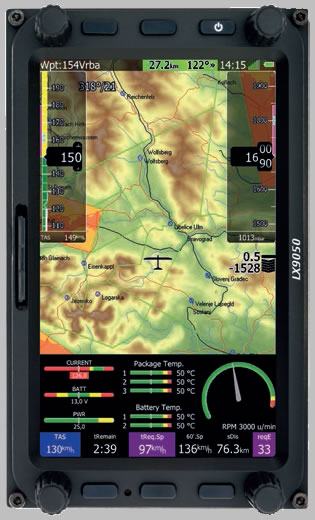

Display 2.8 inch 3.5 inch 5 inch 5.6 inch 7 inch
Brightness 1200 cd 1200 cd 1200 cd 1200 cd 1200 cd
Resolution 320 x 240 px 320 x 240 px 800 x 480 px 640 x 480 px 800 x 480 px
Flarm (Integrated) Optional Optional Optional Optional Optional
IGC recorder Included Included Included Included Included
AHRS Optional Optional Optional Optional Optional
Remote Stick Optional Optional Optional Optional Optional
Weight 400 g 580 g 515 g 650 g 650 g
Size 81 x 81 x 65 mm 98 x 88 x 115 mm 136 x 83 x 61 mm 113 x 145 x 38 mm 113 x 181 x 38 mm
Power 100% Brightness 260mA 390 mA 480 mA 480mA 4800mA
Variometer Included V8 V8 V8 V8 V8
Club/Simple version
Vario inc in Club/Simple ver V9 V9 V9

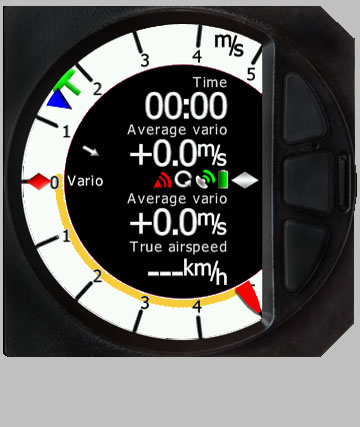

V-Series   Vario indicators Part of the LX80xx/90xx system

Features V9 V8 V80 Not Yet Not Yet




V9

V8

V80

V10

V100

LX80xx/90xx system

Upon request

Included Optional Optional Optional

Size

57 mm 57 mm 80 mm 57 mm 80 mm
Needle Mechanical Graphical Graphical Graphical Graphical
Inertial Platform
Dual Pressure Technology
Flarm Warnings
AHRS indication Not Supported
Ambient light Sensors (ALS)
Flarm Radar
Bluetooth External External
Backup Battery
IGC Flight Recorder
Waypoint Task navigation
Airspace indication Optional Optional



LX 80xx/90xx computer

LXNAV computers for the twenty first century, reliable, accurate and always upgradeable. Aimed at the novice, club and competition pilot.

The software is used across the range of LX 80xx/90xx flight computers as follows: LX 8080 / LX 8000 /

LX 9000 / LX 9050 / LX 9070

The software has the same features supported on all of the devices.

There are also special versions of the software available: Club / Simple

LX8080 / LX8000 / LX9050
  Full Club Simple
V9 Vario Optional
V8 Vario Optional Optional
V80 Vario Optional Optional Optional
IGC approved flight recorder
Built-in GPS
Voice Message
Profile customization with LX Styler
Terrain
Map (roads, water boies, railways town names)
Flarm Module Optional Optional
AHRS Optional Optional (V9 or V80 required)

    Main Software features are:

  •  7 pages (Airport, Waypoint, Task, Setup, Info, Near, Statistics)
  •   Each page can have any number sub-pages which can be personalized via LX Styler
  •  Configurable display layout (nav boxes, colours, sizes...)
  •   Multilanguage user interface
  •   Sound and voice messages supported
  •   Simple conversion from landscape to portrait and vice versa
  •   Smart power management (low power consumption)
  •   Audio equalizer
  •   Preloaded worldwide terrain, maps, airspaces and airports databases
  •   Free database update (Airspaces, Airports)
  •   Integrated flight recorder (also for JET and FES)
  •   Remote stick control supported
  •   Import and export of TP, TSK and (APT)
  •   PDF reader
  •   Easy firmware update via SD card or USB
  •   Grand prix rules and finish ring supported
  •   JDU and FES monitoring
  •   Custom Map terrain colour scheme (Mountains, Flatland)
  •   Near Mode (easy selection of landable fields)
  •   Position Report (useful for ATC)
  •  Plenty of statistics during and after flight

    Main HW features are:

  •   4 rotary knobs
  •   6/8 push buttons (LX9050, LX8080, LX8000=6)
  •   16 GB storage memory
  •   IGC Flight recorder (not in SIMPLE version)
  •   Internal GPS module
  •   Engine noise level sensor (also for JET and electro engines)
  •   Pressure altitude sensor
  •   Automatic backlight regulation
  •   Plug and play to PowerFlarm
  •   Inertial platform for precise wind/vario/ AHRS calculation (in vario unit)
  •   Dual pressure variometer
  •   SD card and USB for data exchange
  •   6 user inputs (VP, SC, Airbrakes, Gear, Flaps, Water)





    HW options:

  •  Integrated Flarm module (option)
  •   Compass module
  •   FES (electro) control unit
  •   JDU – jet control unit
  •   Flap sensor
  •   Flarm indicator (LED or Colour)
  •   Wi-Fi module
  •   Bridge (Radio and Transponder control)
  •   Remote stick
  •   AHRS

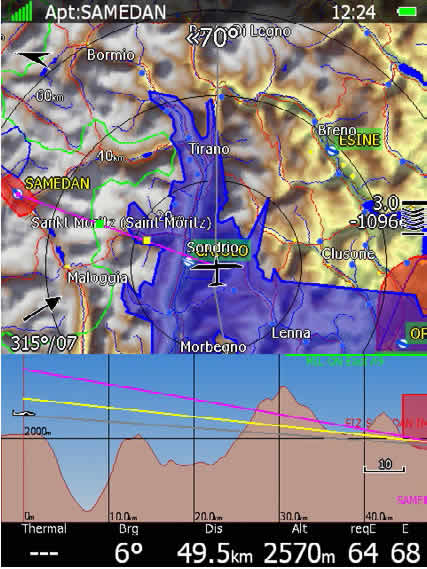

Terrain Side View with glide path and airspaces

Glider range Curve.

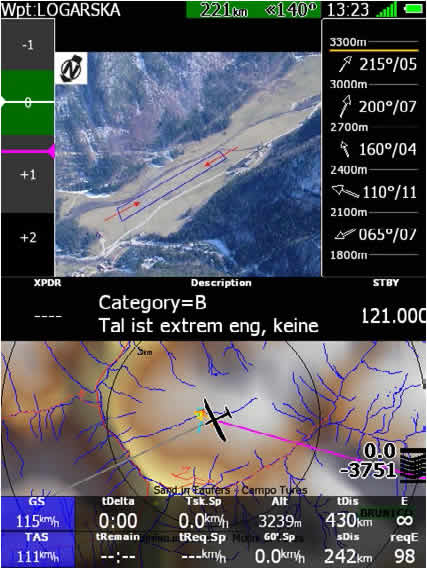

Supported CUPX (waypoints with photos)

Radio and 'Transponder operation supported

Flaps indicator

Wind profile during flight also used for final glide calculation



PAN mode with GO-TO function.

Real-time flight optimization according to FAI and OLC rules.

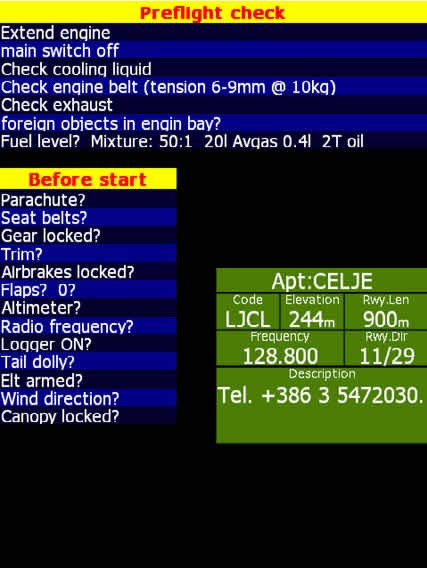

Check list – user configurable.

Speed/Altimeter tape.

Thermal assistant.

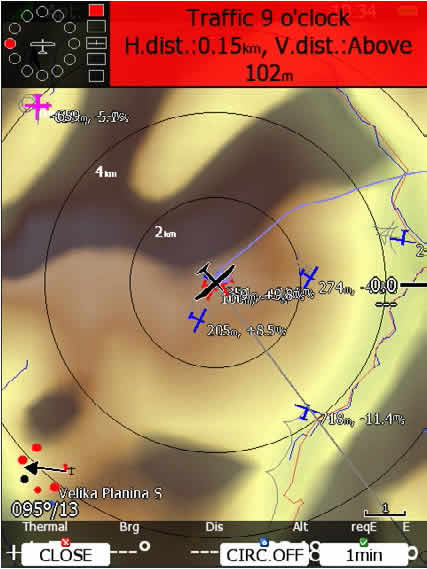

Flarm radar, warnings and Flarm objects overlaid over the map with all details

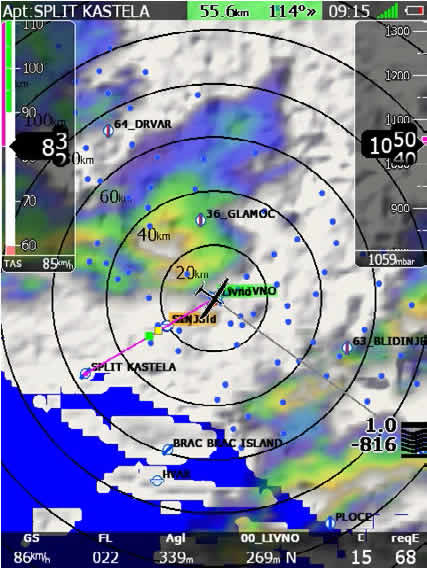

Wi-Fi supported (send an IGC file to an email, real time rain radar, SeeYou Cloud integration, full support for Soaring Spot – download task and upload flight after landing). Weather info during flight (rain radar…).

ICAO map supported.

ICAO map supported.

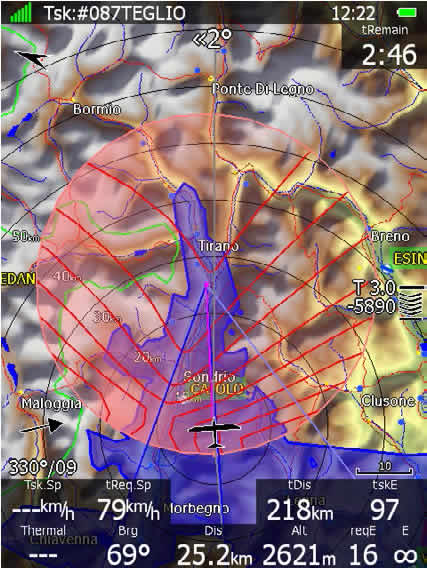

Assigned area task (AAT) – optimum direction for maximum speed.

Assigned area task (AAT) – accurate time calculation and statistics.

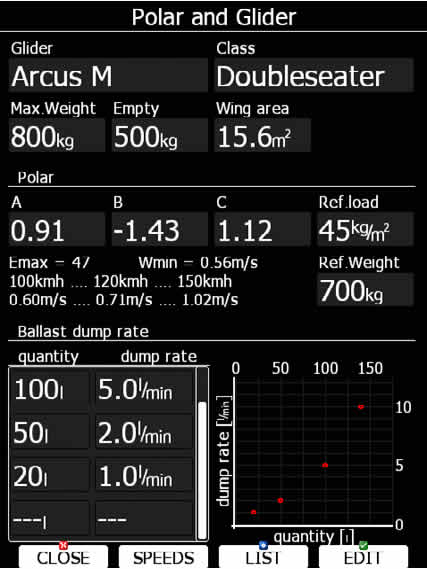

Water dumping – real time measurement.

Pre-loaded polar database.

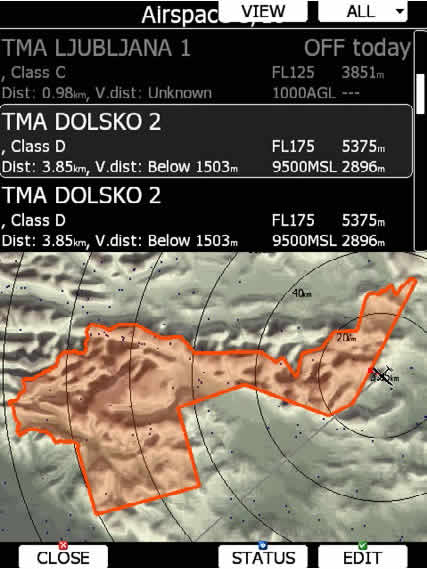

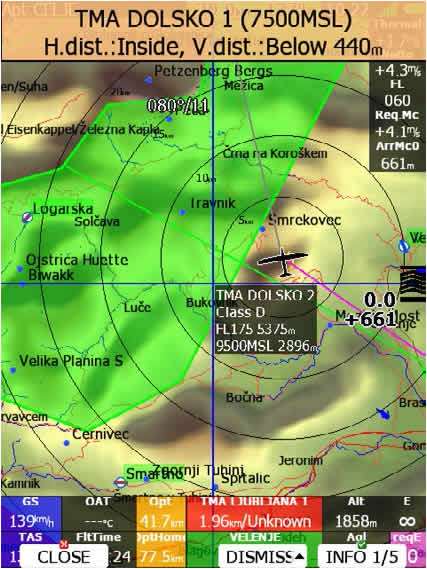

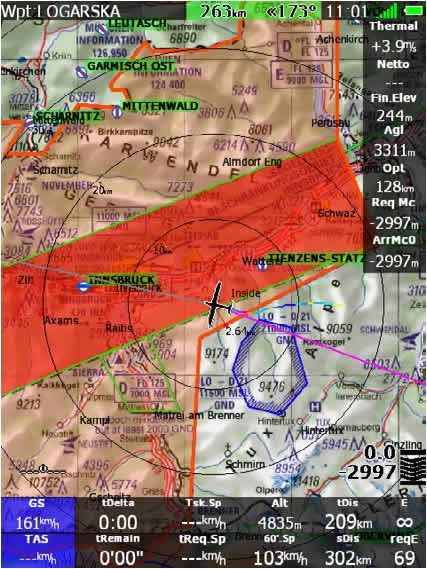

Easy airspace organization.

FAI Triangle assistant.
