Certified Belts and Harnesses

 END Fittings



  • Lap Belt - Sold in pairs
  • Shoulder Harness - sold in pairs
  • Crotch Strap - sold as single belts

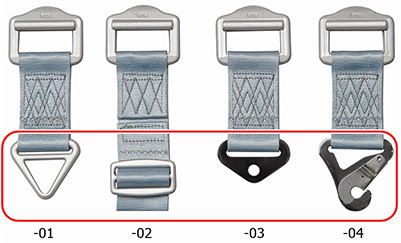

  • The last 2 digits of the part number identify the attachment. See image below.
    • 01 - Triangle up to 8 mm diameter
    • 02 - Open end to loop into seat or fuselage fixed fitting
    • 03 - End fitting with 8 or 10 mm circular hole



    		•

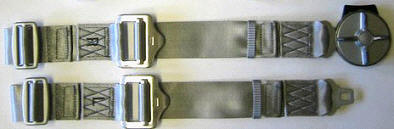

    Part Number Description  Lap Belts

    5201

    		 Lap Belt with Buckle and Triangle Fitting
    The length is double adjustable.  Pulling direction: forward/upward, Use with shoulder harness models 2500 to 2700 and hold down strap models 1300 to 1400.

    Length
    Min: 0.4 m (1.31 feet)
    Max: 1.05 m (3.445 feet)



    Lead time approx 3 weeks

    5202

    		 Lap Belt with Buckle and Open End to Loop into Seat or Fuselage Fixed Fitting
    The length is double adjustable.  Pulling direction: forward/upward, Use with shoulder harness models 2500 to 2700 and hold down strap models 1300 to 1400.

    Length
    Min: 0.4 m (1.31 feet)
    Max: 1.05 m (3.445 feet)



    Lead time approx 3 weeks



    5203

    		 Lap Belt with Buckle and End Fitting with 8 or 10 mm Hole
    The length is double adjustable.  Pulling direction: forward/upward, Use with shoulder harness models 2500 to 2700 and hold down strap models 1300 to 1400.

    Length
    Min: 0.4 m (1.31 feet)
    Max: 1.05 m (3.445 feet)



    Lead time approx 3 weeks



    5302

    		 Lap Belt with Buckle and Open End to Loop into Seat or Fuselage Fixed Fitting - with Leather Plates
    The length is double adjustable.  Pulling direction: forward/upward, Use with shoulder harness models 2500 to 2700 and hold down strap models 1300 to 1400.

    Length
    Min: 0.4 m (1.31 feet)
    Max: 1.05 m (3.445 feet)



    Lead time approx 3 weeks



    5402

    		 Lap Belt with Buckle and Open End to Loop into Seat or Fuselage Fixed Fitting
    The length is double adjustable.  Pulling direction: forward/upward, Suitable for use with shoulder harness models 2500 to 2700 and hold down strap models 1300 to 1400.

    Length
    Min: 0.40 m (1.31 feet)
    Max: 0.95 m (3.12 feet)



    Lead time approx 3 weeks


      Shoulder Harness

    2501

    		 Shoulder Harness with Triangle Fitting
    The length is double adjustable. Use with lap belt models in the 5000 series.

    Length
    Min: 0.60 m (1.97 feet)
    Max: 0.90 m (2.95 feet)



    		Pick at  Lap Belt

    Add to Cart

    $150

    2603

    		 Shoulder Harness with End Fitting with 8 or 10 mm Hole
    The length is single adjustable.  Use with lap belt models in the 5000 series.

    Length
    Min: 0.45 m (1.48 feet)
    Max: 0.95 m (3.12 feet)



    		Pick at  Lap Belt

    Add to Cart



    $150

    2700

    		 Shoulder Harness with Open End to Loop into Seat or Fuselage Fixed Fitting
    The length is double adjustable.  Suitable for use with lap belt models in the 5000 series.

    Length
    Min: 0.25 m (0.82 feet)
    Max: 0.95 m (3.12 feet)



    		Pick at  Lap Belt

    Add to Cart



    $150
      Hold Down Straps

    1301

    		 Hold Down Strap with Triangle Fitting
    The length is single adjustable.  Suitable for use with lap belt models in the 5000 series.

    Length
    Min: 0.20 m (0.66 feet)
    Max: 0.50 m (1.64 feet)



    		Pick at  Lap Belt

    Add to Cart



    $90

    1303

    		 Hold Down Strap with End Fitting with 8 or 10 mm Hole
    The length is single adjustable.  Suitable for use with lap belt models in the 5000 series.

    Length
    Min: 0.20 m (0.66 feet)
    Max: 0.50 m (1.64 feet)



    		Pick at  Lap Belt

    Add to Cart



    $90

    1402

    		 Hold Down Strap with Open End to Loop into Seat or Fuselage Fixed Fitting
    The length is double adjustable.  Suitable for use with lap belt models in the 5000 series.

    Length
    Min: 0.20 m (0.66 feet)
    Max: 0.50 m (1.64 feet)



    		Pick at  Lap Belt

    Add to Cart



    $90


    Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
    Craggy  Aero LLC, 3901 River Court, Hornbrook,  CA 96044
    Policies
    International Shipping by US Postal Service  Express, Priority Mail International or FEDEX
    Many credit cards charge 3% international transaction fees. International Customers can save this expense by paying by EFT or wire transfer.
    Please email Craggy Aero the order and we will send you an invoice with the transfer information.
