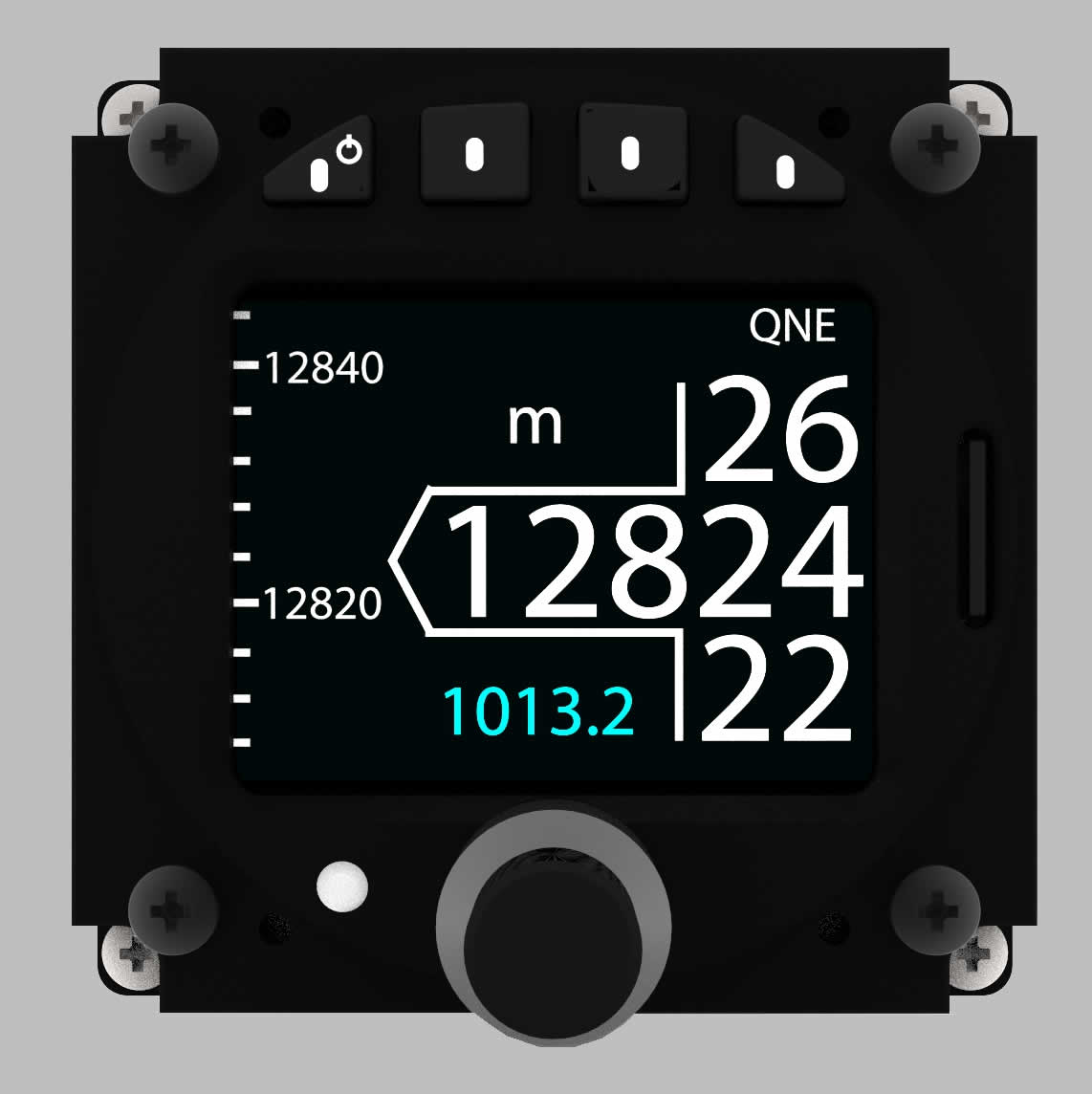

AIR Control Display with Altimeter functions

Fully ETSO certified altimeter.

AIR Control Display is a fully ETSO certified primary altimeter. It is an easy to read altimeter with really large numbers and perfect reliability, especially in high vibration environments like helicopters, old powered aircraft, or self launching motorgliders.

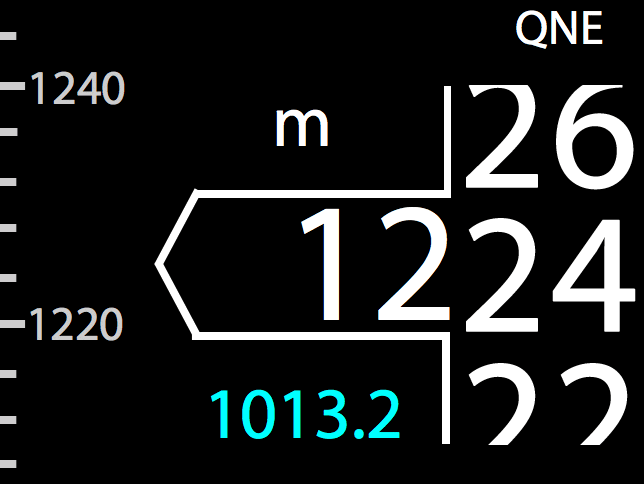

It's tape-style moving digits and its fine altitude resolution give you a great feeling of the current vertical rate. Additionally, its solid state technology is very reliable.

ACD is the ETSO Altitude Source for the TT22 Transponder/ADSB

Minor Change Approval for almost all Aircraft

AIR Control Altimeter Multifunctional Display

Air Control Display

The AIR Control Display is a newly developed multifunctional display. It has a robust hardware, a sunlight readable display and unique functions. The AIR Control Display works with various radios and  Mode-S transponders. It is an ETSO approved altimeter, can control radios and transponders or even both at the same time.

• Saves Space in the Panel 3 functions from one 57mm control display.
• Fully TSO Altimeter
• Controls Trig TT22 Transponder
• Controls Trig TY91 Transceiver
• One two or 3 functions.
• All from 1 57mm Display
• Uses 485 BUS

Top of the class display.

ACD-57 features the industry's largest display area in a 57mm control head. Its stunning color screen is perfectly readable in bright sunlight. Yet it draws very little power. The design has been developed and tested to comply to strict aviation standards for multi function displays.

Highlights

• Shows altitude. Optionally controls COM and XPDR (future functions) . All functions can be used simulatenously or in any combination.
• Fully ETSO certified altimeter
• Brilliant large color display, perfectly readable in sunlight
• Simple, intuitive controls
• microSD slot for firmware updates
• Units are selectable

In the Box

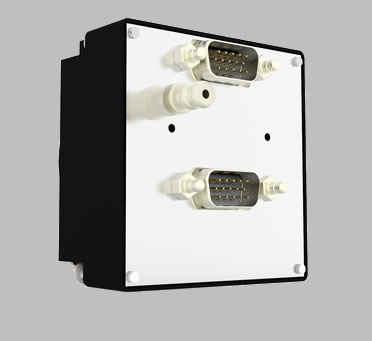

• ACD-57 main unit including static port adapter
• Mounting screws
• Documentation
• microSD Memory Card
• Preinstalled altimeter license

Parts needed

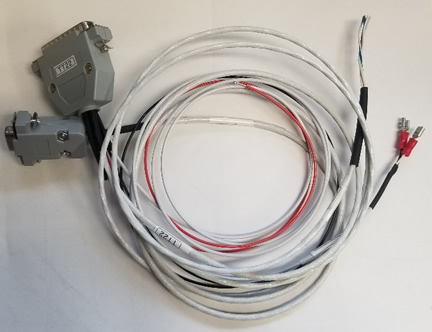

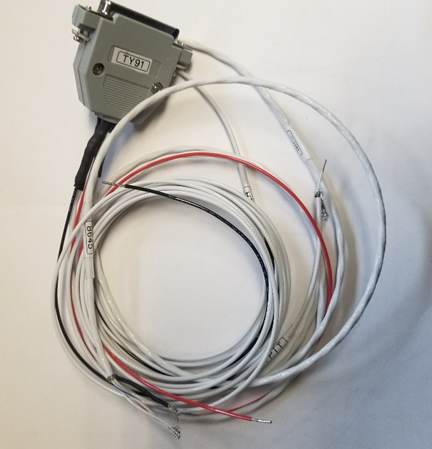

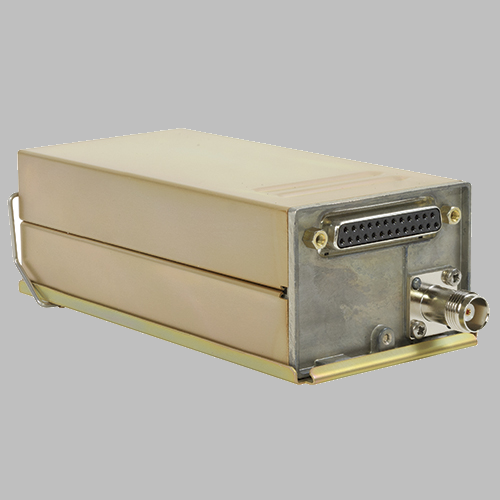

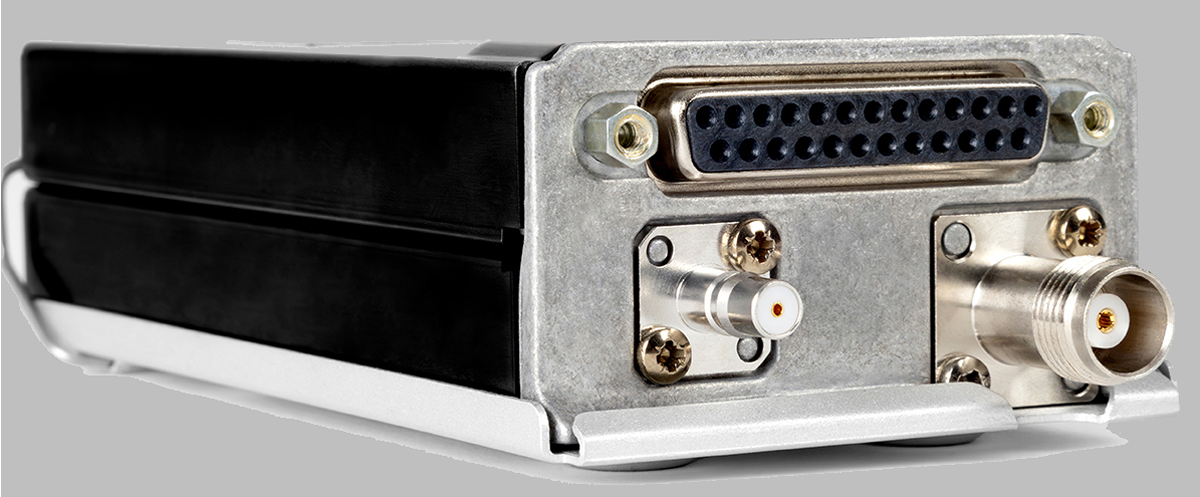

• B541, TT22R485C, TT22R and/or TY91R, TN72 ADSB, Wiring harnesses for each, Function control Licenses

SEE B747 Below for Pricing

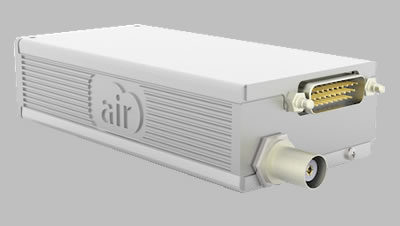

AC-1

AIR COM is our next-generation radio with 8.33kHz channel spacing. It offers many new functions like an audio equalizer, GPS-based frequency selection, or controlling our mode-S transponder. The radio is very compact and easy to install. It is the smallest and lightest fully certified radio on the market today. The simple operation and meaningful functionality help to reduce our cockpit workloads.

Display and usage

The radio is one of the most used instruments during flight. Still, today most radios feature small displays and often a cumbersome operation. AIR COM has the largest display in its class and simple, robust controls that are perfectly usable even in turbulence or with gloves. The color display performs extremely well in sunlight and shows all information large and clear. Letters and numbers are significantly larger than in current radios.

Audio

AIR COM uses modern audio technology. The equalizer allows for the first time to improve clarity by adjusting the sound output. The digital design also makes a broad variety of functions possible, like intercom, audio mixing, or individual adjustments to sound input and output.

Fully ETSO certified altimeter. ACD is the ETSO/TSO  Altitude Source for the TT22 Transponder/ADSB

In Stock

In Stock

In Stock

Save $200 on the Bundle

USA Only

In Stock

Fully ETSO certified altimeter.

In Stock

ACD replaces TT22 Transponder TC20 controller and TY91 Transceiver TC90 Controller. Licenses below required for the ACD

Only need one B541 ACD and one B645 for control of Transceiver and Transponder.

In Stock

In Stock

In Stock

In Stock

In Stock

To confirm correct operation while sitting on ground, turn the transponder mode knob to alt and the display should say grd, then you can increase pitot pressure to above the stall speed setting and the transponder display will switch to alt.  If you fly in wave without this switch your ground speed may be very low and ATC will think you are on the ground.

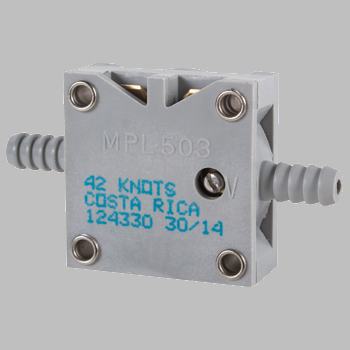

AIR PRESSURE SWITCH/Normally open, 42 knots, adjustable.  AS switch pneumatic connection

      MPL503

In Stock

GPS Active Antenna QMA Connector

Required for TN72

        GPSAntenna QMA

In Stock

Fully ETSO certified altimeter.

In Stock

ACD replaces TT22 Transponder TC20 controller and TY91 Transceiver TC90 Controller. Licenses below required for the ACD.

Only need one B541 ACD and one B645 for control of Transceiver and Transponder.

In Stock

In Stock

In Stock

In Stock
