Air Data Indicator

ADI

Air Data Indicator 57mm

In Stock

ADI80

Air Data Indicator 80mm

In stock

S3BUPAC

Craggy Aero S3/ADI Backup Battery Pack Holds 8 AA batteries ON-OFF Panel switch will power the V3/ADI for approx 15 hrs.

Switch has 2 positions Main Glider battery, Backup battery.

In Stock

G80

G-Meter 80mm size, G-force with (Option Flight Recorder logbook) power supply cable. Select Options at Add to Cart

4 to 6 weeks

G57

G-Meter 57mm size, G-force with (Option Flight Recorder logbook) power supply cable. Select Options at Add to Cart

4 to 6 weeks

AirData Indicator

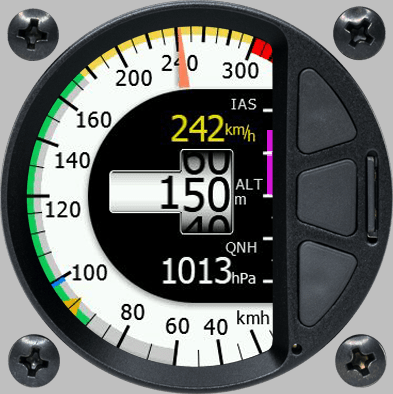

Standalone digital airspeed and altitude indicator (ADI).

Indicates airspeed, altitude and vertical speed with an integrated high precision digital pressure sensors. The unit has standard dimension of 57 mm diameter.

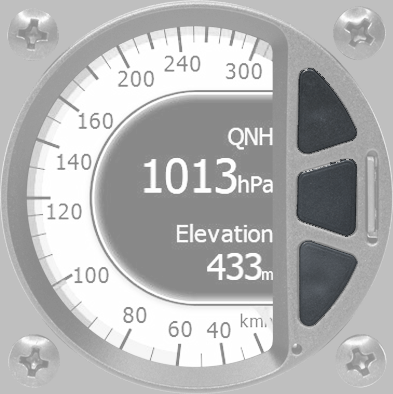

3 Push Buttons. SD Card.

Used to change QNH and to setup device. Micro SD card for software update and for easy transfer of device settings.

CUSTOMIZE EVERYTHING.

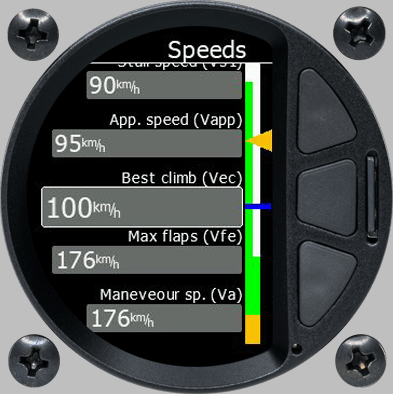

ADI supports customisation of the speed scale including Vne speed as function of altitude. Intuitive user interface also allows to set calibrated airspeed, temperature offset, vertical speed filters and many other adjustments.

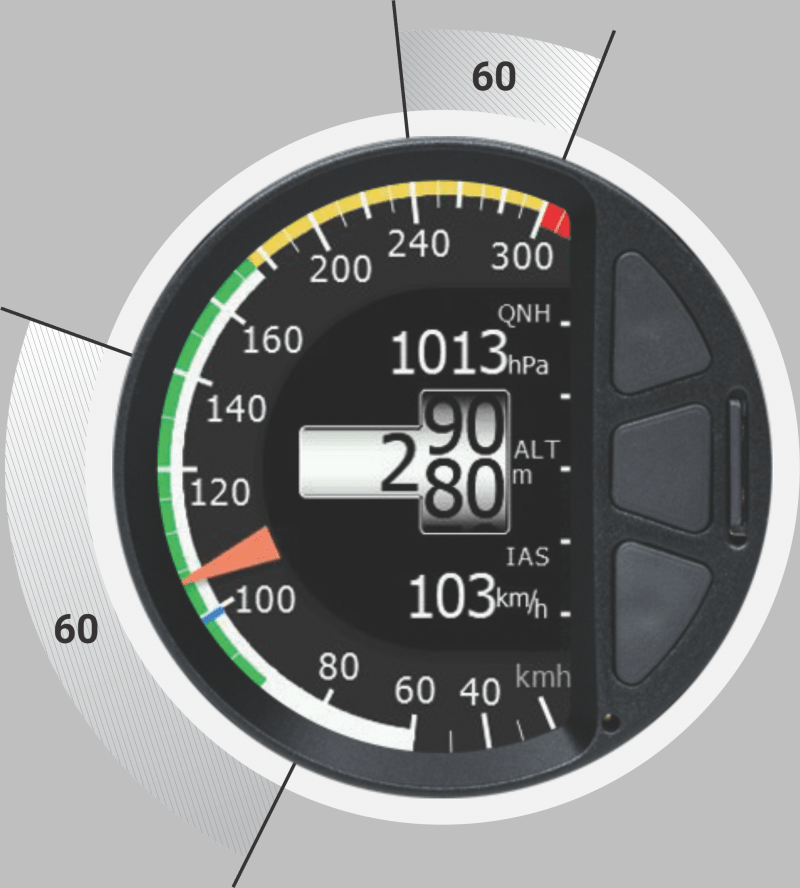

CUSTOM SPEED SCALE

DISPLAY.

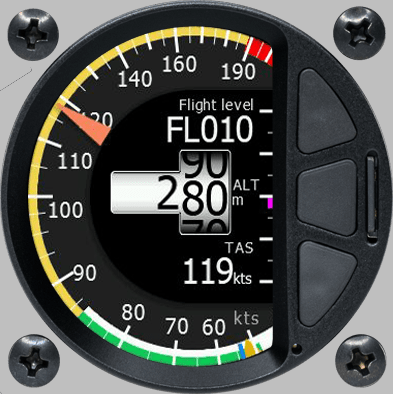

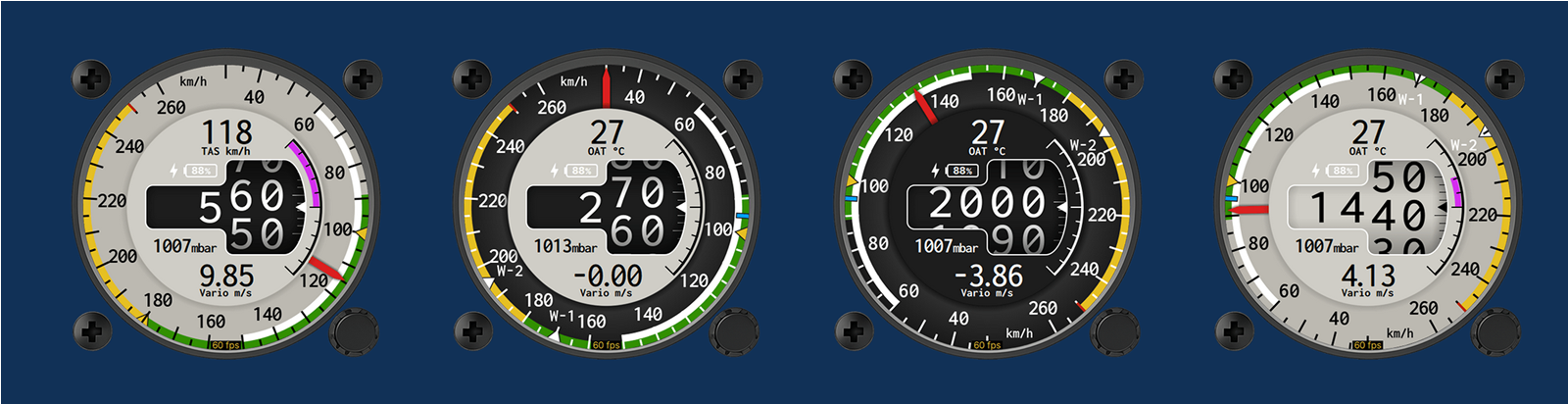

Realtime data is displayed on a QVGA 320×240 pixel 2.5-inch high brightness colour display. Choose between light and dark mode and different needle sizes.

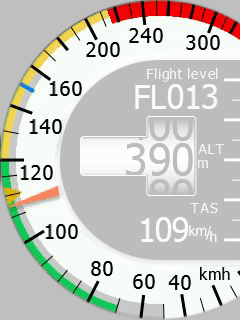

NON-Linear scale allows more precise speed readout at thermaling speeds.

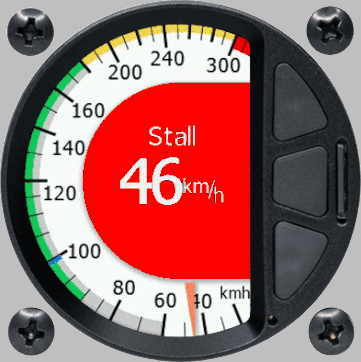

WARNINGS.

Never be caught off guard with full screen stall, over speed and altitude warnings.

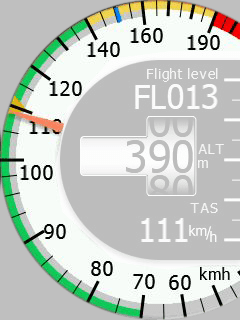

VNE – ALTITUDE DEPENDANT

VNE indication is automatically adjusted based on your altitude.

G-meter

Intuitive standalone digital G-meter with built-in Flight recorder!

Standalone G-meter indicates and logs g-forces with an integrated high precision digital pressure sensor and inertial platform. The unit has standard dimension of 57 mm diameter.

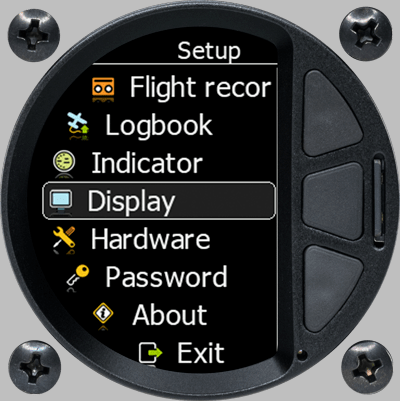

3 Push Buttons. SD Card.

Used for a simplified handling during the flight or ground operations. Micro SD card for data exchange (SW update and Flight downloads).

DISPLAY.

Real Time Data is displayed on a QVGA 320×240 pixel 2.5-inch high brightness colour display.

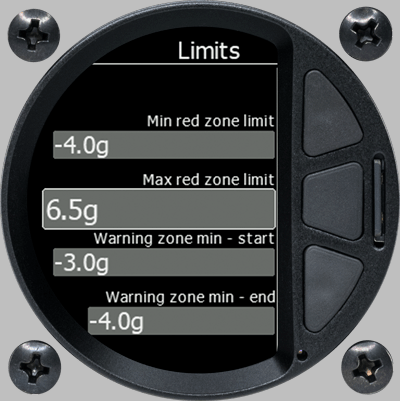

INERTIAL PLATFORM. LIMITS.

Inertial platform with +-16g accelerometer. Device is showing current g-load in navbox/needle and it’s min-max values in bar. Last flight min/max load navboxes are persistent till next flight. Min/Max limits with Warning zones can be defined.

MicroSD Card. Ambient Light Sensor.

MicroSD card socket for data exchange and ALS for energy saving.

LOGBOOK.

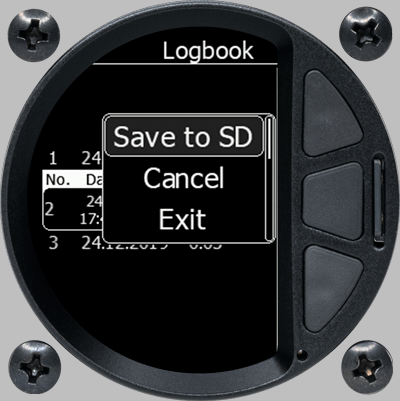

The logbook menu displays the list of flights. If the RTC time is set properly the take-off and landing time shown will be correct. Each flight item consists of the maximum positive g-load, the maximum negative g-load from the flight and the maximum IAS. This function is available only with “FR” version.

Air Data Indicator

AirData Indicator

Standalone digital airspeed and altitude indicator (ADI).

Indicates airspeed, altitude and vertical speed with an integrated high precision digital pressure sensors. The unit has standard dimension of 57 mm diameter.

3 Push Buttons. SD Card.

Used to change QNH and to setup device. Micro SD card for software update and for easy transfer of device settings.

CUSTOMIZE EVERYTHING.

ADI supports customisation of the speed scale including Vne speed as function of altitude. Intuitive user interface also allows to set calibrated airspeed, temperature offset, vertical speed filters and many other adjustments.

CUSTOM SPEED SCALE

DISPLAY.

Realtime data is displayed on a QVGA 320×240 pixel 2.5-inch high brightness colour display. Choose between light and dark mode and different needle sizes.

NON-Linear scale allows more precise speed readout at thermaling speeds.

WARNINGS.

Never be caught off guard with full screen stall, over speed and altitude warnings.

VNE – ALTITUDE DEPENDANT

VNE indication is automatically adjusted based on your altitude.

G-meter

Intuitive standalone digital G-meter with built-in Flight recorder!

Standalone G-meter indicates and logs g-forces with an integrated high precision digital pressure sensor and inertial platform. The unit has standard dimension of 57 mm diameter.

3 Push Buttons. SD Card.

Used for a simplified handling during the flight or ground operations. Micro SD card for data exchange (SW update and Flight downloads).

DISPLAY.

Real Time Data is displayed on a QVGA 320×240 pixel 2.5-inch high brightness colour display.

INERTIAL PLATFORM. LIMITS.

Inertial platform with +-16g accelerometer. Device is showing current g-load in navbox/needle and it’s min-max values in bar. Last flight min/max load navboxes are persistent till next flight. Min/Max limits with Warning zones can be defined.

MicroSD Card. Ambient Light Sensor.

MicroSD card socket for data exchange and ALS for energy saving.

LOGBOOK.

ANALYSE.

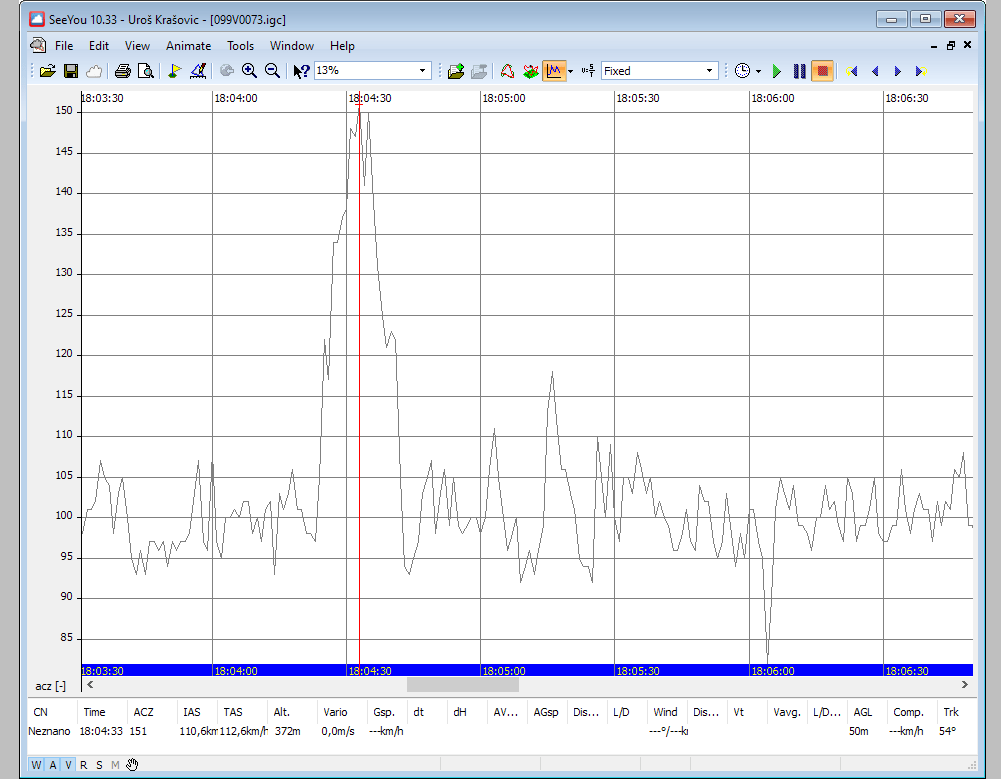

Every detail of you flight can be analysed on PC. Use the SeeYou software
