EDS O2D1  Single Place
DUAL O2D1 Kits with Split Kit.
EDS Oxygen System with Aluminum Cylinders
EDS Oxygen System with Composite Cylinders


How Pulse Demand Works

The patented MH EDS (Electronic Delivery System) is a one (O2D1)  or two-user (O2D2) aviation oxygen delivery device. It is designed to deliver aviation oxygen in the most efficient, comfortable and convenient way possible. With its user-selectable settings, apnea alarm and small size, the MH EDS  is the most portable and flexible electronic digital oxygen delivery system in the world. By providing a measured pulse of oxygen every time you breathe in, the MH EDS supplies the oxygen you need to stay alert and comfortable while flying. In contrast to constant flow systems that waste oxygen by supplying more than your body can use, the MH EDS provides a short pulse of oxygen as you inhale, ensuring that your oxygen is used most efficiently. Efficient oxygen delivery means you can fly further on a single oxygen refill or save space and weight with a smaller tank. It also makes it more feasible to enjoy the advantages of oxygen while flying below the altitudes where oxygen is mandated-- that can mean fewer headaches, increased alertness, and feeling less exhausted when you reach your destination. Your actual oxygen usage will be determined by your breathing rate and physiological needs at altitude. The programmability of the  MH EDS means that, unlike constant-flow oxygen systems, you can “set it and forget it”. By automatically detecting your pressure altitude, the MH EDS can be set to start providing oxygen immediately or at a specified altitude and will automatically adjust the oxygen flow as your altitude changes. When you're flying, don't you have more important things to do than adjust your oxygen flow during altitude changes?

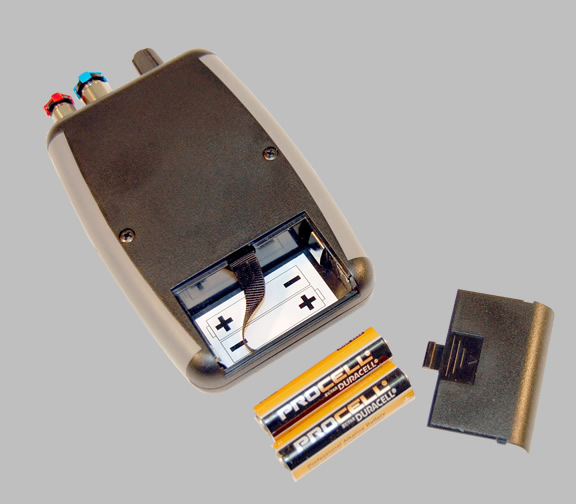

                                                                   The unit operates for up to 100 hours on two AA batteries

Mountain High Oxygen is pleased to announce the release of our next generation of EDS (Electronic Delivery System) Pulse Demand oxygen controllers, the O2D1-2G and O2D2-2G.

These changes are common to both the O2D1 and O2D2 family of EDS.

Our new Pulse Demand systems still incorporate all of the benefits of our legacy controllers but with many improvements. Like the series of the old VW Beetle, it's the same, but better.

We started with the control switch: The EDS unit now incorporates a MIL spec ruggedized easy-to- grip rotary control switch providing improved reliability, increased ease of function and visibility. This switch also has very positive position detents for excellent tactile feedback making it resistant to changes from causal rubbing or bumping.

While we were at it, we improved the manifold design to allow for better breathing response and effort tracking. This combined with a new circuit board, as well as a new micro-controller, gives improved power-conserving operations with even less RFI emissions, better respire-metric tracking and dispensing of oxygen in finer resolution resulting in smoother steps from altitude and breathing changes.

Other improvements include a dedicated bi-color system battery status light allowing much easier monitoring and definitive indication of battery condition without being confused as a station operation. The original O2Dx units encoded the low battery notification into the station lights. This status light also responds to each control switch change with a beep and green flash to confirm your actions. Also the audio alerts and warnings are louder, more crisp and dynamic to human hearing in an effort of being heard over modest cabin noise. The O2D2 has a 600 Ohm stereo external audio jack as well as a USB compatible (5VDC) external power port.

More intuitive F-Mode settings labeled as 1, 2, 3 & 4 for use with face masks or when more oxygen is required.

File Description File size
CAMI Testing of Pulse Oxygen Systems   1812 Kb
Cylinder Chart 06/25/14 190 Kb
EDS-O2D1, O2D2 Manual 4/5/2012 1479 Kb
O2D1-O2D2 Maintenance Questions 11/15/2012 340 Kb
O2D1 Dimensions   31 Kb

 EDS O2D1  Single Place

Part Number

Description



Price

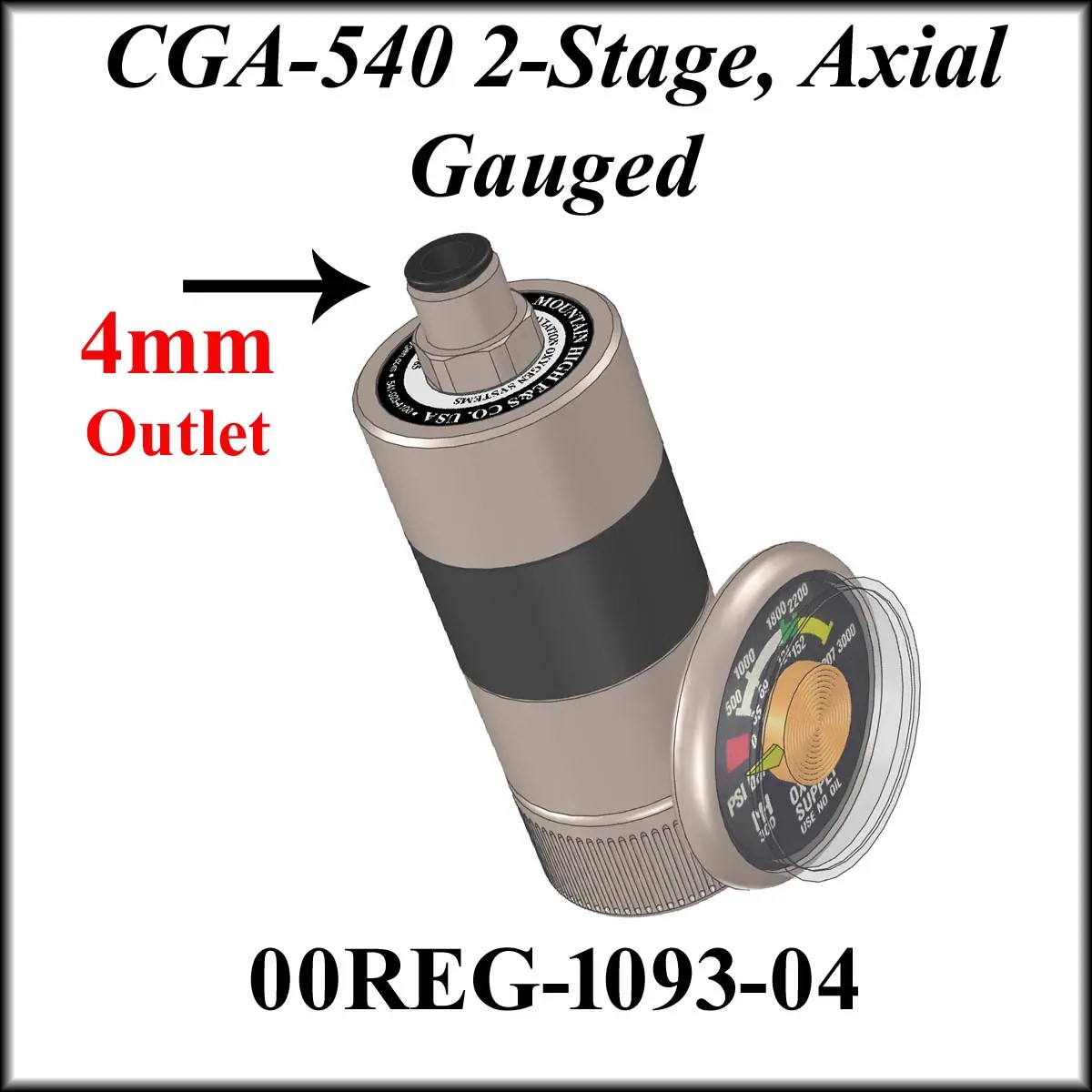

00REG-1093-04 CGA-540 Guaged Regulator 2 Stage Axial Regulator with 4mm Outlet

2 Stage Axial Regulator Specifications



The dual stage regulator allows the useful pressure of a cylinder
to be spent down to about 10 psi above the regulating pressure.
This will still yeild the specified flow rate for the application while
maintaining specified pressure and flow requirements.  This means you can almost empty your oxygen bottle to approx 30psi.  Instead of 400 to 500 psi.

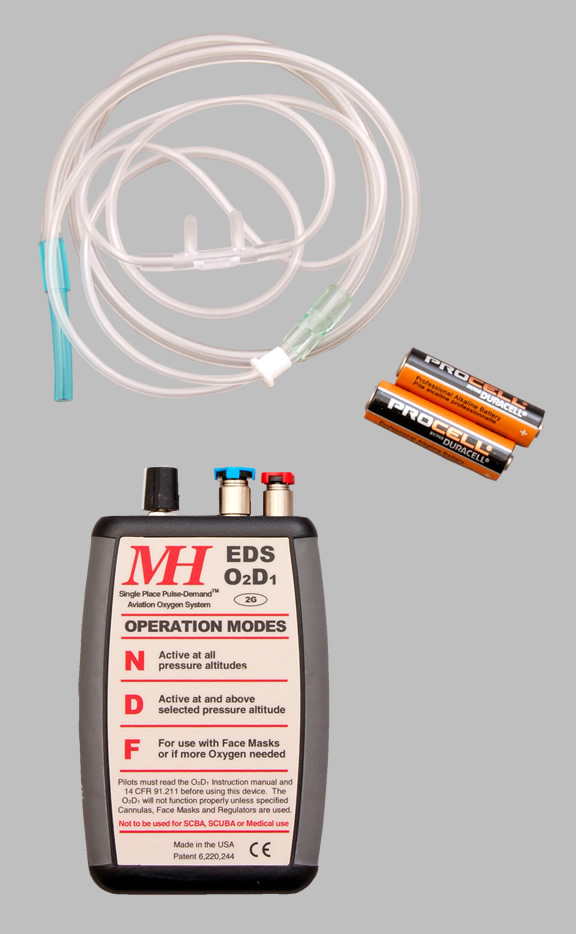

00EDS-1200-00 EDS-O2D1-2G Kit
without regulator  The O2D1-2G kit comes with (2) AA batteries and 2 cannulas (1 Standard and 1 Flare-Tip)  and 1 face mask in a handy carry bag.

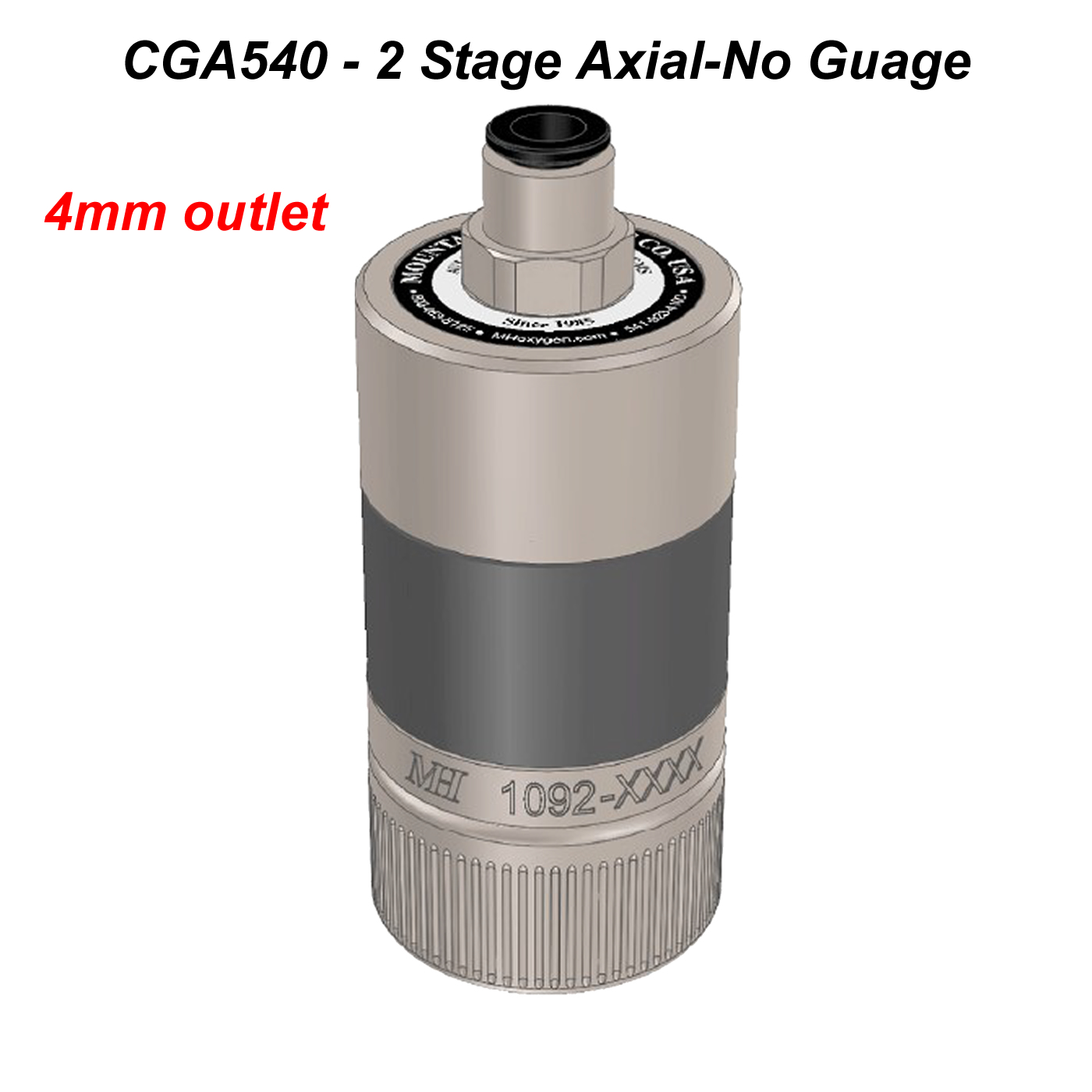

00EDS-1057-00 O2D1 w/2-Stage CGA-540 X 4mm Reg-no guage The dual stage regulator allows the useful pressure of a cylinder to be spent down to about 10 psi above the regulating pressure. This will still yeild the specified flow rate for the application while maintaining specified pressure and flow requirements.  This means you can almost empty your oxygen bottle to approx 30psi.  Instead of 400 to 500 psi.



00EDS-1059-00 O2D1 w/2-Stage CGA-540 X 4mm Reg-Guaged The dual stage regulator allows the useful pressure of a cylinder to be spent down to about 10 psi above the regulating pressure. This will still yeild the specified flow rate for the application while maintaining specified pressure and flow requirements.  This means you can almost empty your oxygen bottle to approx 30psi.  Instead of 400 to 500 psi.

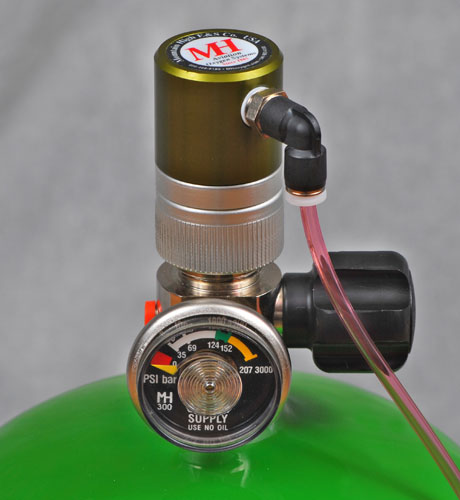

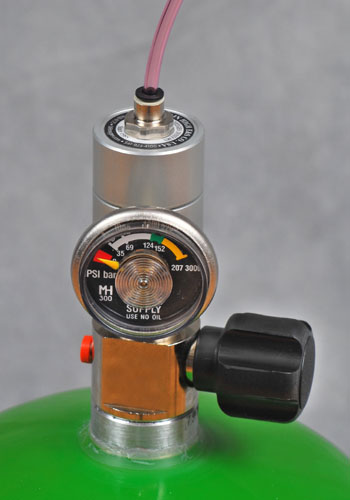

00EDS-1052-00 EDS-O2D1-2G with XCR-540 regulator. The O2D1 kit comes with (2) AA batteries and 2 cannulas (1 Standard and 1 Flare-Tip)  and 1 face mask in a handy carry bag.






00EDS-1054-01 EDS-O2D1-2G with XCR-540 regulator with gauge. The O2D1 kit comes with (2) AA batteries and 2 cannulas (1 Standard and 1 Flare-Tip)  and 1 face mask in a handy carry bag.


DIN-477 Kits European Standard

00EDS-1062-02 EDS-O2D1-2G with XCR DIN-477 (Euro Inlet) Regulator with gauge. The O2D1 kit comes with (2) AA batteries and 2 cannulas (1 Standard and 1 Flare-Tip)  and 1 face mask in a handy carry bag.

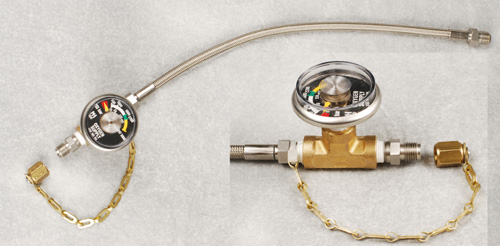

00BLT-1016-xx Flex-Fill Port w/ Remote Pressure Gauge.

A favorite amongst glider pilots. This 1/8 NPT fitting will screw into any of our pressure regulators that have a gauge port.
The cylinder may now be serviced and pressure monitored from a remote location.



Select flex cable length at Add to Cart











DUAL O2D1 Kits with Split Kit.

00EDS-1054-02
(2) EDS-O2D1-2G with XCR-540 Regulator w/gauge. 2 place w/ split kit
Great set-up for tandem Sail-planes or any tandem Aircraft



00EDS-1061-00

(2) EDS-O2D1-2G with XCR DIN-477 (Euro Inlet) Regulator w/gauge. 2 place w/ split kit.
Great set-up for tandem Sail-planes or any tandem Aircraft

DUAL O2D1 Kits for FPR Regulator.

00EDS-1046-02

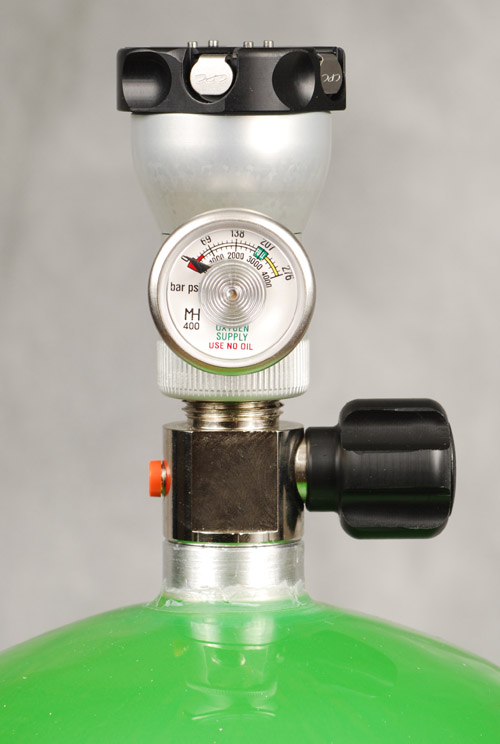

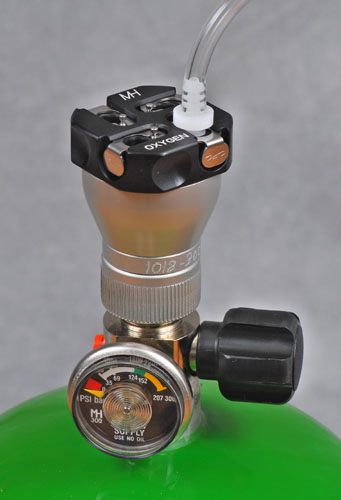

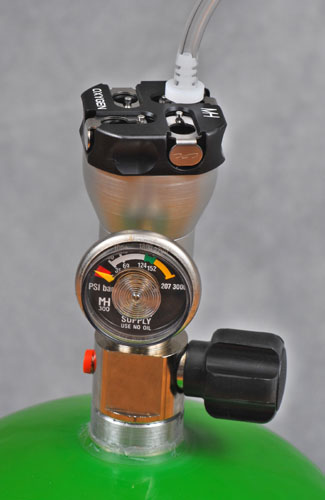

(2) EDS-O2D1-2G with FPR-540 regulator . 2 place.
Great set-up for tandem Sail-planes or any tandem Aircraft





00EDS-1055-00 (2) EDS-O2D1-2G with FPR-540 regulator w/gauge. 2 place.
Great set-up for tandem Sail-planes or any tandem Aircraft





00EDS-1060-00 (2) EDS-O2D1-2G with FPR-DIN regulator w/gauge. 2 place.
Great set-up for tandem Sail-planes or any tandem Aircraft

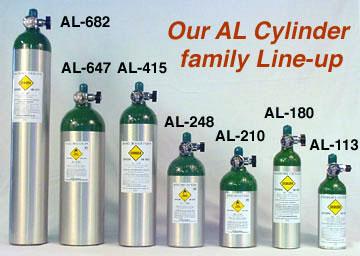

EDS  Electronic Pulse Demand Oxygen System with Aluminum Cylinders

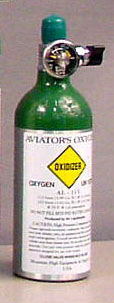

00EDS-0052-01 EDS-O2D1-2G with AL-113 Aluminum cylinder and XCR-540 regulator with holster
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-113 153 2216 113 4.0 8.1 3.20 21 8.3 .81 1.7 6.9 3.4 2.6 1.8 1.2

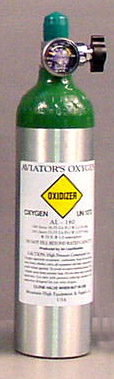

00EDS-0053-01 EDS-O2D1-2G with AL-180 Aluminum cylinder and XCR-540regulator with holster
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-180 153 2216 165 5.8 8.1 3.2 30 11.8 1.2 2.7 10.1 4.9 3.8 2.6 1.7



00EDS-0054-01 EDS-O2D1-2G with AL-180 Aluminum cylinder and XCR-540 regulator with full pack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-180 153 2216 165 5.8 8.1 3.2 30 11.8 1.2 2.7 10.1 4.9 3.8 2.6 1.7



00EDS-0054-02 (2) EDS-O2D1-2G 2-place system with AL-180 Aluminum cylinder and FPR-540 regulator.with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-180 153 2216 165 5.8 8.1 3.2 30 11.8 1.2 2.7 5 2.8 1.9 1.3 .85



00EDS-0054-D1 EDS-O2D1-2G with AL-180 Aluminum cylinder and XCR-DIN-477 regulator. with fullpack

Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-180 153 2216 165 5.8 8.1 3.2 30 11.8 1.2 2.7 10.1 4.9 3.8 2.6 1.7

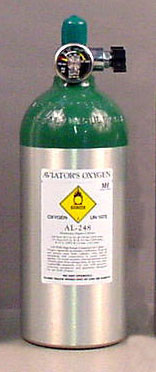

00EDS-0058-01 EDS-O2D1-2G with AL-248 Aluminum cylinder and XCR-540 regulator with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-248 139 2015 248 8.8 11.1 4.4 27 10.6 1.7 3.8 15.2 7.4 5.7 3.9 2.6



00EDS-0058-02 (2) EDS-O2D1-2G 2-place system with AL-248 Aluminum cylinder and FPR-540 regulator with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-248 139 2015 248 8.8 11.1 4.4 27 10.6 1.7 3.8 7.6 3.7 2.9 1.9 1.3






00EDS-0058-D1 EDS-O2D1-2G with AL-248 Aluminum cylinder and XCR-DIN regulator with fullpack

Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-248 139 2015 248 8.8 11.1 4.4 27 10.6 1.7 3.8 15.2 7.4 5.7 3.9 2.6

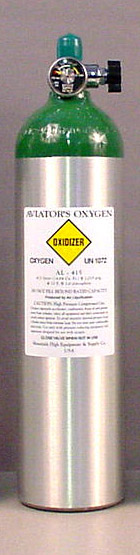

00EDS-0060-01

EDS-O2D1-2G with AL-415 Aluminum cylinder and XCR-540 regulator.with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-415 139 2015 415 15.7 11.1 4.4 41 16.2 2.5 5.4 25.4 12.3 9.6 6.6 4.3



00EDS-0060-02 (2) EDS-O2D1-2G units with AL-415 Aluminum cylinder, FPR-540 regulator with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-415 139 2015 415 15.7 11.1 4.4 41 16.2 2.5 5.4 12.7 6.2 4.8 3.3 2.2



00EDS-0060-D1

EDS-O2D1-2G with AL-415 Aluminum cylinder and XCR-DIN-477 regulator with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-415 139 2015 415 15.7 11.1 4.4 41 16.2 2.5 5.4 25.4 12.3 9.6 6.6 4.3



00EDS-0062-01

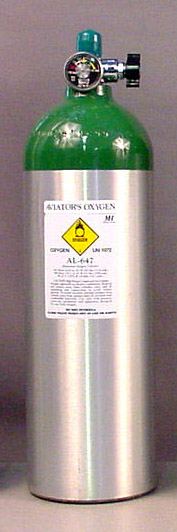

EDS-O2D1-2G with AL-647 Aluminum cylinder and XCR-540 regulator with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-647 139 2216 647 22.8 13.3 5.3 42 16.5 3.8 8.4 39.6 19.2 14.9 10.3 6.7

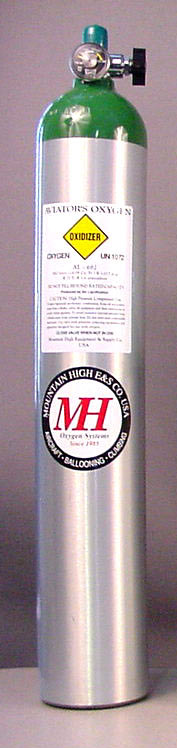

00EDS-0064-01  EDS-O2D1-2G with AL-682 Aluminum cylinder and XCR-540 regulator with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-682 153 2216 682 24.1 11.1 4.4 65 25.6 3.7 8.2 41.8 20.2 15.7 10.8 7.0





EDS Oxygen System with Composite Cylinders

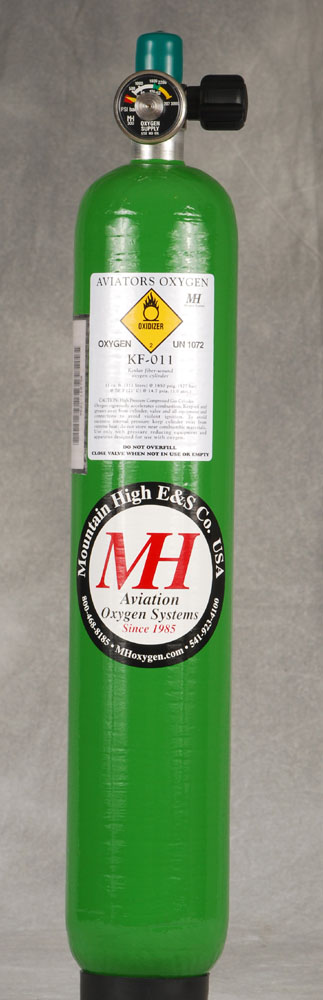

00EDS-0002-01  EDS-O2D1-2G with KF-011 Kevlar cylinder and XCR-540 regulator with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
KF011 128 1850 311 11 9.3 3.62 48.5 19.1 .9 2.0 19 9.2 7.2 4.9 3.2





00EDS-0002-D1  EDS-O2D1-2G with KF-011 Kevlar cylinder and XCR-DIN-477 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
KF011 128 1850 311 11 9.3 3.62 48.5 19.1 .9 2.0 19 9.2 7.2 4.9 3.2

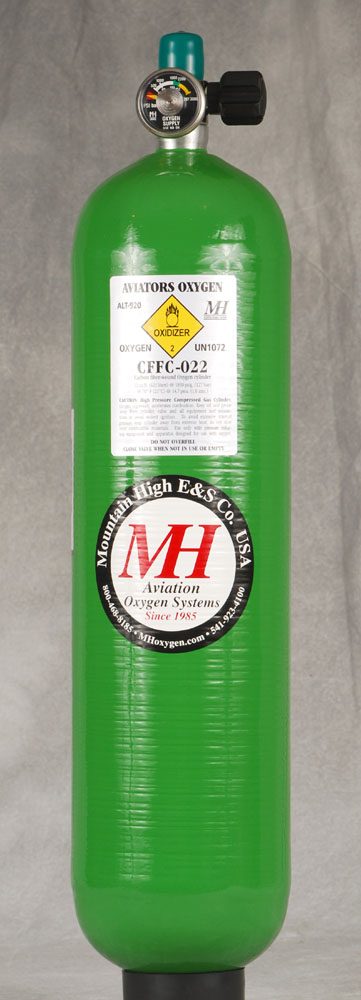

00EDS-0004-01 EDS-O2D1-2G with CFFC-022 carbon fiber cylinder, XCR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
CFFC-022 128 1850 623 22 13.2 5.2 50.5 19.9 1.6 3.6 38.2 18.5 14.4 9.9 6.4

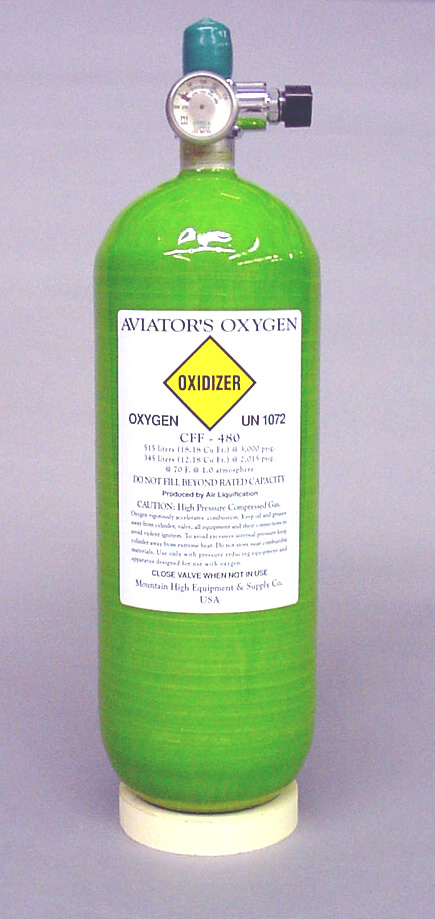

00EDS-0084-01  EDS-O2D1-2G and CFF-480 Silica cylinder, XCR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
CFF-480 207 3000 515 18.2 11.4 4.5 36.5 14.4 1.7 3.7 31.6 15.3 11.9 8.2 5.3
CFF-480 128 1850 515 18.2 11.4 4.5 36.5 14.4 1.7 3.7 18.9 9.2 7.1 5.9 4.4



00EDS-0084-D1 EDS-O2D1-2G and CFF-480 Silica cylinder, XCR-DIN-477/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
CFF-480 207 3000 515 18.2 11.4 4.5 36.5 14.4 1.7 3.7 31.6 15.3 11.9 8.2 5.3
CFF-480 128 1850 515 18.2 11.4 4.5 36.5 14.4 1.7 3.7 18.9 9.2 7.1 5.9 4.4
