Up Power Converter

Naviter Oudie 2

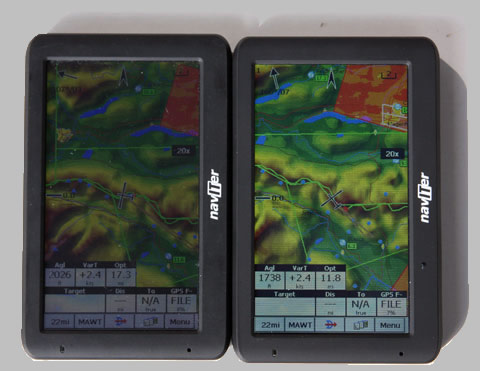

Oudie2  in Direct Sun

OUDIE  SYSTEMS

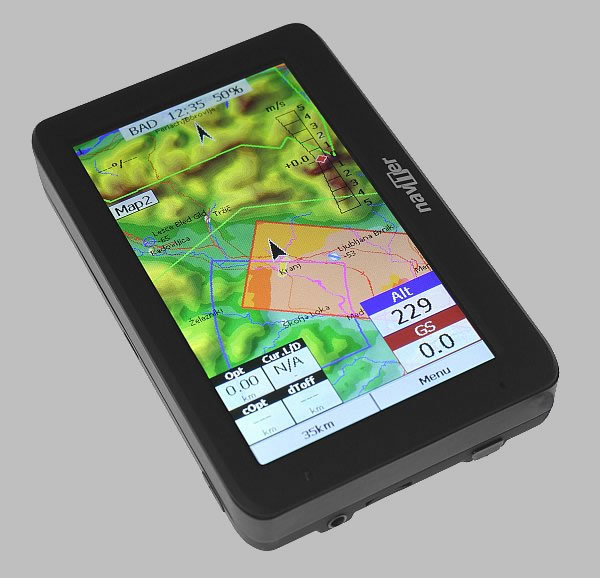

The Oudie is a  Personal Navigation Device which runs SeeYou Mobile natively. What makes it different than any other device on the market is the ability to perform all of the most important tasks for glider pilots right out of the box. It features:
  • Large 5" screen (same brightness as all other PNA devices)
  • Landscape and Portrait screen orientations
  • Integrated GPS for stand-alone operation
  • Serial communication cable (doubles up as charger)
  • Bluetooth serial communication
  • Preinstalled SeeYou Mobile
  • Preinstalled worldwide Vector maps
  •  Sunlight readable  Higher Contrast Ratio and 900 nits brightness
  • Options below to upgrade your present Oudie



    Specifications
    Screen Size: 5" diagonal
    Screen Resolution: 480 x 272 pixels
    Overall Size: 135 x 86 x 14 mm (5.3 x 3.4 x 0.55 inches)
    Memory Expansion: microSD card, It accepts either standard or high-density (greater than 2 GB) cards . It also has 4 GB or internal memory (of which 2GB will be used by pre-installed world wide vector maps).

    External Power
    The internal battery will power the unit for only an hour or 2.  Therefore it will be necessary to power the unit either with an external portable battery such as the or to power it with 12V using its supplied 12V to 5V power converter.

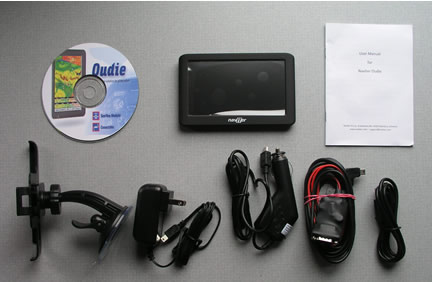

What's in the Box

Connection Kit  Instructions:

 (CONFIGURATION OF POWER CONVERTER CABLE)

  • Oudie CD Manual, Tips Guide
  • Oudie
  • Manual
  • Suction Cup Cradle
  • AC Power Adapter
  • Cigarette Lighter DC converter
  • Serial Communications Cable
  • USB Cable for PC connection

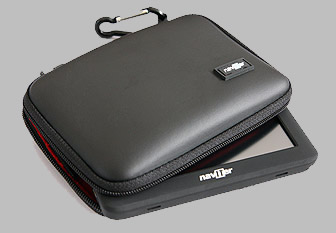

Oudie Carry Case
  • By far the most common reason why we had to service the Oudies was because of broken screens. Most people sat on them or dropped them from altitude. The winner was one unlucky person who drove over it with his SUV.

  • It is  made of tough, rubber-like waterproof material and even includes a carabineer



The Mirco USB port has changed to ensure full functionality with any existing Oudie power/CC-NP-Oudie/LX/CAI cables there is universal ver Y/R converter cable available:

Y/ROudieC Cable

Note: All new devices since the change are delivered with a correct Oudie power cable!



To check the hardware version of your Oudie, from the map screen, go to Menu > Next > About. The version should be displayed at the top of the screen. If it is not displayed, you should use the Naviter Updater to update your Oudie software to the latest version.  Use switch on the converter to set Y or R.



Tutorial for Setup of NAV Boxes & Area Turnpoints in SeeYou Oudie





Part # Description

Price



1005031

Naviter Oudie IGC GPS Moving Map Vario (IGC approved flight recorder) approx 12 hr battery Unlimited updates for SeeYou Mobile



  End of Life

1005035

Naviter Oudie IGC GPS Moving Map Vario (IGC approved flight recorder) Bundle with SeeYou for your PC approx 12 hr battery. Unlimited updates for SeeYou Mobile, 1 yr updates for SeeYou



End of Life

1005023



Naviter Oudie 2 Sunlight Readable.   Includes SeeYou Mobile Lifetime subscription.



End of Life

1005028

Naviter Oudie2 Lite Sunlight Readable  SeeYou Mobile software pre-installed, but does not include a license for SeeYou Mobile. Pilots can use their existing PDA or PNA SeeYou Mobile license, or install soaring flight software such as XCSoar, LK8000.

We also offer our customers in exchange for your Oudie a replacement with Oudie 2 Lite and will transfer the unlimited license from the old Oudie to the new one. In order to complete this process please purchase the Oudie 2 and ship me your Oudie 1 after you receive the new Oudie 2.  In the comments section of the order please note you are upgrading your Oudie 1 and include the SN of your Oudie 1 and the program SN, go menu about to get the program SN.

You can run any other program by renaming its main EXE to UpdateOudie.exe.  If you want the menu after boot rename the main EXE into \2577\mSeeYou.exe. Then the "program" will start if they press the SeeYou Mobile icon.



End of Life

1005021

Oudie Carry Case



In Stock

Y/ROudieC Go to the about page on your Oudie check at the top shows  if you need a  Y or R cable

Y/R Oudie Version cable converter with switch

Use with a version Y Oudie with a version R cable, or a version R Oudie with a version Y cable.

If communications aren't working, change the switch position.

To see the hardware version of your Oudie, go to Menu, Next, About. The version should be displayed at the top of the screen. If it is not displayed, you should use the Naviter Updater to update your Oudie software to the latest version.

Versions

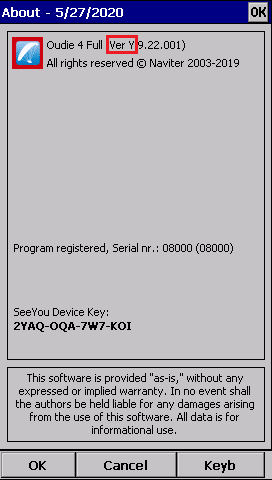

  • Version Y - Oudie, and Oudie2 units made before about October of 2019, and all Oudie IGC units.  "Ver Y" in the About screen.

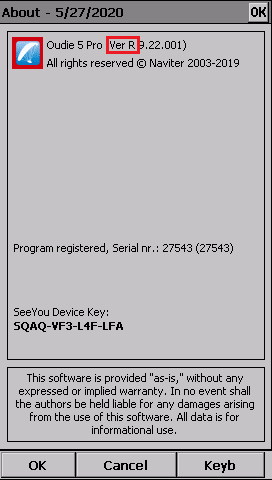

  • Version R - Oudie2 units which started shipping in about October of 2019. They have software serial numbers greater than 25xxx, 26xxx and 27xxx.   "Ver R" in the About screen.


In Stock



1005022

Oudie to CAI 302 Cable, supplies power and RX, TX.  Direct cable to the 302.

Discontinued

  Discontinued

1005032

Oudie Cradle with Modified Tilt Swivel.



In Stock



Craggy Aero  Oudie arms include a Tilt Swivel and  Modification of the Standard  cradle  that comes with the purchase of the OUDIE

Tilt Swivel allows the pilot to easily move the Oudie to reduce glare without loosening the arm.

Arms below can be selected as an option when you click the Add to Cart to Purchase an Oudie.

To Purchase arm components separately  click  RamMounts  it take you to the RAM Mounts Page.

Oudie Cradle Modified Tilt Swivel.

 1005032

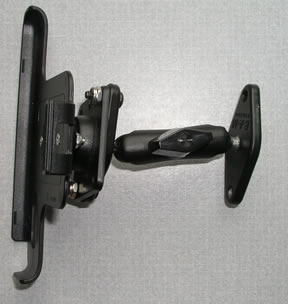

Oudie Cradle Modified Tilt Swivel,  Ram-A-101-U Arm   3.125"  9/16" Ball joints diamond plate



See Ram Mount Components



Oudie Cradle Modified Tilt Swivel,  Ram-A-101-UB Arm 4.625" 9/16 Ball joints diamond plate

See Ram Mount Components





Oudie Cradle Modified Tilt Swivel,  Ram-F3  Arm 5"   1"Ball joints diamond plate Arm Components Tilt Swivel & cradle modification



See Ram Mount Components







Oudie Cradle Modified Tilt Swivel,  MSG470  Gooseneck Arm 9"   Diamond Plate



See Ram Mount Components

Oudie Cradle Modified Tilt Swivel,  MSG470  Gooseneck Arm 9"   Threaded Nut



See Ram Mount Components




Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
