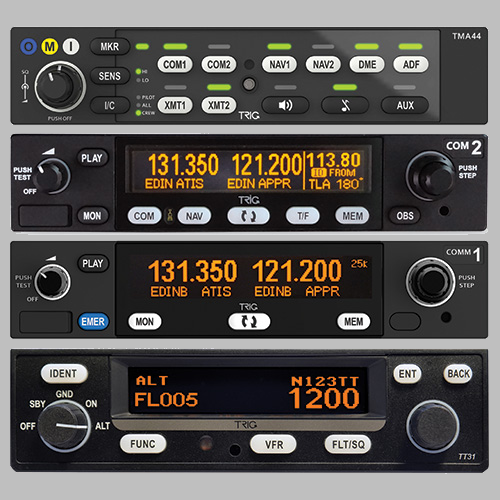

Trig Stack

Trig Stack PDF brochure

Part #	Description	Price	Order
TMA44	TMA44 Standard Audio Panel
63004	TT31 Mode S Stack Transponder
63005	TN70 WAAS GPS Receiver and WAAS Antenna, TNC female connector (Optional Airspeed Switch required for STC Peregrine Paperwork)* Select Harness, Coax or Antenna Add to Cart
TY96A	TY96A VHF Transceiver Stack Radio \| 10W, 760 Channel
TX56A	TX56A Nav/Com Radio \| 25kHz, 10 Watt
TI106	TI106 CDI Course Deviation Indicator

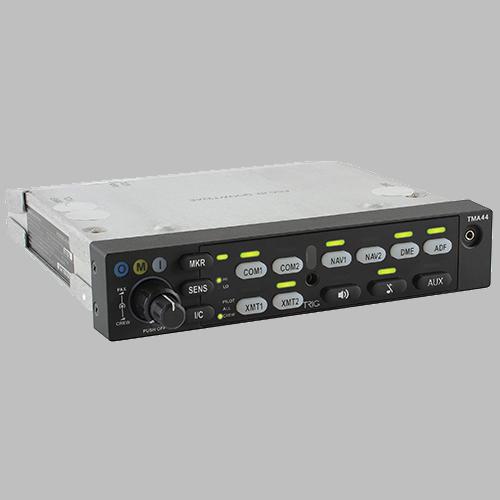

	TMA44 Standard Audio Panel TRIG AVIONICS Mono – audio inputs for phone / music Smooth fade feature Simple user interface – easy to use Dedicated buttons for ADF and DME functions Marker beacon receiver – with indicators Supports 2-4 seats Great value for fleet operators and flight schools
	TT31 Mode S Stack Transponder TRIG AVIONICS • Certified for IFR / VFR flight – meets TSO-C166b • Improved retrofit performance – ‘plug and play’ Mode S for KT76A, KT76C and KT78A • ADS-B Out – using popular GNS and GTN WAAS navigators • Free FAA ADS-B STC for 650 aircraft types • Trig Express Lane for the fastest installation • Amongst the lowest power consumption in class • Backlit LED display • No cavity tube – no warm up time required (no need for dropper resistors) • Software provides the widest compatibility with third party avionics • Two-year warranty from date of install, U.S. based technical support Trig Manual pdf Trig Install pfg
	TN70 WAAS GPS Receiver and WAAS Antenna, TNC female connector The TN70 Kit is an affordable ADS-B Out solution when paired with a Trig Mode S transponder certified to the latest ADS-B standard (FAA TSO C166b) like the TT22 or TT31 models. This kit is ideal for operators intending to use ADS-B In to access ADS-B ground services (TIS-B and FIS-B), because a compliant ADS-B Out is required. This kit is comprised of a WAAS GPS and WAAS certified GPS antenna. The installation does not require space on the panel; instead, the TN70 is fitted as a stand-alone GPS so that existing panel equipment can be left as is. Fully compliant and 2020 ready Completes an ADS-B Out system Requirers no panel space Easy to install Compatible with any Trig transponder TN70 Install Manual

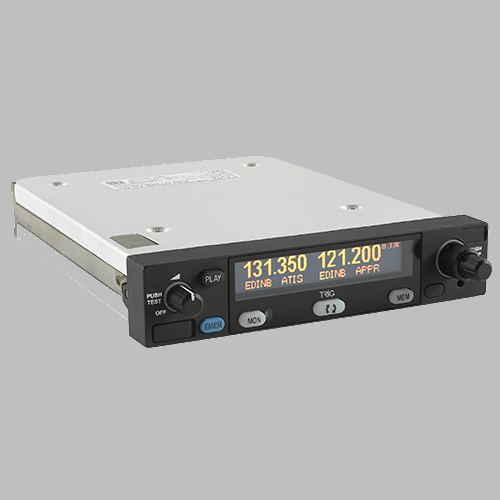

	TY96A VHF Transceiver Stack Radio \| 10W, 760 Channel TRIG AVIONICS 760 channel 11 V – 33 V, 10 watt Slimline panel mount – only 1.3 inch high Bright, clear display with simple user interface Unique ‘Push Step’ for faster tuning 25 kHz to 50 kHz Dual Watch for monitoring two frequencies at the same time ETSO and TSO approved Stereo music and two place intercom ‘Say Again’ feature allows playback of last transmission Emergency button Configurable airfield database holds over 200 frequencies USB port on facia provides convenient uploading of frequency databases (CSV file) Highly efficient – no cooling fans or external cooling required Ideal retro-fit for legacy radios - same height as an SL40 GPS / EFIS compatibility (includes SL40 protocol and Garmin GTR255) Two year warranty from date of install, U.S. based technical support TY96 Owner Manual pdf TY96 Additional Info
	TX56A Nav/Com Radio \| 25kHz, 10 Watt TRIG AVIONICS Slimline – only 33mm high Bright, clear display / simple user interface Unique ‘Push Step’ for faster tuning Dual Watch – monitor two com or two nav frequencies at the same time ETSO and TSO approval (pending) Stereo music / two place intercom ‘Say Again’ feature – allows playback of last transmission USB port on facia – upload over 200 com and nav frequency database (CSV file) VOR/ILS receiver – monitor a 2nd VOR Built in VOR/LOC converter Built in digital CDI Built in 40 channel glideslope receiver Highly efficient – no cooling fans or external cooling required Ideal retro-fit for legacy radios – unit is same height as an SL30 Installation kit included

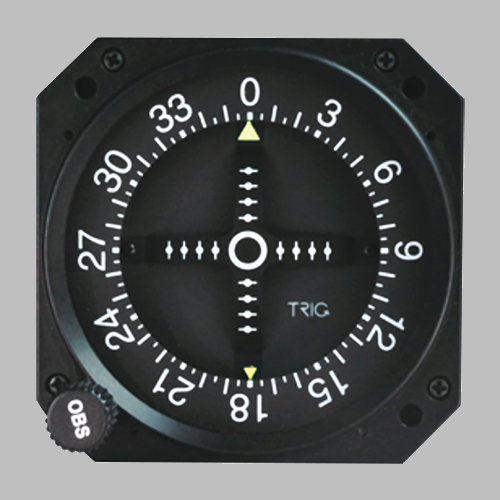

	TI106 CDI Course Deviation Indicator \| 3in TRIG AVIONICS Trig’s TI106 is a 3″ Course Deviation Indicator, ideally matched for the TX56 and TX57. Using the latest generation of indicator technology, solid state actuators provide smooth and dependable navigational indications. Use of LED technology for both flags and backlighting provides a superior display compared to older legacy indicators. The TI106 will support most existing Nav/Com equipment, making it a suitable replacement CDI across general aviation. FAA TSO-C34e certified CDI Solid state technology Superior LED lighting Optimized for use with Trig Nav/Com units Lightweight and simple to install Ideal as a retro-fit CDI option

Order on line or Call, Richard 530-905-0062, or email info@craggyaero.com .

Craggy Aero LLC, 3901 River Court, Hornbrook, CA 96044
