PowerFlarm & Flarm FUSION ANTENNAS

Antenna Recommendations & Guidance    Many range problems can be attributed to poor antenna installation!

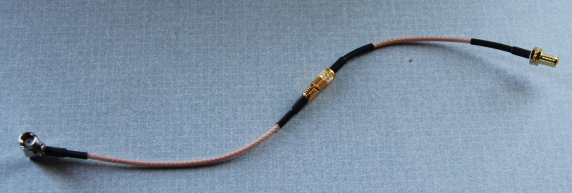

Breakaway Connector

Click for larger Picture
!!!!!!!  Installation Notes for the above Antennas:   These antennas use a bulkhead Connector, put bulk head thru the ground plane then the panel cover, lock washer and then the nut goes on.  Then screw the antenna on.  Make sure that your instrument panel cover, ground plane (if needed), lock washer  is not too thick.  If it is too thick the antenna will not screw on enough to make good antenna contact.

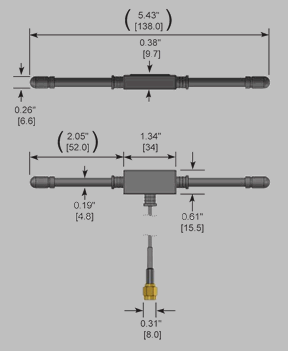

1/2 Wave Dipole Antenna with bulkhead mount   5" from bulkhead to top of Antenna.  Dipole no ground plane required. Select cable length ad Add to Cart 1/4 wave antenna high performance with a slim profile. 500107AB operates at 916 MHz  3.1 in length/ 78.74 mm. Fusion Ports A, B"Ground Plane included"

1/4 wave antenna high performance with a slim profile. 500107C operates at 1090 MHz ADSB 2.57 in length/ 65.3 mm.Fusion Port C ADSB "Ground Plane included"

 Breakaway connector for those who have glare shields that eject with the canopy 1/4 wave antenna high performance. It operates at 916MHz. The overall antenna length is 3.4-inches. It features a bulkhead mount, rubber duck, cable to PowerFlarm A or B with 6.8" square or dia round ground plane.  Select cable length at Add to Cart. See Ground Plane info below . 1/4 wave antenna high performance. It operates at 916MHz. The overall antenna length is 2.3-inches. It features a bulkhead mount, rubber duck, cable to PowerFlarm A or B with 4.6" square or dia round ground plane.  Select cable length at Add to Cart. See Ground Plane info below .
500101

500107AB

500107C

Select Option at Add to Cart

Or

Or Send me your antennas mark where you want the breakaway installed.



500111

500103                500102

GPS Active Antenna

GPS Active Antenna

Select length and connector  at Add to Cart

 PowerFlarm Dipole  Antennas  79" cable PowerFlarmADS-B  Wing External Antenna
  • Length: 4.10 inches (104 mm)
  • Height: 3.9 inches (99 mm)
  • Width: 1.0 inches (26 mm)
  • Weight  2.6 oz  (74 g)
  • Mounting Studs: #8-32 UNC-2A threads, Stud Length: 0.50 inches (19 mm)
  • 8" dia ground plane required. Included

See Ground Plane info below .

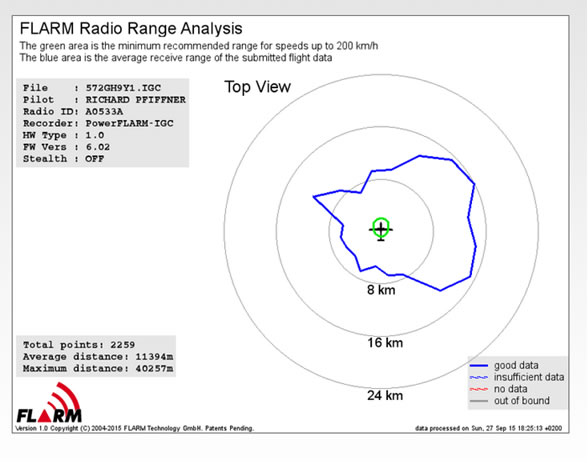

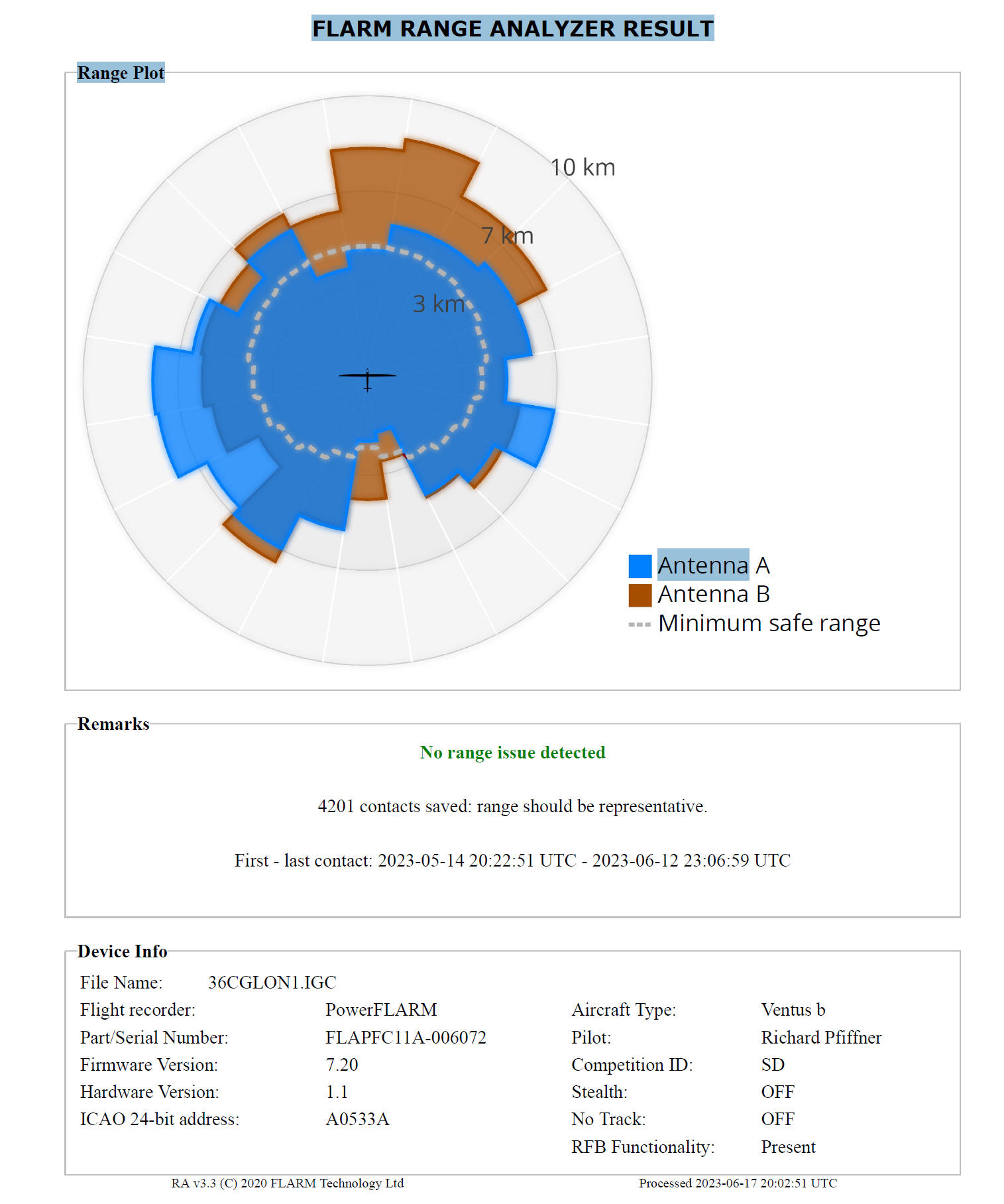

 Range analysis with 1/2 wave dipole on top of the panel and powerFlarm  T antenna in the nose  Ventus b.  8 km to 16 km
500056       Flarm A & B Connector on AntennaFemale US  500014

 ADS B  Connector on Antenna Male US         500015

FL-CAV75 ADS-B

500108

Select Coax Cable at Add to Cart



Got too many GPS antennas!  " Antenna Combiner"

3/2 to 1 Combiner Shown

Combines signal from GPS antenna to 2 or 3 different navigation devices

  • High quality GPS antenna Select length at Add to Cart
  • DC blockers on 1 or 2 of the navigation inputs this allows only one device to power the antenna and prevents dc power feed back.
  • Cables available for many different devices.
  • RG316 low loss input cables.
Part # Description Price
GPSAC31 GPS Antenna & Combiner 3/2  to 1, DC Blockers on 2 ports  Select Cables $33 each at Add to Cart

Ground Plane Information

  • A ground plane is required with both rod style and shark fin style transponder and FLARM antennas that are not dipole antennas.
  • 1/2 Wave Dipole PN 500101 and the PowerFlarm Dipole do not require ground planes.
  • The smallest recommended ground plane would be the length of antenna inches radius).  So a 4" antenna length ground plane would be 8" optimal.
  • Ground planes can be round or square.  Many discussions on which is best.
  • Carbon fiber glider fuselages, the antenna mounted on the outside of the fuselage, ground plane on the inside.
  • The mounting screws or bulkhead mounting are connected to the antenna ground.
  • The ground plane can curve and follow the inside of the glider fuselage.

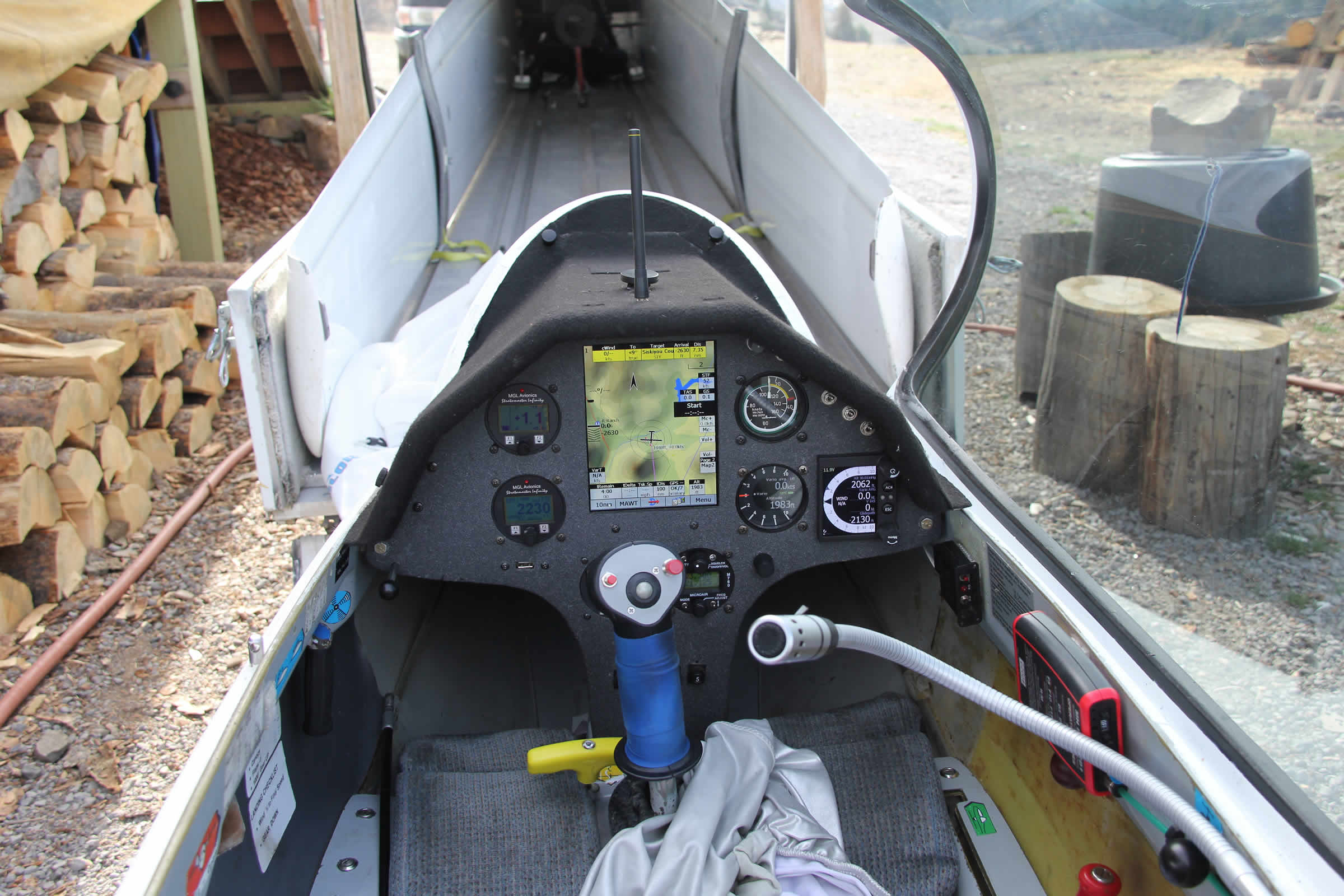

1/2 wave dipole on instrument panel  T flarm antenna in the nose.
