EDS 2 Place

Up

EDS O2D2  2 Place
EDS 2 & 4 Place Oxygen System with Aluminum Cylinders
EDS 2 Place Oxygen System with Composite Cylinders

How Pulse Demand Works

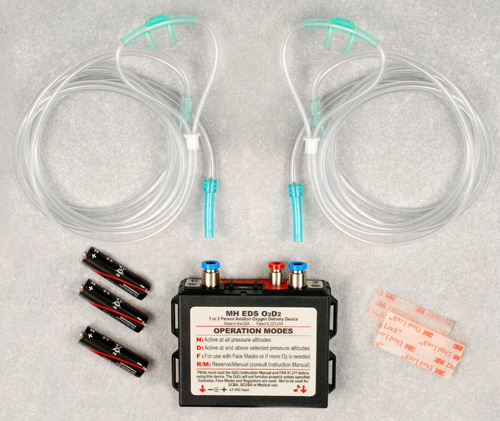

The patented MH EDS (Electronic Delivery System) is a one (O2D1)  or two-user (O2D2) aviation oxygen delivery device. It is designed to deliver aviation oxygen in the most efficient, comfortable and convenient way possible. With its user-selectable settings, apnea alarm and small size, the MH EDS  is the most portable and flexible electronic digital oxygen delivery system in the world. By providing a measured pulse of oxygen every time you breathe in, the MH EDS supplies the oxygen you need to stay alert and comfortable while flying. In contrast to constant flow systems that waste oxygen by supplying more than your body can use, the MH EDS provides a short pulse of oxygen as you inhale, ensuring that your oxygen is used most efficiently. Efficient oxygen delivery means you can fly further on a single oxygen refill or save space and weight with a smaller tank. It also makes it more feasible to enjoy the advantages of oxygen while flying below the altitudes where oxygen is mandated-- that can mean fewer headaches, increased alertness, and feeling less exhausted when you reach your destination. Your actual oxygen usage will be determined by your breathing rate and physiological needs at altitude. The programmability of the  MH EDS means that, unlike constant-flow oxygen systems, you can “set it and forget it”. By automatically detecting your pressure altitude, the MH EDS can be set to start providing oxygen immediately or at a specified altitude and will automatically adjust the oxygen flow as your altitude changes. When you're flying, don't you have more important things to do than adjust your oxygen flow during altitude changes?

Note: Our EDS O2D2-2G and O2D1-2G are portable systems designed and calibrated to be used with our regulators (~15 psig. dynamic to 25 MAX. psig. static). However, if you wish to operate from the outlets of a built-in system, we offer the EDS-STR stabilizing regulator. This will allow our portable EDS systems to operate with built-in systems that supply up to 90 psig. to the outlets in the aircraft.

Attachments:
File Description File size
Download this file (CAMI Testing of Pulse Oxygen Systemsx.pdf)CAMI Testing of Pulse Oxygen Systems   1812 Kb
Download this file (Cyl Chart 6-14.pdf)Cylinder Chart 06/25/14 190 Kb
Download this file (EDS-O2D2 Audio Wiring 5IEDS-0020-00(02D20-150-000$-0)[SCD].pdf)EDS-O2D2 Audio Wiring 3/22/2013 301 Kb
Download this file (EDS-O2D2 Manual Rev 2.pdf)EDS-O2D2 Manual Rev 2.pdf 10/16/14 1758 Kb
Download this file (EDSO2D2DataSheet.pdf)O2D2 Data Sheet   6 Kb
Download this file (Letter-O2D1-O2D2 Maintenance Program 103012.pdf)O2D1-O2D2 Maintenance Program 11/15/2012 340 Kb
Download this file (O2D2Dim.pdf)EDS O2D2 Dimensions   38 Kb
YouTube EDS O2D2 Setup

https://www.youtube.com/watch?feature=player_embedded&v=aTPRexjoDXE

EDS O2D2  2 Place

Part Number

Description



Price

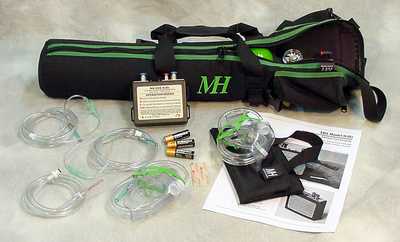

00EDS-2200-00 EDS O2D2-2G Kit

00EDS-2152-00 EDS-O2D2-2G with XCR-540 regulator.





00EDS-2152-01 EDS-O2D2-2G with XCR-540 regulator with gauge.



00EDS-2152-03
EDS-O2D2-2G with XCR-DIN-477 (Euro Inlet) regulator with gauge.



00EDS-2154-00 EDS-O2D2-2G with FPR-540 regulator.


00EDS-2154-01 EDS-O2D2-2G with FPR-540 regulator with gauge.


00EDS-2154-03 EDS-O2D2-2G with FPR-DIN-477 regulator with gauge.





EDS 2 & 4 Place Oxygen System with Aluminum Cylinders

00EDS-2053-02 EDS-O2D2-2G  with AL-180 Aluminum cylinder and XCR-540 regulator/with holster
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-180 153 2216 165 5.8 8.1 3.2 30 11.8 1.2 2.7 5.1 2.5 2 1.3 .9





00EDS-2054-02 EDS-O2D2-2G with AL-180 Aluminum cylinder and XCR-540regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-180 153 2216 165 5.8 8.1 3.2 30 11.8 1.2 2.7 5.1 2.5 2 1.3 .9



00EDS-2058-02 EDS-O2D2-2G with AL-248 Aluminum cylinder and XCR-540 regulator/with full pack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-248 139 2015 248 8.8 11.1 4.4 27 10.6 1.7 3.8 7.6 3.7 2.9 2 1.3



00EDS-2060-02 EDS-O2D2-2G  2-place system with AL-415 Aluminum cylinder and XCR-540 regulator/with fullpack.
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-415 139 2015 415 15.7 11.1 4.4 41 16.2 2.5 5.4 12.7 6.2 4.8 3.3 2.2



00EDS-2060-04 (2) EDS-O2D2-2G  with AL-415 Aluminum cylinder and FPR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(4 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-415 139 2015 415 15.7 11.1 4.4 41 16.2 2.5 5.4 6.3 3 2.4 1.6 1



00EDS-2060-D2 EDS-O2D2-2G with AL-415 Aluminum cylinder and XCR-DIN-477 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-415 139 2015 415 15.7 11.1 4.4 41 16.2 2.5 5.4 12.7 6.2 4.8 3.3 2.2



00EDS-2062-02 EDS-O2D2-2G 2-place system with AL-647 Aluminum cylinder and XCR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-647 139 2216 647 22.8 13.3 5.3 42 16.5 3.8 8.4 19.8 9.6 7.5 5.2 2.1







00EDS-2062-04 (2)EDS-O2D2-2G with AL-647 Aluminum cylinder and FPR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-647 139 2216 647 22.8 13.3 5.3 42 16.5 3.8 8.4 19.8 9.6 7.5 5.2 2.1



00EDS-2062-D2

EDS-O2D2-2G with AL-647 Aluminum cylinder and XCR-DIN-477 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-647 139 2216 647 22.8 13.3 5.3 42 16.5 3.8 8.4 19.8 9.6 7.5 5.2 2.1



00EDS-2064-02  EDS-O2D2-2G units with AL-682 Aluminum cylinder, XCR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-682 153 2216 682 24.1 11.1 4.4 65 25.6 3.7 8.2 20.9 10.1 7.9 5.4 3.5



00EDS-2064-04

(2) EDS-O2D2-2G with AL-682 Aluminum cylinder and FPR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-682 153 2216 682 24.1 11.1 4.4 65 25.6 3.7 8.2 20.9 10.1 7.9 5.4 3.5



00EDS-2064-D2

EDS-O2D2-2G with AL-682 Aluminum cylinder and XCR-DIN477 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
AL-682 153 2216 682 24.1 11.1 4.4 65 25.6 3.7 8.2 20.9 10.1 7.9 5.4 3.5





EDS 2 Place Oxygen System with Composite Cylinders

00EDS-2002-02  EDS-O2D2-2G with KF-011 Kevlar cylinder and XCR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
KF011 128 1850 311 11 9.3 3.62 48.5 19.1 .9 2.0 9.5 4.6 3.6 2.5 1.6





00EDS-2002-D2  EDS-O2D2-2G with KF-011 Kevlar cylinder and DIN-477 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
KF011 128 1850 311 11 9.3 3.62 48.5 19.1 .9 2.0 9.5 4.6 3.6 2.5 1.6





00EDS-2004-02 EDS-O2D2 with CFFC-022 carbon fiber cylinder, XCR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
CFFC-022 128 1850 623 22 13.2 5.2 50.5 19.9 1.6 3.6 19.1 9.25 7.2 4.9 3.2



00EDS-2004-04 (2) EDS-O2D2-2G with CFFC-022 carbon fiber cylinder, FPR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(1 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
CFFC-022 128 1850 623 22 13.2 5.2 50.5 19.9 1.6 3.6 19.1 9.25 7.2 4.9 3.2



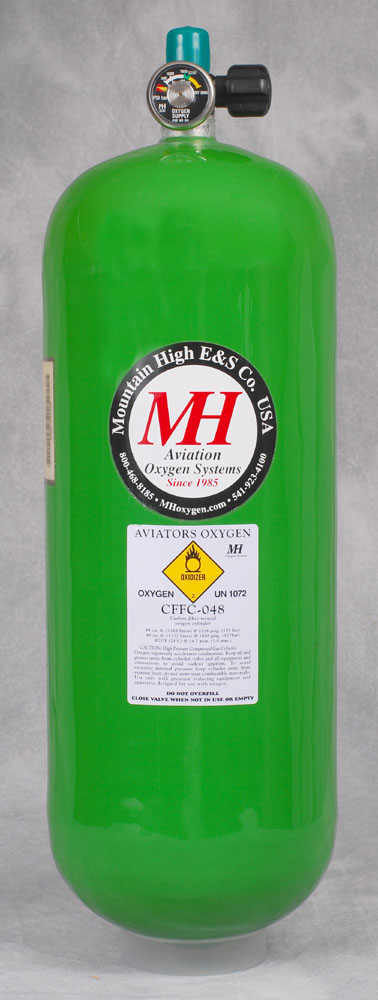

00EDS-2014-02 EDS-O2D2 and CFF-048 Silica cylinder, XCR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
CFF-048 152 2216 1365 48.2 17.2 6.8 50 19.7 1.6 3.6 41.8 20.2 15.7 10.8 7.0



00EDS-2014-04 (2) EDS-O2D2-2G and CFF-048 Silica cylinder, FPR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
CFF-048 152 2216 1365 48.2 17.2 6.8 50 19.7 1.6 3.6 20.9 10.1 7.9 5.4 3.5



00EDS-2084-02 EDS-O2D2-2G and CFF-480 Silica cylinder,XCR -540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
CFF-480 207 3000 515 18.2 11.4 4.5 36.5 14.4 1.7 3.7 15.8 7.6 5.9 4.1 2.7
CFF-480 128 1850 515 18.2 11.4 4.5 36.5 14.4 1.7 3.7 9.5 4.6 3.6 2.8 2.2



00EDS-2084-04 (2) EDS-O2D2-2G and CFF-480 Silica cylinder, FPR-540 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(4 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
CFF-480 207 3000 515 18.2 11.4 4.5 36.5 14.4 1.7 3.7 7.9 3.8 3 2 1.3
CFF-480 128 1850 515 18.2 11.4 4.5 36.5 14.4 1.7 3.7 4.7 2.3 1.8 1.3 1.1



00EDS-2084-D2 EDS-O2D2-2G and CFF-480 Silica cylinder,DIN -477 regulator/with fullpack
Duration Table (hours)
Cylinder

Fill Pressure

Volume

Diameter
Max.
Length
Max.
Weight
Empty

Duration in Hours
(2 Place)

  bar PSI liters cu. ft. cm inch cm inch Kg  lb 10K ft 15K ft 18K ft 20K ft 25K ft
CFF-480 207 3000 515 18.2 11.4 4.5 36.5 14.4 1.7 3.7 15.8 7.6 5.9 4.1 2.7
CFF-480 128 1850 515 18.2 11.4 4.5 36.5 14.4 1.7 3.7 9.5 4.6 3.6 2.8 2.2
