00BLT-1016-xx Flex-Fill Port w/ Remote Pressure Gauge.

A favorite amongst glider pilots. This 1/8 NPT fitting will screw into any of our pressure regulators that have a gauge port.
The cylinder may now be serviced and pressure monitored from a remote location.





Select flex cable length at Add to Cart











O2 Transfilling Equipment  General Transfilling Information

Mountain High manufactures a line of oxygen transfillers and adapters so you can refill your cylinders without making expensive trips to an airport or compressed gas facility. Buy or rent a large oxygen cylinder and do your own refilling.. Mountain High oxygen transfillers have micro-particle secures at the inlets and outlets to help keep dirt out of your oxygen system to meet or exceed SAE, CGA and DOT specs.

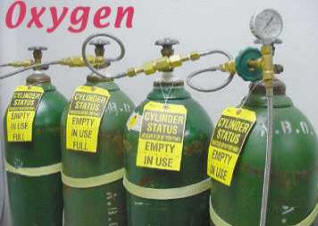

Complete Transfilling System
A transfilling system is  a large cylinder to be used to re-charge your airplane's cylinder.  A transfill system can be used to fill multiple tanks.   A  a large cylinder is used to reduce the number of times you need to get oxygen from an oxygen supplier.

Cylinder Valve Port Types
There are 2 types of cylinder valve port types commonly used in aircraft.  The regulator attaches to this port.

  • CGA-540 - US standard, Approximate outer diameter of threads: 0.875" (22.2 mm)
  • DIN-477 - European standard, Approximate outer diameter of threads: 1" (25.4 mm)
File Description File size
Download this file (TR55a.pdf)TR-55 Manual 04/10/14 62Kb
Download this file (TR55aDIN.pdf)TR-55a DIN Manual 04/10/14 61Kb
Download this file (TR75b DIN-DIN.pdf)TR-75b DIN-DIN Manual 04/10/14 80 Kb
Download this file (TR75b DIN.pdf)TR-75b DIN Manual 04/10/14 83 Kb
Download this file (TR75b.pdf)TR-75b Manual 04/10/14 83 Kb
Download this file (TR95b DIN- DIN.pdf)TR-95b DIN-DIN Manual 04/10/14 83 Kb
Download this file (TR95b DIN.pdf)TR-95b DIN Manual 04/10/14 86 Kb
Download this file (TR95b.pdf)TR-95b Manual 04/10/14 86 Kb
Download this file (TR105b.pdf)TR-105b Manual 04/10/14 94 Kb
Download this file (TR105bDIN.pdf)TR-105b DIN Manual 04/10/14 94 Kb
Download this file (TR-875.pdf)TR-875 Manual 04/10/14 64 Kb
00GSE-1008-00

O2 transfiller TR-55b, CGA 540 to CGA 540,  select length at add to cart

The TR-55 is the most economical way to fill your cylinder. One side has a CGA-540 nut & nipple with an O-ring seal, while the other end is equipped with a large hand nut with bare nipple. This allows you to slowly and safely bleed the line so the fittings can be easily removed from the cylinder. This transfiller is also available in a DIN-477 (Euro-norm) version.  Comes with 2' or 4' flex hose.



  2 Feet

 Select length at Add to Cart

$10 per foot

00GSE-1008-01 CGA-540 to DIN-477 oxygen transfiller device. select length at add to cart
With
DIN-477-9 Swiss-Euro Style Fitting on one end

2 Feet

Select length at Add to Cart

$10 per 30 cm

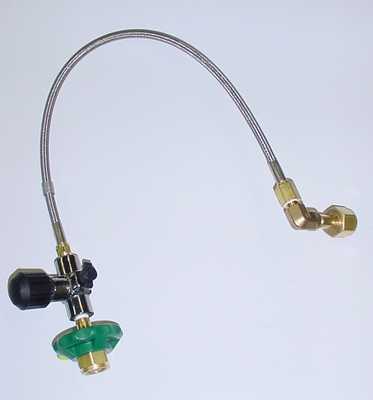

00GSE-1012-00 TR-75B-CGA-540 to CGA-540-Transfiller select length at add to cart

The  TR-75b is our most popular personal transfiller. It is equipped with O-ring seals on both of the CGA-540 (oxygen) ends for a positive and air-tight fit by hand. A handy bleed valve is included to relieve the pressure in the system so that the fittings can be easily removed from the cylinder without damage to the O-ring seals. This transfiller is also available in the DIN-477-9 Swiss-Euro version.
Standard length 24 inches.  Custom lengths available on request.

  4 feet

Select length at Add to Cart

$10 per foot



00GSE-1012-01 TR-75B-DIN-477 to CGA-540-Transfiller(4ft.)

The  TR-75b is our most popular personal transfiller. It is equipped with O-ring seals on both of the CGA-540 (oxygen) ends for a positive and air-tight fit by hand. A handy bleed valve is included to relieve the pressure in the system so that the fittings can be easily removed from the cylinder without damage to the O-ring seals. This transfiller is also available in the DIN-477-9 Swiss-Euro version.
Standard length 24 inches.  Custom lengths available on request.

4 feet



Select length at Add to Cart

$10 per foot





00GSE-1012-02 TR-75B-DIN-477 to DIN-477-Transfiller(60 cm)

The  TR-75b is our most popular personal transfiller. It is equipped with O-ring seals on both of the CGA-540 (oxygen) ends for a positive and air-tight fit by hand. A handy bleed valve is included to relieve the pressure in the system so that the fittings can be easily removed from the cylinder without damage to the O-ring seals. This transfiller is also available in the DIN-477-9 Swiss-Euro version.
Standard length 24 inches.  Custom lengths available on request.

60 cm

Select length at Add to Cart

$10 per 30 cm

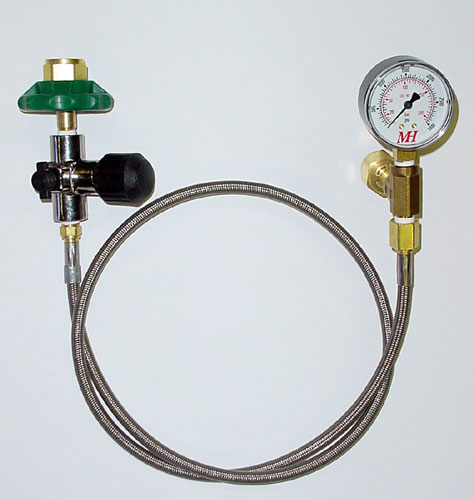

00GSE-1016-00 TR-95B-CGA-540 to CGA-540-Transfiller select length at add to cart

The TR-95b utilizes a master transfer (regulating) valve to control the flow of oxygen into the cylinder being filled. A separate bleed valve allows you to bleed only the fittings (rather than the entire service line) and change cylinder after cylinder with almost no loss of valuable oxygen.The TR-95b-DIN version of our TR-95b transfiller has the same features as the TR-95b except that it is compatible with DIN-477-9 Swiss-Euro systems. A dual gauge version of the TR-95b is also available. It has an additional gauge at the slave cylinder side so that you can pre-check cylinders without a gauge that you are about to fill. The gauge is also great for monitoring the transfill process.

  4 feet

Select length at Add to Cart

$10 per foot

00GSE-1016-01 TR-95B-DIN-477 to CGA-540-Transfiller(4ft.)

The TR-95b utilizes a master transfer (regulating) valve to control the flow of oxygen into the cylinder being filled. A separate bleed valve allows you to bleed only the fittings (rather than the entire service line) and change cylinder after cylinder with almost no loss of valuable oxygen.The TR-95b-DIN version of our TR-95b transfiller has the same features as the TR-95b except that it is compatible with DIN-477-9 Swiss-Euro systems. A dual gauge version of the TR-95b is also available. It has an additional gauge at the slave cylinder side so that you can pre-check cylinders without a gauge that you are about to fill. The gauge is also great for monitoring the transfill process.

  4 feet

Select length at Add to Cart

$10 per foot



00GSE-1016-02 TR-95B-DIN-477 to DIN-477-Transfiller(4ft.)

The TR-95b utilizes a master transfer (regulating) valve to control the flow of oxygen into the cylinder being filled. A separate bleed valve allows you to bleed only the fittings (rather than the entire service line) and change cylinder after cylinder with almost no loss of valuable oxygen.The TR-95b-DIN version of our TR-95b transfiller has the same features as the TR-95b except that it is compatible with DIN-477-9 Swiss-Euro systems. A dual gauge version of the TR-95b is also available. It has an additional gauge at the slave cylinder side so that you can pre-check cylinders without a gauge that you are about to fill. The gauge is also great for monitoring the transfill process.



60 cm

Select length at Add to Cart

$10 per 30 cm

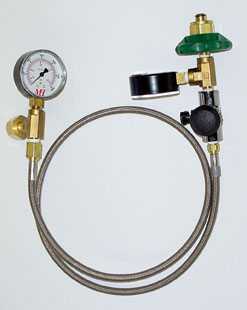

00GSE-1111-00 TR-105B-CGA-540 to CGA-540-Transfiller select length at add to cart

The TR-105 is a dual gauge version of our TR-95b. The TR-105 has an additional gauge at the slave cylinder side so that you can pre-check cylinders without a gauge that you are about to fill. Also, the gauge is great for monitoring the transfill process.
Standard length 48 inches (120). Custom lengths available on request.

  4 feet

Select length at Add to Cart

$10 per foot



00GSE-1111-01 TR-105B-CGA-540 to DIN-477-Transfiller select length at add to cart

The TR-105 is a dual gauge version of our TR-95b. The TR-105 has an additional gauge at the slave cylinder side so that you can pre-check cylinders without a gauge that you are about to fill. Also, the gauge is great for monitoring the transfill process.
Standard length 48 inches (120). Custom lengths available on request.



  4 feet

Select length at Add to Cart

$10 per foot



00GSE-1014-00 TR-875-Transfiller(1.5ft)-CGA-870-Yoke-To-CGA-550

The TR-875 is a CGA-870 (medical oxygen fitting) to CGA-540 (standard oxygen fitting) transfilling device. The TR875 allows you to transfill between equipment that has a CGA-870 (medical) fitting and a standard CGA-540 fitting. All connections are air-tight by hand without the use of tools.

  1.5 feet

Select length at Add to Cart

$10 per foot

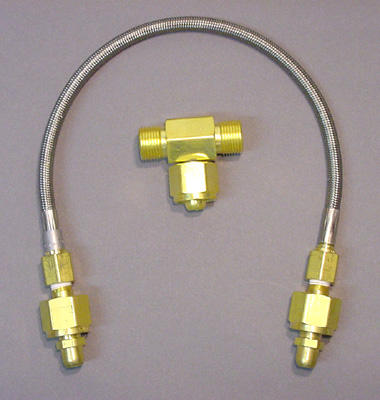

00GSE-1020-00 TR-CIC-540

 Cylinder intercoupling kit allows the cascading of several master cylinders
for a customized transfilling station. This kit comes with a CGA-540 Tee kit and high pressure flex-line.
One each needed for each additional tank.

Adapters

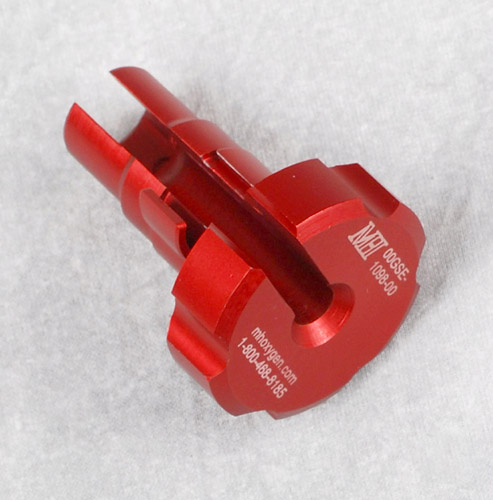

00GSE-1098-00 MH - Transfiller Spanner Wrench

MH-Equipment
manufactures this tool from high grade Aluminum alloy which is then anodized to help prevent corrosion.This spanner tool keeps the adapter nut from distorting due to the use of an improper wrench. A retaining clip is employed so that the spanner stays in place while in use. Fits all our AN-800 (7/16) style adapters. Weighs 1.7oz.





The North American Industry Standard for oxygen fittings are called 'CGA-540' (Compressed Gas Assn. fitting No.540). Aircraft with built-in oxygen systems do not usually use the heavy fittings, instead special lighter weight fill fittings have been developed. We have transfiller fittings for easy refilling your built in system from standard CGA-540 oxygen systems. The adapters shown are for the Aircraft fillers. The (N) is for 'Nipple' and the (S) is or 'Socket' on the CGA-540 end.An industrial cylinder has a socket. Micro particle filters are used and an O-ring is on the 540 nipple for an airtight fit by hand.

    PDF Drawings of Transfiller Fittings

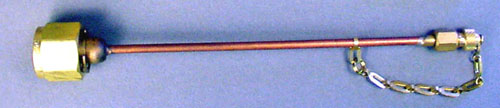

00GSE-1000-00 TA-380-N Transfiller adapter, Adapts CGA-540 to the AN-800 (3/8-24) fitting .
Commonly known as the MS22066 and MS22035 filler ports. A nut and nipple is on the CGA-540 end to attach to transfiller lines.  \GSE-1000-00(SCD)(md).pdf

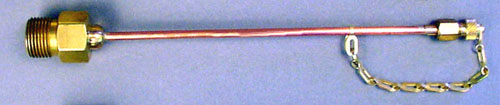

00GSE-1002-00 TA-380-S Transfiller adapter, Adapts CGA-540 to the AN-800 (3/8-24) fitting .
Commonly known as the MS22066 and MS22035 filler ports. A socket is on the CGA-540 end to attach to transfiller lines. This is our most common adapter. \GSE-1002-00(SCD)(md).pdf
00GSE-1004-00

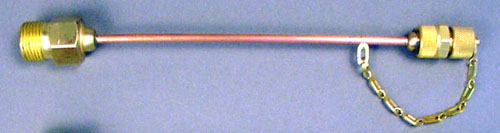

TA-916-S Transfiller adapter, Adapts CGA-540 to the Scott fitting (9/16-18 threads).Commonly known as the Scott 26875, 5020-1Airline or AS1046 fitting.A socket is on the CGA-540 end to attach to transfiller lines.

\GSE-1004-00C(SCD)(md).pdf

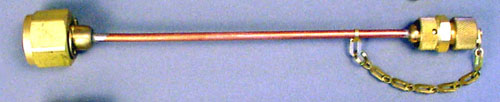

00GSE-1026-00 TA-916-N Transfiller adapter, Adapts CGA-540 to the Scott fitting (9/16-18 threads). Commonly known as the Scott 26875, 5020-1Airline or AS1046 fitting. A nut and nipple is on the CGA-540 end to attach directly to cylinders. \GSE-1026-00B(SCD)(md).pdf

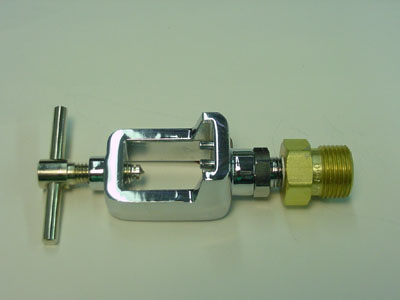

00GSE-1024-00 The TA-870-Y adapter enables the connection of CGA-540 devices to CGA-870 medical cylindersTA-870-Y adapter GSE-1024-00 BOC Bottle

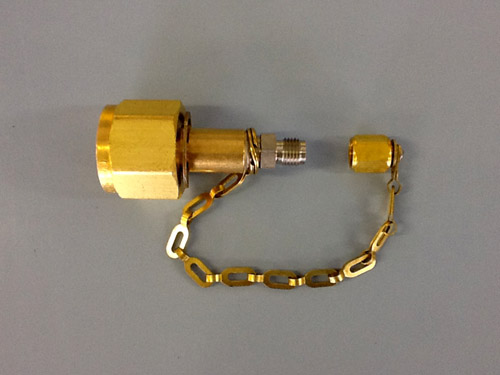

00GSE-1029-01 TA-540-AN adapter GSE 1029-00

Sometimes an FBO can't quickly or easily adapt to the standard CGA-540 regime. However, with the TA-540-AN a CGA-540 cylinder adapts to the MS22035/66 regime. This allows one to refill a CGA-540 cylinder with equipment commonly found at an FBO oxygen transfilling station. Don't leave home without this!

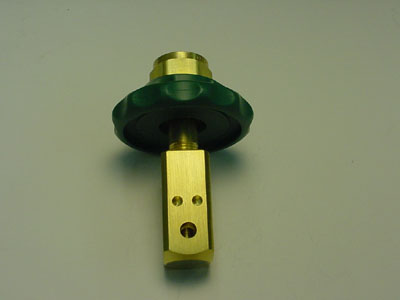

00GSE-1025-00 TA-870-P  adapter GSE-1025-00

Allows connection of medical type regulator and transfiller lines to CGA-540 cylinders.

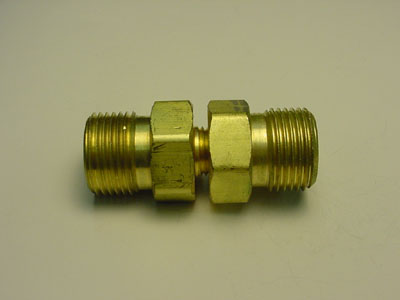

00GSE-1006-00 TA-540-GA Union adapter GSE-1006-00

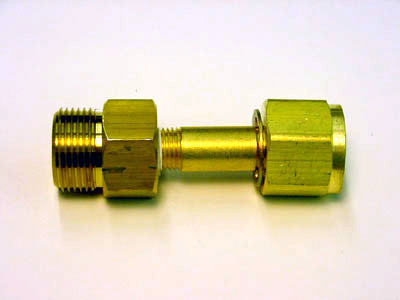

00GSE-1023-00 The TA-540-DIN has a CGA-540-N to DIN-477#9-S hardware scheme. It is a useful adapter that allows the connection of DIN-477#9 (M) devices to CGA-540 (FM) cylinders or devices. This adapter is also available in an "easy-grip/hand-grip" version called the TA-540K-DIN.
00GSE-1027-00

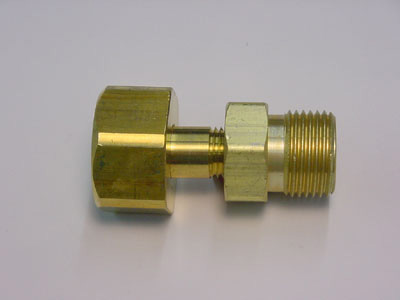

The TA-DIN-540 is a reversed version of the TA-540-DIN. It allows the connection of CGA-540(M) transfiller equipment to a DIN-477#9(FM) cylinder. The DIN side incorporates the New Euro Style fitting
