Maxi-Gap Seal Tape

Bright Shiny White

This is the best gap seal tape on the market with excellent stretch and UV resistance.  Rubber adhesive makes cleanup easy.
This gap seal tape is the best on the market today. With a rubber adhesive it has excellent surface wetability with resistance to solvents and moisture. We have flown an entire contest with no stretching, breaking, or lifting. - See more at: http://wingsandwheels.com/premium-gap-seal-tape-4-pack.html#sthash.raaeE5IN.dpuf
This gap seal tape is the best on the market today. With a rubber adhesive it has excellent surface wetability with resistance to solvents and moisture. We have flown an entire contest with no stretching, breaking, or lifting. - See more at: http://wingsandwheels.com/premium-gap-seal-tape-4-pack.html#sthash.raaeE5IN.dpuf
This gap seal tape is the best on the market today. With a rubber adhesive it has excellent surface wetability with resistance to solvents and moisture. We have flown an entire contest with no stretching, breaking, or lifting. - See more at: http://wingsandwheels.com/premium-gap-seal-tape-4-pack.html#sthash.raaeE5IN.dpuf

Low Density Polyethylene Film Tape

  • Bright Shiny White
  • Excellent moisture barrier
  • UV resistant
  • Tape will not crack or craze after extended exposure
  • Plastic core

Physical Properties:

  • Thickness 5.5mil
  • Substrate thickness 4.5 mil
  • Adhesion to steel 28 oz/in
  • Adhesive type  Rubber
  • Application temperature 40 to 120 deg F
  • Operating temperature -40 to 190 deg F
  • Elongation 425% excellent for irregular surfaces
  • Tensile strength 12 lb/ inch width
36121 Craggy Aero Maxi Gap Seal Tape 1" (25.4mm) width  36 Yards (33 Meters) Rubber Adhesive

Bright Shiny White

per Roll
36124A Craggy Aero Maxi Gap Seal Tape 1" (25.4mm) width  36 Yards (33 Meters) Rubber Adhesive  (5 Roll pack)

Bright Shiny White





5 ROLL PACK

$7.99 per roll

Mylar Curved & Gap Seal Supplies

  1. Tesa or 3M White Edge Seal Tape
  2. Teflon Fabric   S rolling seal tape
  3. Pre Curved Mylar White
  4. Double sided transfer tape Tesa.  To attach mylar and rolling seal.

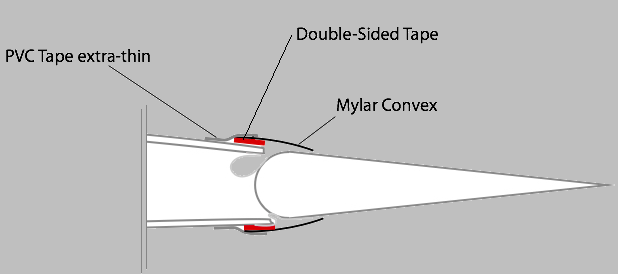

Instructions for Application of Gap Seals

Mylar Installation Pdf

Don't worry about the width of mylar pick the size that covers the gaps at full deflection of controls

Part Number Description
VSEAL20MMX10M V Seal color: white adhesive on one side width: 20mm length: 10m standard Used for sealing rudders and/or canopy parts

VSEAL20MMX5M V Seal color: white adhesive on one side width: 20mm length: 5m standard Used for sealing rudders and/or canopy parts

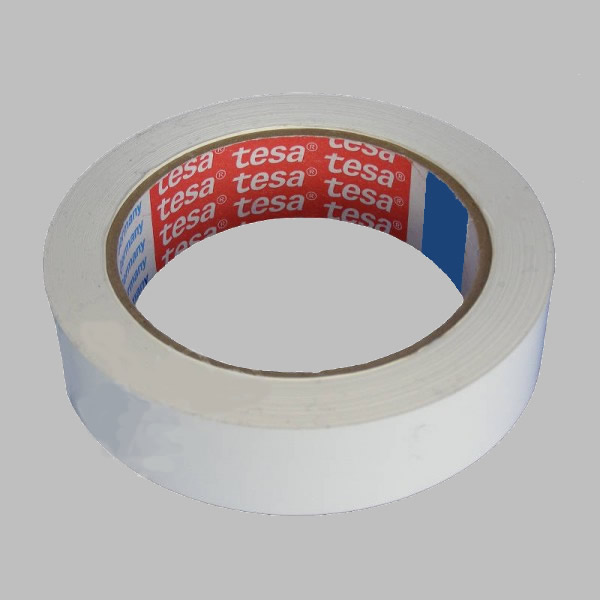

36122 1  Tesa 4104 Edge Seal Tape   PVC Anti-Peel Safety Tape Bright White  12mm wide  66 meter roll

36123 1  Tesa 4104  Edge Seal Tape   PVC Anti-Peel Safety Tape Bright White  19mm wide  65  meter roll

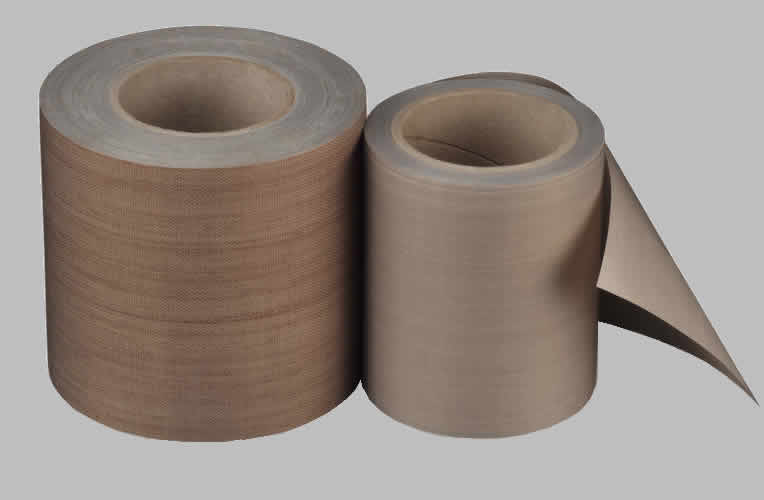

36102 Teflon Fabric 25.4 mm wide with adhesive

Per Meter
36125 Teflon Fabric 50.8 mm wide with adhesive

Per Meter
36103 2 Teflon Fabric 50mm wide    Per/Meter 50T  10 meter minimum

Per Meter
36104 2 Teflon Fabric 60mm wide   Per/Meter  60T  10 meter minimum

    Per Meter
36105 2 Teflon Fabric  75mm wide  75T  Wide for rudder Seal   10 meter minimum

Per Meter

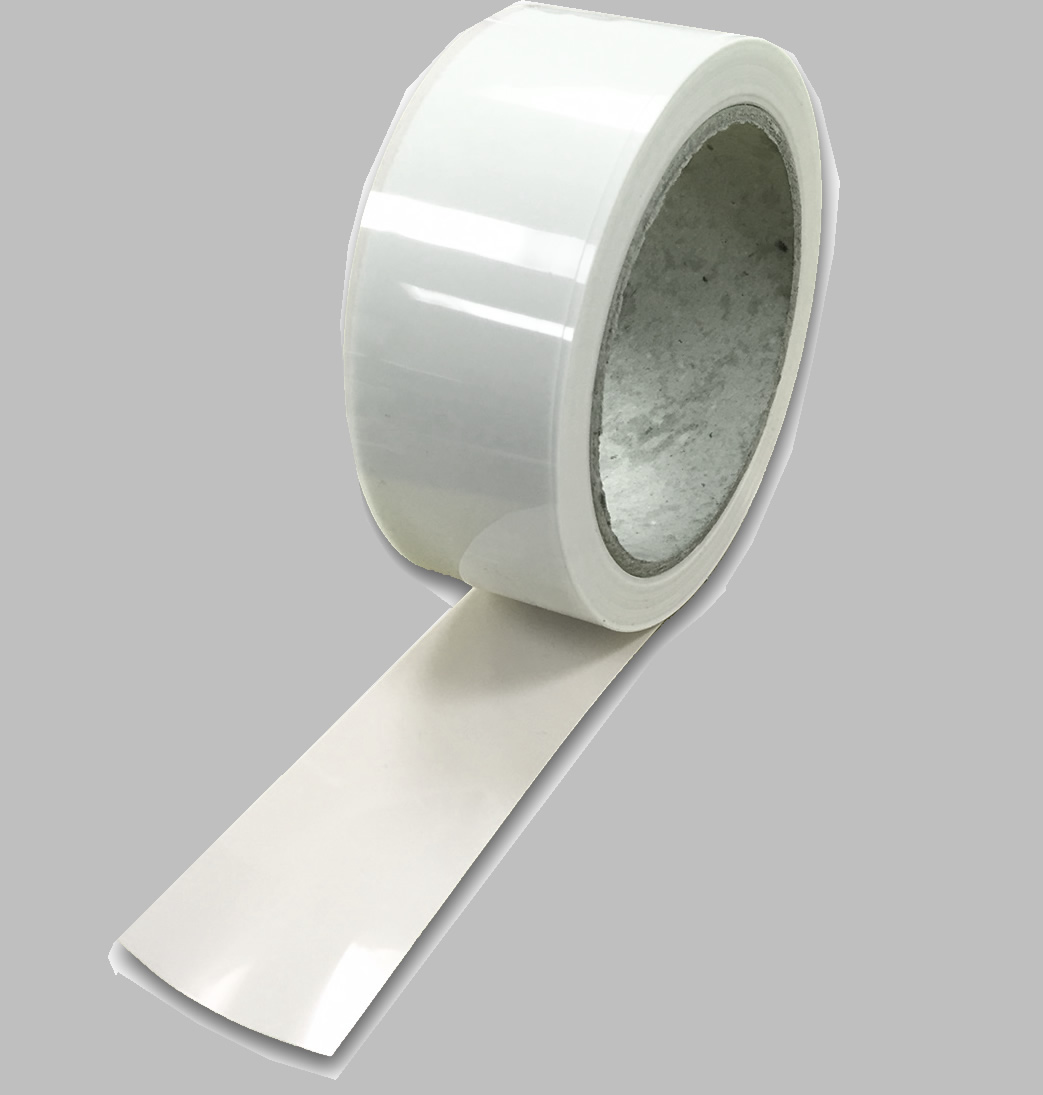

CMR2215 22mm Curved Mylar without adhesive 15 Meter Roll

CMR2225 22mm Curved Mylar without adhesive 25 Meter Roll

CMR2515 25mm Curved Mylar without adhesive 15 Meter Roll

CMR2525 25mm Curved Mylar without adhesive 25 Meter Roll

CMR3015 30mm Curved Mylar without adhesive 15 Meter Roll

CMR3025 30mm Curved Mylar without adhesive 25 Meter Roll

CMR3515 35mm Curved Mylar without adhesive 15 Meter Roll

CMR3525 35mm Curved Mylar without adhesive 25 Meter Roll

CMR3815 38mm Curved Mylar without adhesive 15 Meter Roll

CMR3825 38mm Curved Mylar without adhesive 25 Meter Roll

36120 3 Pre Curved Mylar 35mm wide Per/Meter

Per Meter
36109 3 Pre Curved Mylar 38mm wide Per/Meter

  Per Meter
36108 4  Tesa 4965  Double Side Transfer Tape, adhesion 127.91 oz/in 12mm X 55 Meter Roll

36126 4  Tesa 4965  Double Side Transfer Tape, adhesion 127.91 oz/in 9mm X 55 Meter Roll

36111 5 Z Turbulator 60 Deg  9mm wide .5mm thick, or 90 Deg 9mm wide .5mm thick per meter select at Add to Cart

  Per Meter

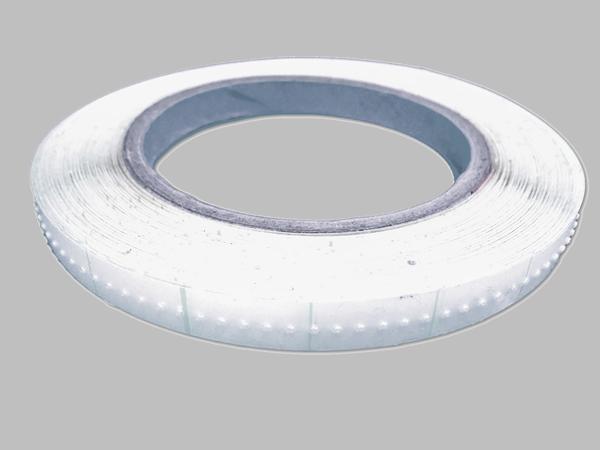

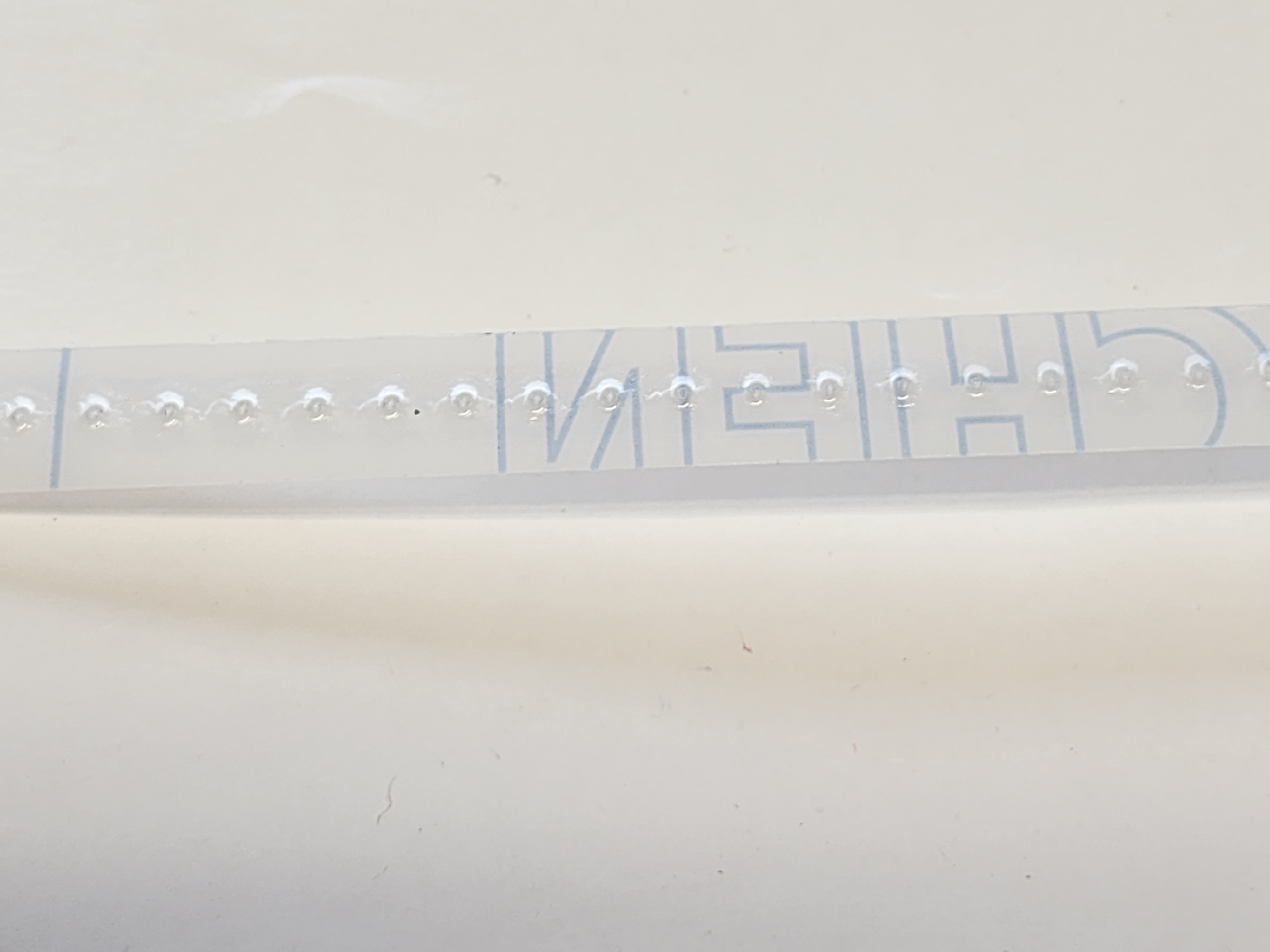

CMR332 Turbulator Tape Dimpled 5mm dist 10 meter Adhesive Backed

3M Dual Lock    Fasten your stuff with Dual Lock
  • Rigid plastic stems interlock.


  • Aggressive VHB adhesive backing.
  •  1' Creates 1/2' of usable product (1/2' each side)



Part Number Description

2000009

3 M Dual Lock  Black with VHB adhesive backing  1" wide  (1 Ft gives 1/2' of usable product)  per Foot

Price/Per Foot

Plexus Plastic Cleaner
Part Number Description

2000013

 Plexus/Plastic Cleaner  13oz aerosol


Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
Craggy  Aero LLC, 3901 River Court, Hornbrook,  CA 96044
Policies
International Shipping by US Postal Service  Express, Priority Mail International or FEDEX
Many credit cards charge 3% international transaction fees. International Customers can save this expense by paying by EFT or wire transfer.
Please email Craggy Aero the order and we will send you an invoice with the transfer information.
