Ultimate Le 5.7
|

Ultimate Le 5.7 Panel
Cutout Dimension Drawing
Ultimate
Le 5.7 Manual Ver1.0.004 05/08/2018
2.25" & 3.125" Standard
Instruments Instructions to make the perfect hole
Fiberglass panel
layout Instructions
Ultimate Le 5.7 Complete Systems
In the Box:
- Ultimate Le57
- Main Power Wiring
- Optical TrackBall Mouse
- Speaker
- USB Panel Extension
|
Technical
Specifications:
- High
Performance Embedded Technology Dual Core 1 GHz Processor
- Sunlight
readable screen 5.7” Diagonal VGA 640 X 480 resolution, true VGA
- Input Device
Ray Laser Stick Controller, Laser Controller, MicroTrack handheld
trackball mouse
- Power Draw
450mA
- No exposed wiring
board on the back of the instrument.
- DB15 male
for power
- RJ45 Serial RS232
connector for vario or GPS
- Dual USB
A connectors for Input Device and Panel Mount USB extension.
- 3.5 mm speaker
socket
- Temperature
range -45C to 85C (-49F to 185F)
- Weight 1 lb 10
oz
- 6.15" X 4.15" X1.30"
(157.6mm X 106.2mm X 32.8mm)
- 12 volts DC
Voltage
- Optional Internal
8Gig MicroSD Memory
Interfaces
- RS232 interface
RJ45
- DB15 Power
- USB for Input
Device
- USB for data
transfer using USB memory stick
- Audio Speaker
Connector
- Remote Panel
Connector cable for USB memory stick
Compatible Devices
and Software
-
Vario inputs CAI 302, LXNAV S7, S8,
S80, S10, S100 Vario, Air-Avionics Vario
- Serial GPS,
NANO, PowerFlarm, PowerMouse
- Software SeeYou
Mobile PNA,
- LK8000
|
|
Optional RayLaser
- BASF Composite
with UV Resistance
- Laser
Optical Trackball
- Trigger for
Mouse Arrow Select
- PTT Mic
Momentary switch
- Additional
Switches available
- 19.3mm
3/4" DG LAK
- 20mm .787" SH,
LS, Stemme, Apis, EB29
- 24mm .945"
Schleicher, Pipistrel Taurus,
Alisport Silent
- 24.5mm 1.00" JS
|
Optical Handheld Trackball Mouse (included
with Ultimate LE57)

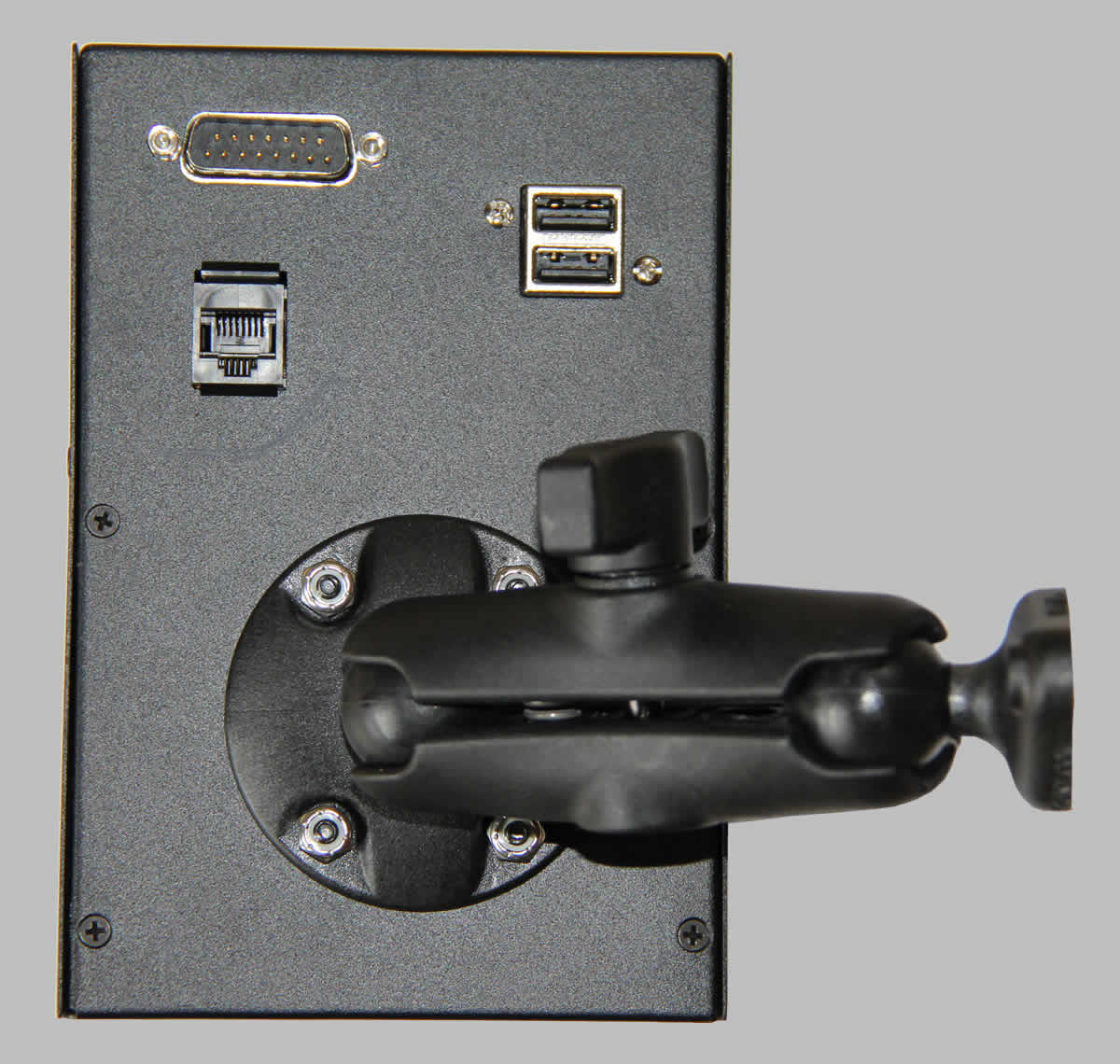

Ram Arm Mount Option 6" socket arm 1" ball
Select at Add to Cart $75
|
| Part # |
Description |
Price |
|
|
| 530000 |
Craggy
Aero Ultimate Le 5.7 without Software, Includes Optical TrackBall Mouse Input,
Speaker (use your own version of SeeYou Mobile) Or LK8000. |
|
Call to order |
| 530000CU |
Craggy
Aero Ultimate Le 5.7 Includes Optical TrackBall Mouse Input,
Speaker, SeeYou Mobile PNA |
|
Call to order |
|
500000PS |
AC 110v
Power Supply 12v, 3 amp for Desktop power |
|
|
|
500017 |
Optical
TrackBall Mouse |
 |
|
|
510000SC |
Craggy Aero Ray Laser Stick Controller,
Includes PTT Mic &
Wiring Harnesses, additional buttons at Add to Cart
|
 |
|
|
530000MSD |
Optional Internal MicroSD memory 8 Gig |
 |
|
|
