FLARM

Up

FlarmBat is Flarm only Devices and can be connect to LXNav Flight computers and Standalone Varios.  They are not approved for USA use by the FCC.

FlarmBat

PowerMouse



Specifications

Software

IGC flight recorder (an option)

ENL (an option)

Second FLARM antenna

Bluetooth compatible to iOS and Android

Expandable to all standard FLARM displays (3V and 12V)



Input and output

Input voltage 8-36 VDC

Consumption 1.1W

External Power and charging port



Hardware

2 FLARM dipole antennas

MicroSD card

1 push button

Bluetooth BT3.0 and BT4.0 LE

Internal battery

GPS module

Internal pressure

Size and weight

102mm x 77mm x 36mm

Weight only 250 grams

Specifications

Manual.pdf

Software

IGC flight recorder (optionally)

Engine noise level – ENL (optionally)

Second FLARM antenna (optionally)

Expandable to all standard FLARM displays (3V and 12V)

ADSB/PCAS IN option



Input and output

Input voltage 8-36 VDC

Consumption 0.8 W



Hardware

USA FCC Approved

2 RJ45 FLARM connector

USB port

2 FLARM Ports (2nd Optional)

2 FLARM antenna (2nd Optional) antenna 7" with 5 foot cable

ADS-B port

ADS-B antenna 90 deg antenna that connects to PowerMouse. 2.4" length

GPS Antenna with 10 foot cable.

Internal pressure

Size and weight

Dimension (not including connectors): 90 x 55 x 25 mm (3.54 x 2.17 x 1.0 inches)

Weight only 160 grams

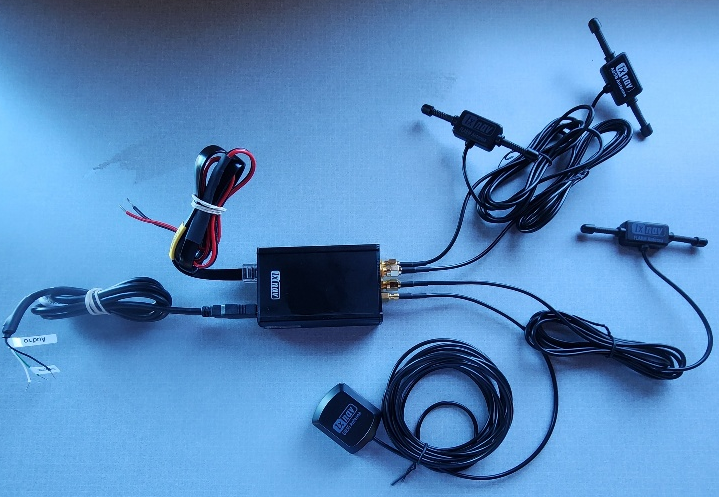

What comes with the Power Mouse.



Optional antennas

  • Extension Cables for PowerMouse Antennas Call.
  • Bulkhead extension cables.  Call
  • Custom lengths available
  • Custom Antennas









PN PowerMouse Description
PM-FCC PowerMouse with built in GPS antenna, without Bluetooth module, USB connector, 1x Dipole antenna included FCC Certified for USA



8 Weeks

PM-FCC-FULL PowerMouse FCC with RFB (second receiver), IGC option, Enl Option, built-in Bluetooth module, GPS antenna, Bluetooth antenna, 2x Dipole antenna included, ADS-B receiver, 1x short90° dipole antenna FCC Certified for USA



8 Weeks

OPTSW-PFIGC IGC option for FlarmMouse flight recorder key with purchase of PowerMouse

Software Key



In Stock

OPTSW-PFENL ENL option for FlarmMouse with IGC approved flight recorder key

Software Key

In Stock



FlarmBat Portable FlarmBat device Not approve for USA



8 weeks




Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
Craggy  Aero LLC, 3901 River Court, Hornbrook,  CA 96044
Policies
International Shipping by US Postal Service  Express, Priority Mail International or FEDEX
Many credit cards charge 3% international transaction fees. International Customers can save this expense by paying by EFT or wire transfer.
Please email Craggy Aero the order and we will send you an invoice with the transfer information.
