O2 Cylinder Clamps

Up

Cylinder Mounts

CMK Clamps

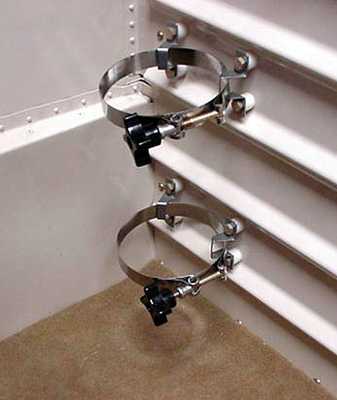

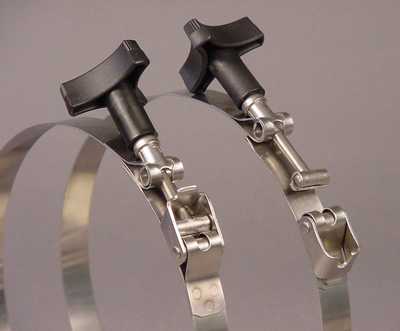

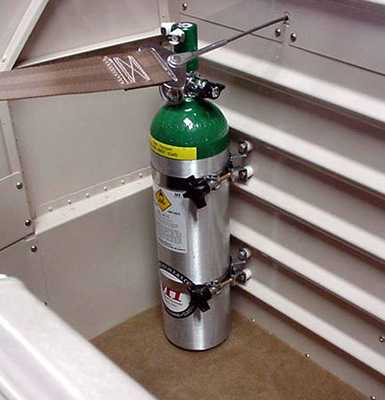

Photos showing a single taut-band is type-01 (excellent for permanent built-in applications) and the photo showing a set of two taut-bands second photo is type with a flip-over quick-release latch allowing the T-bolt to release with a modest amount of loosening.

Clamp Prints

Bracket Prints

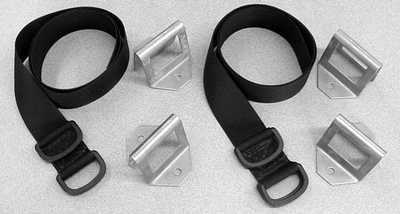

CMK-Universal Mounting Kit

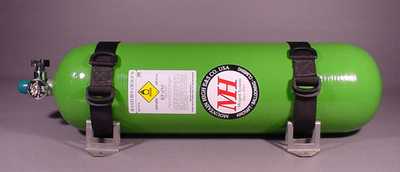

Made specially for fiber-wound cylinders, the CMK-A bracket cylinder mounting kit is a rigid, low profile method of securing either aluminum or fiber-wound cylinders to a flat surface inside a deep area where removal on the axis is not possible and scratching the cylinder may be a concern. A wide fabric strap is used to secure the cylinder, minimizing the possiblity of damaging the cylinder. The CMK-A provides the greatest number of options for mounting these types of cylinders. The brackets can be positioned anywhere throughout the circumference of the fabric belts. The fabric belts can then be rotated so the tightening buckle is positioned almost anywhere desired for easy access. Used with many composite-fiber aircraft

Cylinder Saddle Bracket Mounts Kits

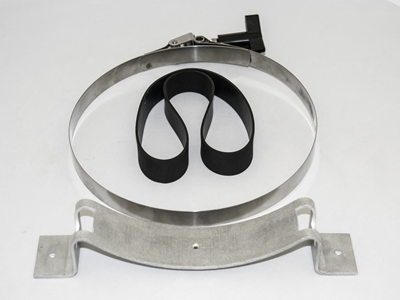

The CMK 'SADDLE' type bracket cylinder mounting kit is a rigid, one peice low-profile, high-strength method of securing CFFC-048, KF-050 and KF-115 composite-fiber cylinders to a flat surface. With the CMK brackets bolted in place, the cylinder is held into place by a set of Quick Release Stainless Steel taut-bands. (Kits come standard with rubber cylinder cushion and Knob) (Set of Two)

Saddle Bracket Mounts Drawing



Part Number Description
00CMK CMK Mounting kits (Select Clamp Size and quick release after you add to cart)
00CMK-0024-00 CMK-Universal mounting Kit
00CMK-0006-13 CMK-048 Saddle Bracket (Quick Release) with cushion bands mounting kit for CFFC-048 and KF-050 cylinders  6.8" dia Cylinder
00CMK-0012-13 CMK-115 Saddle Bracket (Quick Release) with cushion bands mounting kit for KF-115 cylinder  9.1" dia Cylinder




Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
Craggy  Aero LLC, 3901 River Court, Hornbrook,  CA 96044
