FLARM is an award-winning and affordable collision avoidance system for General Aviation, light aircraft and UAVs. Since its invention in 2004, over 25.000 FLARM systems have been installed in aircraft worldwide.

Originally developed for gliders and sailplanes to solve the inherent shortcomings of TCAS, FLARM has today expanded also into other aviation domains.

Craggy Aero has been authorized as a FLARM Service Provider for the Americas

  • Previously PowerFlarm Core units requiring testing and  Repairs were sent to Switzerland.
  • Craggy Aero can now test and repair PowerFlarm Core Units in the America and Canada
  • Powerflarm Portables will still require shipment to Switzerland.
  • PowerFlarm warranty is 1 year from the date of sale.  Craggy Aero will not be repairing PowerFlarms that are under warranty the one year Warranty.

PowerFlarm Core

                         Includes: Panel USB, Power/Data Cord, Flarm A  Antenna, ADS B Antenna, GPS Antenna



Part Number Description                   See Table at the bottom of this page for Version Features

Call for group Discounts.


500208 PowerFLARM Core,    Flarm, transponder & ADS-B receiver includes Flarm A antenna, ADS-B antenna, GPS antenna, includes IGC logger.

IGC logger now included in the new PowerFlarm Core  02/22/2016



 End of Life

NO Longer Available

Optional Features License key

500210 ADS-R and TIS-B License. Reception is important to be able to receive aircraft that have UAT instead of 1090ES or that have no ADS-B Out at all.

Software Key
500209 Craggy Aero Calibration to 35000'   Calibration documents for Badges and records.

500203 Second integrated Flarm Radio for increased range and blindspot software key

Software Key


500204 Audio Output (Core and Pure h/w 1.1, SN 2000)

Software Key

500205 Approval as IGC Flight Recorder (up to and including diamonds)   02/22/2016  Powerflarm Core now includes IGC logger

Software Key

500206 Engine noise recording

Software Key

PowerFlarm Assessories
500108 FL-CAV75 ADS-Antenna  960-1220 MHz

500014 PowerFlarm Dipole  Antennas  79" cable  Flarm A & B Antenna




500015 PowerFlarm Dipole  Antennas  79" cable ADS B



500103 Antenna Kit , 3.4" from bulkhead to top of anternna,  requires 6" ground plane, includes bulkhead mount, aluminum ground plane and 2' cable to PowerFlarm A or B

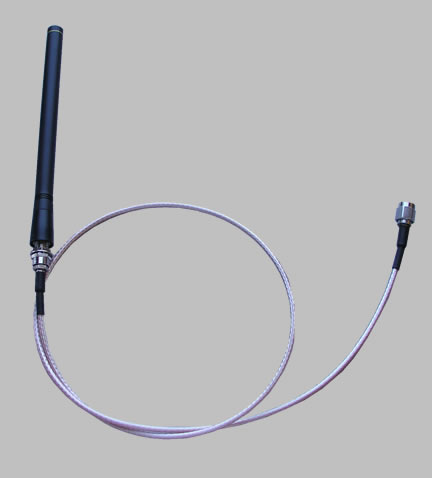

500101 1/2 Wave Dipole Antenna with bulkhead mount   5" from bulkhead to top of Antenna 2' cable

500102 1/4 Wave Antenna Requires 6"  ground Plane  with bulkhead mount 2.3" from bulkhead to top of Antenna 2' cable includes ground plane



500056 GPS antenna

Select cable length at Add to Cart





500107AB 1/4 wave antenna high performance with a slim profile. It operates at 916MHz. The overall antenna length is 2 7/8-inches (73mm). It features a bulkhead mount, flexible whip and, cable to PowerFlarm A or B with 4" square ground plane.  Select cable length at Add to Cart

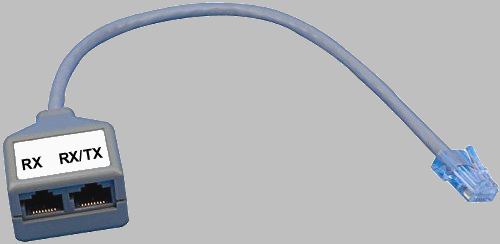

RJ45SPLITTER Splits Output from PowerFlarm or PowerMouse to 2 displays  RX/TX on one port and RX only on the other

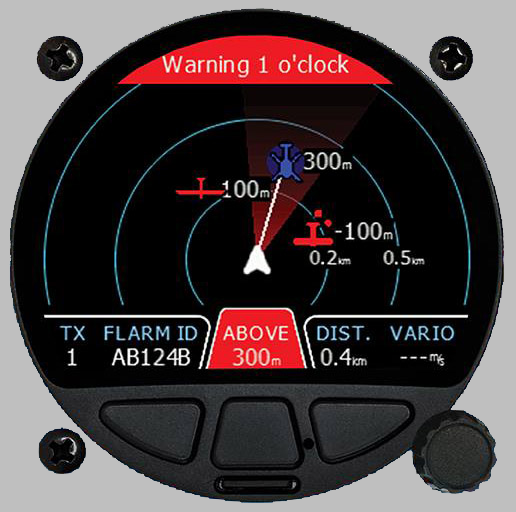

LXNAV TrafficView 57/80

  •
  • Color Display
  • Display either relative altitude or climb rate or FLARM ID for every target
  • Displays climb rate, relative altitude, distance and FLARM ID for the selected target
  • TrafficView57 display: 2.5'' QVGA sunlight readable screen (320 x 240 pixels) with 1200 nits of brightness
  • TrafficView80 display: 3.5'' QVGA sunlight readable screen (320 x 240 pixels) with 1200 nits of brightness
  • Sunlight readable
  • Background color can be set to white or black
  • Small size
  • Loud accoustic warning
  • Color warnings
  • Mode C/S transponder traffic is displayed (when available) as a dashed ring - since distance is known, but not direction
  • microSD card slot and supplied microSD card are used for firmware and FlarmNet updates.
  • ADS-B traffic is displayed (when available)
  • Compatible with FLARM and PowerFLARM products
  • FlarmNet database and User database
  • Intuitive user interface with 3 push-buttons and single rotary/pushbutton knob

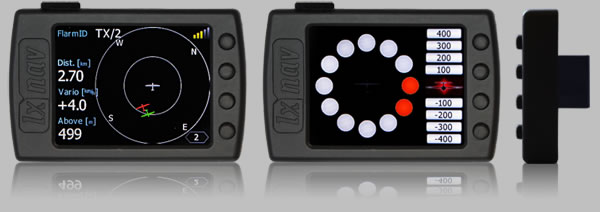

LXNAV FlarmView Std & 57m Display



Main features

  • Color display
  • QVGA resolution 320*240 pixels
  • Sunlight readable
  • Small size - Dimensions(W x H x D): 65 x 42 x 9 mm
  • Extremely slim 9mm
  • Loud acoustic warning
  • Color warnings
  • A/C MODE traffic (undirected warnings)
  • Supports latest flarm dataport specificationVer.6
  • Compatible with Flarm and PowerFlarm
  • FlarmNet database + User database
  • intuitive user interface
  • 12V supply (may not work on old hardware designs, where only 3.3Volts are provided. For such cases we offer an adapter)



FlarmView2

Ideal navigation solution for flarm equipped gliders  (TSK, WP, AS, Flarm, PCAS indicator etc...)

Main features

  • A/C MODE traffic (undirected warnings)
  • Task navigation
  • Waypoint navigation
  • Airspace display (CUB files)
  • Downloading Flights from flarm to microSD
  • Well known LXNAV intuitive user interface
  • Loud acoustic warning
  • Color warnings
  • FlarmNet database
  • Converting IGC flights to KML
  • Compatible with Flarm and PowerFlarm
  • Supports latest flarm dataport specificationVer.6






TrafficView57 TrafficView LXNAV 57mm

8 Weeks


TrafficView80 TrafficView LXNAV 80mm

8 Weeks
1021019 FlarmView Display  LXNAV





In stock
RJ45Splitter Splits Output from PowerFlarm or PowerMouse to 2 displays  RX/TX on one port and RX only on the other

In stock





Air Avionics Air Traffic Flarm Displays

In Stock






Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
Craggy  Aero LLC, 3901 River Court, Hornbrook,  CA 96044
Policies
International Shipping by US Postal Service  Express, Priority Mail International or FEDEX
Many credit cards charge 3% international transaction fees. International Customers can save this expense by paying by EFT or wire transfer.
Please email Craggy Aero the order and we will send you an invoice with the transfer information.
