Trig Transponder & TSO GPS Source

TT21 Class 2 Mode S Built-in Altitude Encoder

Does not meet the FAA 2020 TSO



Trig TT22 Class 1 Mode S Transponder with Built-in Altitude Encoder

Meets the 2020 TSO Requirements

Trig TT22 & ADS-B



TT31 MODE S TRANSPONDER/COMPLETE KIT/Includes: Mounting Tray, Connector Kit, Installation Manual. 2 year warranty.

TN70 WAAS GPS Receiver and WAAS Antenna, TNC female connector

The TT21 is a very interesting new transponder.  It is a Mode S transponder with a built-in altitude encoder, and a remote head.

The TT21 is a Class 2 transponder - certified for use up to 15,000 feet.  The TT22 (below) is a Class 1 transponder - certified for use up to 35,000 feet.  If you plan to fly over 15,000 feet, you will probably want the TT22 (below).

The  front panel controller is smaller than a standard instrument, with a remote transponder.  The TT21 can fit into the smallest of aircraft – and yet it is fully certified and compliant with all the transponder requirements.
  • Low Weight - less than 500 grams!
  • Minimal Panel Space
  • Low Power Consumption
  • 130 Watts Nominal Output
  • Integrated Altitude Encoder
  • Simple Installation
  • Easy to use rotary knobs
  • Support for 1090ES ADS-B Out

Manuals and brochures

The TT22 is a very interesting new transponder.  It is a Mode S transponder with a built-in altitude encoder, and a remote head - at a great price!

The TT22 is a Class 1 transponder - certified for use up to 35,000 feet.  The TT21 (above) is a Class 2 transponder - certified for use up to 15,000 feet.  If you plan to fly over 15,000 feet, you will probably want the TT22 (this one).

  • Low Weight - less than 500 grams!
  • Minimal Panel Space
  • Low Power Consumption
  • 250 Watts Nominal Output
  • Integrated Altitude Encoder
  • Simple Installation
  • Easy to use rotary knobs
  • Support for 1090ES ADS-B Out

Manuals and brochures

Trig TT22 & ADS-B

The TT31 Mode S Transponder is FAA STC approved for use with Garmin's GNS 400W and 500W-series GPS devices when installed with the latest free TT31 ADS-B STC software (version 3.13 required). This approval, coupled with the TT31's compatibility with existing Bendix King KT76A and KT78A transponder trays makes it a fast, cost-effective retrofit option.


The 00225-00 is a complete kit that includes the mounting tray and install kit.


  • European Mode S
  • Low Power Consumption
  • No Cavity Tube
  • 240 Watts Nominal Output
  • Plug and Play Installation
  • Backlit LCD Display
  • Easy to Use Rotary Knobs
  • Timer/Stopwatch Function
  • Altitude Monitor
  • Certified 1090ES ADS-B out

The TT31 is TSO approved for fitting to European and FAA registered aircraft. With a new software upgrade and a connection to an appropriate GPS, this will make the TT31 compliant with the FAA final rule on ADS-B Out for 2020.

The TN70 Kit is an affordable ADS-B Out solution when paired with a Trig Mode S transponder certified to the latest ADS-B standard (FAA TSO C166b) like the TT22 or TT31 models. This kit is ideal for operators intending to use ADS-B In to access ADS-B ground services (TIS-B and FIS-B), because a compliant ADS-B Out is required. This kit is comprised of a WAAS GPS and WAAS certified GPS antenna. The installation does not require space on the panel; instead, the TN70 is fitted as a stand-alone GPS so that existing panel equipment can be left as is.
  • Fully compliant and 2020 ready
  • Completes an ADS-B Out system
  • Requirers no panel space
  • Easy to install
  • Compatible with any Trig transponder





Stub Antenna   2.53"       Cormant  CI-105 Ht  3.23"



      Cormant CI-301 HT 2.7"



Antennas

Coax

Select Antenna  and Coax at Add to Cart

BNC To TNC Adapter  $13.99

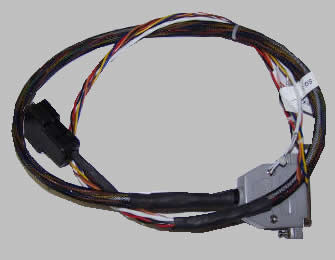

Wiring Harness for  TT21, TT22 Transponder

  • 1/2 Foot   $139
  • 2 Feet $139
  • 3 Feet $139



Transponder Coax Low Loss with TNC - BNC connectors

RG400 Low Loss flexible coaxial cable is a stranded center conductor type and has a .195 diameter with double shielded tan FEP jacket  50 Ohm impedance .

Select Cable Length at Add to Cart



TN72 ADS-B GPS







The TN72 GPS receiver is a fully certified product (FAA TSO-C199) designed for voluntary equipage and use in areas outside of designated or mandated ADS-B airspace. Glider, light sport and general aviation pilots can all enhance their safety by connecting a TN72 position source to their existing Trig transponder. Once configured, the TN72 GPS receiver provides precise and reliable data with non-zero quality indicators. This technical standard supports current and future air to air collision avoidance and situational awareness applications. TN72 certification is based upon an FAA standard known as Traffic Awareness Beacon System or TABS for short. In contrast to uncertified position sources the TN72 is more dependable and is visible to all types of ADS-B In traffic receivers.

Notes:

TN72 currently can only be paired with a Trig transponder.  1090 ES

If the customer already has a TT21 or TT22 transponder fitted already they do need to be aware that the transponder software version must be 2.12 or higher and transponder controller software version must be 1.14 or higher and if they have a TT31 transponder software version must be 3.16 or higher.  Software updates are offered free of charge via Mid Continent Instruments and Avionics.

https://www.mcico.com/

The TN72 is compatible with any GPS antenna approved to ETSO C190 or C114a; the recommended antenna is the Trig TA70.  Where a non-TSO antenna is used, the antenna must include an integral amplifier with gain of not less than 20dB.  The TN72 uses a QMA connection for the antenna.

TA70 GPS Antenna



TA70 GPS Antenna for TN72 TABS GPS

A fully compliant FAA TSO  certified WAAS GPS and antenna



GPS  Active Antenna

GPS active Antenna QMA Connector

GPS Active Antenna  QMA connector  Greater than 20 db gain





 What do I need to do?  The proposed regulation for 2020.

Glider pilots may be purchasing the TT-21 hoping that should gliders lose the 2020 ADS-B Out carriage exemption then they could add a suitable GPS receiver and use the Trig TT-21 to meet an ADS-B Out requirements. They currently will not be able to do that with a TT-21, they can with the higher-power TT-22.

Both certified and experimental aircraft can use Trig equipment. Certified aircraft will need a compliant transponder (or transmitter), a 2020 compliant WAAS GPS and Air/Ground Determination, (typically an air speed switch or squat switch). Experimental aircraft will also require a certified transponder and Air/Ground Determination. However, the FAA will allow the use of a WAAS GPS that meets the performance requirements of the 2020 mandate, this may be uncertified.

Installing a Trig transponder is the easy way to become compliant. Connecting a suitable GPS and configuring Trig’s 1090 ES technology creates a highly effective ADS-B Out capability. Many pilots then wish to add an ADS-B In traffic receiver, to get live traffic information displayed in the cockpit.

To be precise the issue is that 14 CFR § 91.227 requires 1090ES Out installations (that gliders are currently exempt from) to utilize TSO-C166b Class A1, A1S, A2, A3, B1S, or B1 devices. Lower power TSO-C166c Class B0 devices like the Trig TT-21, which are used for ADS-B Out in other countries, are not compliant in the USA. The Trig TT-22 is a TSO-C166c Class B1S device and so is complaint. This all only matters if gliders lose the current 1090ES Out exemption or if owners want to voluntarily equip with ADS-B Out.

All this might change with future TABS/TSO-C199 related regulations but glider owners wanting to best protect their future options really should be choosing a Trig TT-22 over the TT-21. Both the TT-21 and TT-22 are perfectly good and very nice Mode S transponders, it's only the lack of ability in the TT-21 to support fully complaint 1090ES Out that is the issue.


Part # Description Price Order
63000 Trig TT21 Class 2 Mode S Transponder with Built-in Altitude Encoder  Does not meet the 2020 requirements    * Select Harness, Coax or Antenna at Add to Cart

*

63001 Trig TT22 Class 1 Mode S Transponder with Built-in Altitude Encoder  Meets the 2020 TSO requirements.    *  Select Harness, Coax or Antenna  Add to Cart

*


630004 TT31 MODE S TRANSPONDER/COMPLETE KIT/Includes: Mounting Tray, Connector Kit, Installation Manual. 2 year warranty.

*

63005 TN70 WAAS GPS Receiver and WAAS Antenna, TNC female connector *  Select Harness, Coax or Antenna  Add to Cart

*

63006 Trig TN72 TABS GPS/Includes: install kit and manuals  (antenna not included)  TA70 recommended  * Select Antenna coax cable at Add to Cart


63007 Trig TA70 FAA TSO  certified WAAS GPS Antenna (GPS not included) TA72 recommended

GPSAntenna QMA GPS Active Antenna  QMA connector  Greater than 20 db gain select cable length at Add to Cart

2000057 BNC to TNC Adapter is used to connect an antenna cable with a BNC connector to a radio that has a TNC connector



Trig Transceivers

TY91 8.33/25 kHz 6 Watt VHF Radio

The control head comes with spacer parts and can be conveniently mounted in a full 57mm round hole or even smaller  rectangular compact mount.

TY92 8.33/25 kHz 16 Watt VHF Radio

The control head comes with spacer parts and can be conveniently mounted in a full 57mm round hole or even smaller  rectangular compact mount.

The Trig TY91 takes up minimal space and weight. The innovative use of a control head and separate radio hardware unit provides more installation options, especially when space is at a premium.

The control head can be conveniently mounted in a full 57mm round hole or even smaller compact mount.  Fitting is straightforward, and once installed the depth of the radio control head is only 74mm.  In practice this means that the Trig TY91 and TY92 control head can be located in an aircraft instrument panel where a ‘single box’ radio will simply not fit.

Light sport, ultra light, glider and balloon pilots will fit the Trig TY91 radio, this lower powered 6 watt model is ideal for the majority of GA users.

  • Low Weight
  • Minimal Panel Space
  • Low Power Consumption
  • 6 Watts Nominal Output
  • 8.33 and 25 kHz channel spacing
  • Simple Installation
  • Dual Control Head Option available

The TY91 is TSO approved for fitting to European and FAA registered aircraft.  Brochure

Wiring Harness for TY91/92 VHF Transceiver

  • Select at Add to Cart
The Trig TY92 has a higher power output of 16 watts, suitable for longer range transmission and for aircraft that have a 28 volt power supply. Easily installed out with the main avionics stack the TY92 makes a perfect back up radio in larger GA aircraft.

The Trig TY92 takes up minimal space and weight. The innovative use of a control head and separate radio hardware unit provides more installation options, especially when space is at a premium.

The control head can be conveniently mounted in a full 57mm round hole or even smaller compact mount.  Fitting is straightforward, and once installed the depth of the radio control head is only 74mm.  In practice this means that the Trig TY91 and TY92 control head can be located in an aircraft instrument panel where a ‘single box’ radio will simply not fit.

  • Low Weight
  • Minimal Panel Space
  • Low Power Consumption
  • 16 Watts Nominal Output
  • 8.33 and 25 kHz channel spacing
  • Simple Installation

The TY92 is TSO approved for fitting to European and FAA registered aircraft.Brochure





Part # Description Price Order
63002 Trig  TY91 8.33/25 kHz VHF Radio 6 Watt                    *   Select Harness at Add to Cart

*


63003 Trig  TY92 8.33/25 kHz VHF Radio 16 Watt                  *     Select Harness at Add to Cart

*

63009 Trig TY91 8.33/25 kHz VHF Radio 6 Watt Dual Control Head  *     Select Harness at Add to Cart

  *

2120 ME510 Microphone Electret on 11.8x450mm gooseneck with L-bracket, Black Finish.  Red  Mic+,  White Mic-(Ground), Shield Gnd.  Total length with L-Bracket 585 mm- 23" Use with Microair, Trig TY91, XCOM, Flightline

1008008  Speaker Box  8 Ohm, 5W
