Antennas

nav_com.htm

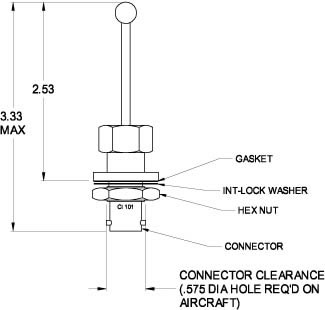

Dimensions

 Stub Antenna Transponder



Dimensions

2.75" Ht, Transponder

CI-305

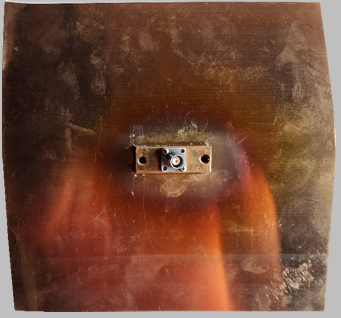

L-2 L Band Transponder

Composite Antenna

No Ground Plane Required

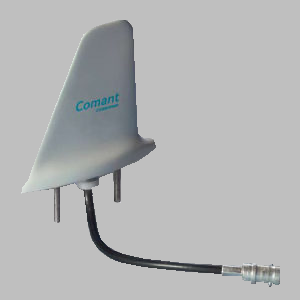

 3.23" Blade Antenna Transponder

CI-105

CI-105-9

6" extension BNC

RG400 Low Loss flexible coaxial cable is a stranded center conductor type and has a .195 diameter with double shielded tan FEP jacket  50 Ohm impedance .

Select Length and Connectors at Add to Cart



Speakers

3.5mm Audio plug



GPS Active Antenna

Select length & connector

Add to Cart



Antenna Guide for Dummies
Part # Description Price Order
1000308 Transponder Stub Antenna/BNC 104-12   Select  coax  cable length at Add to cart if required
1003011 Comant Blade Antenna  3.23" height CI-105  Select  coax  cable length at Add to cart if required
10030119 Comant Blade Antenna  3.23" height CI-105-9 with 6" extension BNC  Select  coax  cable length at Add to cart if required
L-2 L-2 Airframe Mounted L Band Composite Antenna 980 mHz thru 1220 mHz Transponder BNC connector  Select coax cable length at Add to cart if required
1003013 Comant Blade Antenna 2.75 height  CI-305  Select  coax  cable length at Add to cart if required
1008008 Speaker 8 Ohm, 10' cable, 5W   3.5 mm audio plug
3003015 RG400 Low Loss Cable Dual shield  6 Foot min  Per Foot  Select length and connectors at Add to Cart if required
500056 GPS active  antenna  (Select length and connector  at Add to Cart)



Got too many GPS antennas!  " Antenna Combiner"

3 to 1 Combiner Shown

Combines signal from GPS antenna to 2 or 3 different navigation devices

  • High quality GPS antenna Select length at Add to Cart
  • DC blockers on 1 or 2 of the navigation inputs this allows only one device to power the antenna and prevents dc power feed back.
  • Cables available for many different devices.
  • RG316 low loss input cables.
Part # Description Price
GPSAC21 GPS Antenna & Combiner 2 to 1, DC Blockers on 1 ports  Select Cables $33 each at Add to Cart
GPSAC31 GPS Antenna & Combiner 3 to 1, DC Blockers on 2 ports  Select Cables $33 each at Add to Cart




Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
Craggy  Aero LLC, 3901 River Court, Hornbrook,  CA 96044
Policies
International Shipping by US Postal Service  Express, Priority Mail International or FEDEX
Many credit cards charge 3% international transaction fees. International Customers can save this expense by paying by EFT or wire transfer.
Please email Craggy Aero the order and we will send you an invoice with the transfer information.
