Air-Avionics Garrecht VT-01 UltraCompact Class 1 or Class 2 Transponder



Advantages VT-01
  • Install as single block or two block system.
  • Best solution for club fleet installation or installation in different aircraft
  • Available in 2 versions: class 1: 250 W, up to 35000 ft, ≤ 250 kt
    class 2: 150 W, up to 15000 ft, ≤ 175 kt
  • installation cradle provides tool-less move of the central unit
  • integral alticoder (100ft or 25 ft resolution)
  • Installation in small panels with less space
  • Output power: min. 220 Watt (Class-1), or min. 150 Watt (Class-2)
  • Level 2es (extended Squitter)
  • Direct-GPS NMEA Interface for ADS-B out, no Interface required
  • Ultra low power current, no external cooling required
  • CAN-Bus Interface für future applications (i.e. TIS)
  • COMM-A/B Interface via CAN-Bus

Installation Manual     Users Manual

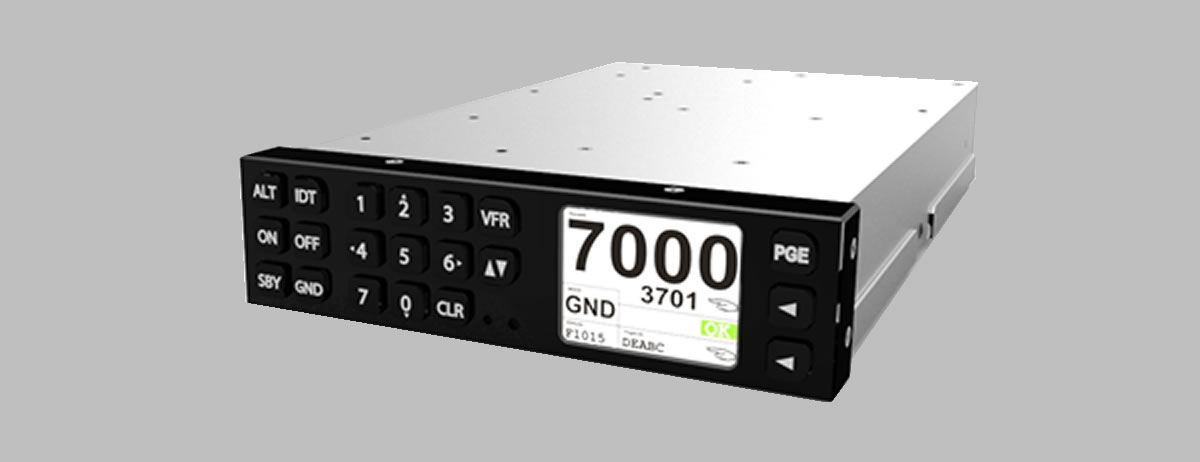

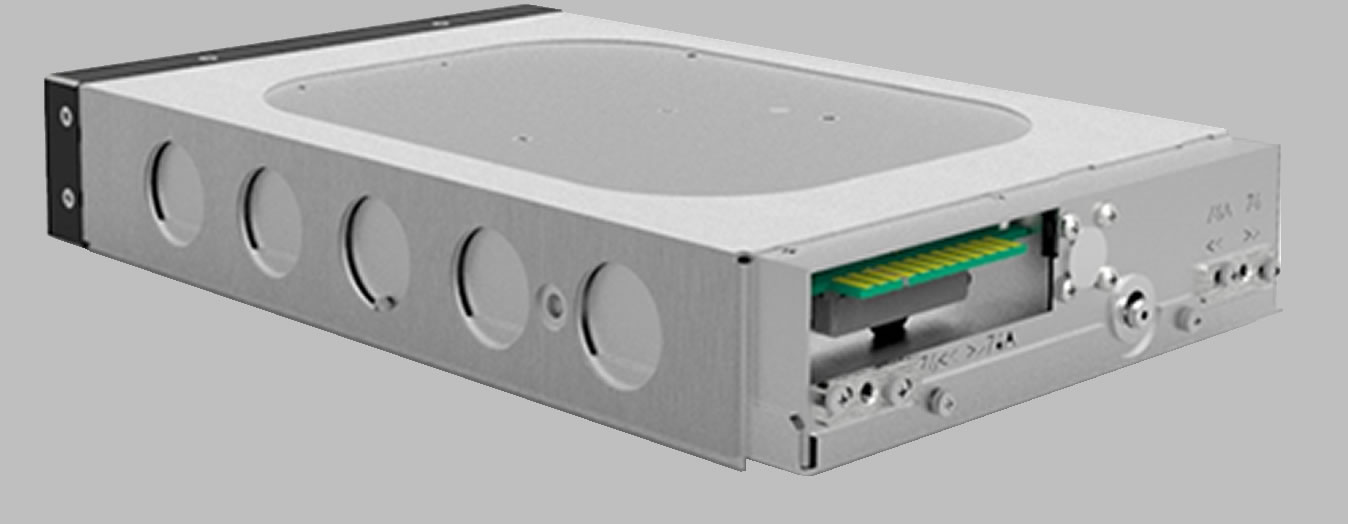

Garrecht VT-2000 Class 1

Advantages VT-2000
  • Installation without adaptor and modification of exsiting wiring harness. Just slide in into existing mounting frame of your KT-76 oder KT-76A / KT-76C.
  • Interfaces for future applications (i.e. ADS-B, TIS)
  • Certification base: ETSO-2C112a, ED-73B
  • Output power: min. 220 Watt (Class-1) Level 2es (extended Squitter)
  • Internal alticoder and interfaces für external alticoders (serial or parallel)
  • Direct-GPS NMEA Interface for ADS-B, no adapters required
  • Transflective color TFT Display and illuminated keyboard with ambient light adaption

Installation Manual  Users Manual

Air-Avionics Garrecht VT-0101

VT-0101

The control-head connects to a VT-01 Mode-S Transponder main unit and has an alticoder included. The VT-01 main-unit is then installed in a special mounting kit and can easily be removed/exchanged without modification of aircraft wiring. This solution is ideal for clubs who want to share one main unit in different aircraft or operators with demand for high availability and easy maintenance.

VT-0102-125 Transponder

All advantages of VT-01
  • Install as single block or two block system.
  • Best solution for club fleet installation or installation in different aircraft
  • installation cradle provides tool-less move of the central unit
  • integral alticoder (100ft or 25 ft resolution)
  • Installation in small panels with less space
  • Output power: min. 220 Watt (Class-1), or min. 150 Watt (Class-2)
  • Level 2es (extended Squitter)
  • Direct-GPS NMEA Interface for ADS-B out, no Interface required
  • Ultra low power current, no external cooling required
  • CAN-Bus Interface for future applications (i.e. TIS)
  • COMM-A/B Interface via CAN-Bus

Technical Details:

  • Mode A/C/S transponder
  • Available in 2 versions:
    • class 1: 250 W, up to 35000 ft, ≤ 250 kt
    • class 2: 150 W, up to 15000 ft, ≤ 175 kt
  • ETSO certified
  • Integrated altitude encoder
  • Ultra compact: 60 mm (W) x 60 mm (H)
  • Mounts into 2-1/4" instrument hole

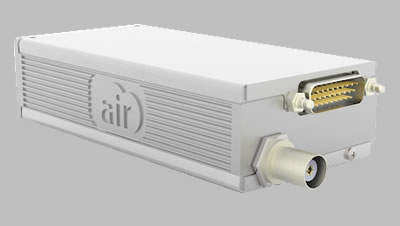

AIR COM Transceiver

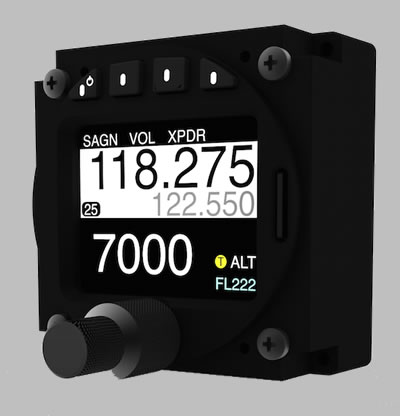

                                                             ACD-57                                            AC

Highlights

(some of the following features require an AIR COM or a VT Mode-S Transponder)

  • Controlling Radio and Transponder in one easy to use interface
  • Brilliant, large color display - largest in class, perfectly sunlight readable
  • Easy intuitive user interface
  • Airport Database, GPS Interface, Nearest Frequency Function
  • Frequency/Channel Memory
  • Channel History
  • Dual Watch with separate volume control

AIR COM is our next generation radio with 8.33kHz channel spacing. It offers many new functions like an audio equalizer, GPS based frequency selection, or controlling our mode-S transponder. The radio is very compact and easy to install, and will be available by the end of 2015. AIR COM breaks new ground. The simple operation and meaningful functionality helps to reduce our cockpit work loads.



Stub Antenna   2.53"       Cormant CI-301 2.7"

     $39.99                          $239

Antennas

&

Coax

Select Antenna  and Coax at Add to Cart

BNC To TNC Adapter  $13.99

Wiring Harness for  TT21, TT22 Transponder

  • 1/2 Foot   $95
  • 2 Feet $95
  • 3 Feet $105

Wiring Harness for TY91/92 VHF Transceiver

  • $159  Select at Add to Cart

Transponder Coax Low Loss with TNC - BNC connectors

RG400 Low Loss flexible coaxial cable is a stranded center conductor type and has a .195 diameter with double shielded tan FEP jacket  50 Ohm impedance .

Select Cable Length at Add to Cart

Part # Description   Price Order
810009 Garrecht VT-01Ultra Compact Class 2 Mode S Transponder with Built-in Altitude Encoder     * Select Harness, Coax or Antenna at Add to Cart

*

810010 Garrecht VT-01Ultra Compact Class 1 Mode S Transponder with Built-in Altitude Encoder   *  Select Harness, Coax or Antenna  Add to Cart

*


810011 Garrecht VT-2000 Class 1 Mode S Transponder with Built-in Altitude Encoder *  Select Harness, Coax or Antenna  Add to Cart

*

VT-0102-125

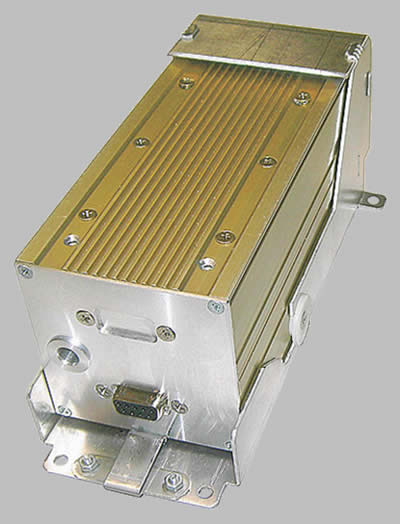

VT-01 Mode-S Transponder Class 1 - Main Unit

VT-0101 VT-01 Mode-S Transponder Control Head
VT-0103-1

VT-01 Mount Rack

AC AIR COM Tranceiver approx $566 Fall 2016 call to pre order
ACD-57 AIR Control Display approx $1039 Fall 2016 call to pre order


Order on line or  Call, Richard   530-905-0062, or email info@craggyaero.com .
Craggy  Aero LLC, 3901 River Court, Hornbrook,  CA 96044
