 1090ES: Mode S Extended Squitter Transponder. An ADS-B transceiver operating on one of two FAA-approved datalink frequencies. It operates on 1090 MHz, using a Mode S Extended Squitter transponder (1090ES for short, referring to the ADS-B information appended to the Mode S data). 1090ES is the international standard; in the United States, it is required for operations above 18,000 feet and for Part 135 operations. While the 1090 ES datalink provides traffic information, it does not receive weather data.

ADS-B: Automatic Dependent Surveillance-Broadcast. In this core technology behind the FAA’s Next-Generation Air Traffic Control System, a datalink transceiver automatically broadcasts the aircraft’s location and other data at regular intervals. The system doesn’t wait to be interrogated, like a transponder.

SSR: Secondary surveillance radar (SSR)   is a radar system used in air traffic control (ATC), that not only detects and measures the position of aircraft, i.e. bearing and distance, but also requests additional information from the aircraft itself such as its identity and altitude. Unlike primary radar systems that measure the bearing and distance of targets using the detected reflections of radio signals, SSR relies on targets equipped with a radar transponder, that replies to each interrogation signal by transmitting a response containing encoded data. SSR is based on the military identification friend or foe (IFF) technology originally developed during World War II, therefore the two systems are still compatible.

ADS-R: Automatic Dependent Surveillance-Rebroadcast. ADS-B has two datalink systems, and because they use different frequencies, they can’t talk to each other. Enter ADS-R, a ground-based system which relays 978-MHz UAT traffic to 1090-MHz Mode S Extended Squitter traffic, and vice versa. In areas with radar service, information on non-ADS-B aircraft is broadcast to aircraft equipped with ADS-B In.

TIS-B: Traffic Information Service Broadcast. TIS-B is an uplink of radar-identified traffic from ground stations to ADS-B-equipped aircraft. This traffic can be displayed in panel-mounted avionics, or on a tablet or other electronic display, along with ADS-B traffic received directly or via ADS-R.

FIS-B: Fight Information Service-Broadcast. FAA ground stations transmit FIS-B—which includes no-fee weather, temporary flight restrictions, and other data—over the Universal Access Transceiver (UAT) datalink frequency. FIS-B is considered an advisory service and includes METARs and TAFs; Nexrad precipitation maps; airmets, sigmets, and convective sigmets; winds and temperatures aloft; pireps; TFRs; and status of special use airspace.

CDTI: Cockpit Display of Traffic Information. Traffic information received via ADS-B—whether directly, via ADS-R, or through TIS-B—is displayed on a multifunction display (MFD), other panel-mounted avionics, or on an iPad or other portable electronic device.

UAT: Universal Access Transceiver. An ADS-B transceiver operating on one of two FAA-approved datalink frequencies. A UAT operates on 978 MHz (978UAT). Equipment costs generally are lower than for 1090ES, and this frequency can receive free traffic and weather information (the UAT must also support the optional ADS-B In). The United States is the only country using the UAT standard.



2020 Complaint ADS-B Out install in a certified standard class aircraft requires a 337, install is required with an STC.  The Peregrine STC paperwork will be provided with the purchase. Peregrine is Trig's STC development partner in the USA.

The STC in the case of a TT-22 and TN-70 install is not being used as the basis for a major alteration, it's being used only to justify the pairing of the TT22 and TN70 as required by FAA ADS-B installation policy (see this doc:

http://rgl.faa.gov/Regulatory_and_Guidance_Library/rgPolicy.nsf/0/1fdea629cd029a7c86257f7900601653/$FILE/AFS-360_2016-03-02.pdf

It is important for A&Ps involved in any work to read that doc and just do the minimum paperwork described in that paper. No more, no less. If they ever start talking about using the STC for a major alteration approval run away. Specifically the answer to the question "After initial approval, can applicable ADS-B OUT systems be installed on aircraft not covered by that approval?" ... is what is being applied here, read it carefully, it talks about using an applicable AML STC... if there is one... here there is not as the AML does not apply to the glider, so OK you use the STC only to justify the pairing provided for in that answer. read it carefully. eg FAA is saying is if there *was* a different AML STC they want you to use that instead, and since there is not... you don't. That answer both explains the policy here and tells the installer all the paperwork bits they have to do in this case.

Under FAA Memo titled “Installation Approval for ADS-B OUT Systems,” the FAA explains that after an STC is achieved for ADS-B OUT equipment, additional installations can be accomplished on aircraft not listed under the AML STC by an A&P with Inspection Authorization (IA) so long as the installation does not require airframe modification. This process requires completion of a two page FAA form known as a 337. We are providing a mostly complete sample Form 337 here.  Once the form is completed your installer will mail it into the FAA office in Oklahoma City.  The process is normal for many ADS-B installations and your installer is likely familiar with the process.

Transponders & ADS-B

Equipment TT22 with TN72 GPS Source , Experimental  Aircraft

*******Trig Guidance on ADS-B Equipment for Experimental and Standard Class Gliders Airspace********

Capabilities:

1) SIL=1 (A TN72 GPS driving a Trig TT21 or TT22 transponder) this is the "TABS" install and provides the following capabilities for your glider.

  •  Has all the standard transponder capabilities, including ATC SSR visibility and PCAS, TCAD and TCAS compatibility
  •  Is visible to portable 1090ES In traffic displays (e.g. a Stratus or Stratux receiver driving EFB software)
  •  Is visible to PowerFLARM (with ADS-B In Option)
  •  Is visible to certificated fixed install 1090ES In traffic displays in GA aircraft and above
  •  Is visible to UAT In equipped aircraft - via ADS-R rebroadcast by the ground infrastructure to suitably equipped client aircraft
  •  Is NOT shown as a TIS-B target to client aircraft when within SSR coverage (since the system is using ADS-R to show you as a more precise target to those clients)
  •  Does (if properly configured) make your glider a client of ADS-B ground based services so you can see other traffic vis ADS-R and TIS-B (but remember PowerFLARM does not display ADS-R or TIS-B traffic)
  •  Is NOT visible to ATC via ADS-B (ATC can still see you when within SSR coverage)
  • Does NOT provide flight privilege in airspace in 14 CFR 91.225 that requires ADS-B Out, remembering gliders already have some exemptions there.
  • ADS-B Out installations may require you upgrade firmware on your Trig transponder, TABS/SIL=1 use requires the TT21/TT22 has firmware 2.12 or higher, SIL=3/2020 compliant use requires firmware 2.13 or higher. Updating the firmware requires a (no charge besides shipping) return to the Mid-Continent Trig's USA service partner  Mid Continent can also upgrade a TT21 to TT22 for around $950.

Sil 3 Setting is recommended

Menu and Setup Items SIL 3 for TT22/TN72/GPSAntenna QMA



Trig TT22 Class 1 Mode S Transponder with Built-in Altitude Encoder  Meets the 2020 TSO requirements.    *  Select Harness, Coax or Antenna  Add to Cart

How does the compact fit or full round installation work?
All units ship with the necessary parts to enable you to choose to install the radio either as a compact mount or 2 ¼ “ full round. The TY91 and TY92 kit includes a template to assist you in cutting an accurate compact mount hole in the panel. If a full round mounting is required then you simply fit the included plastic blanks above and below the body of the TC90 controller.

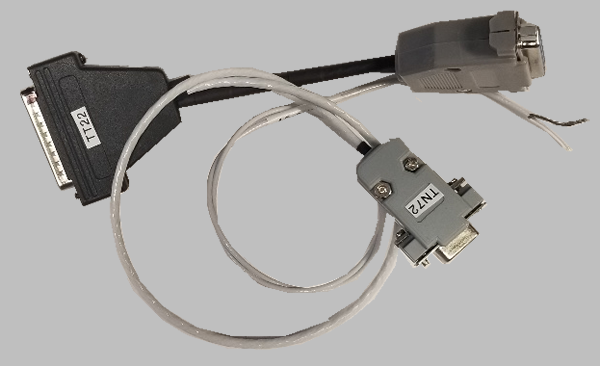

TT22 Wiring Harnesses (Select at Add To Cart if you purchase a TT22)
  • Harness
  • Antenna
  • Coax

Add to cart to see prices.



Trig TN72 TABS GPS/Includes: install kit and manuals  (antenna not included)

 Select Antenna, Airspeed Switch  or wire harness at Add to Cart



Airspeed Switch

To confirm correct operation while sitting on ground, turn the transponder mode knob to alt and the display should say grd, then you can increase pitot pressure to above the stall speed setting and the transponder display will switch to alt.

If you fly in wave without this switch your ground speed may be very low and ATC will think you are on the ground.

GPS Active Antenna QMA Connector

Required for TN72



     63001

TT22WH

    TT22TC20TN72WH



      63006

      63006

        GPSAntenna QMA



Transponders & ADS-B

Equipment TT22 with TN70 GPS , Standard Class Aircraft

Capabilities:

3) SIL=3 (Trig TT22 (not TT21) with either a TN72 GPS in an experimental glider or TN70 GPS in a type certified glider). This is a fully 14 CFR 91.227 2020 ADS-B Out compliant system and provides the following capabilities for your glider.

  •  Has all the standard transponder capabilities, including ATC SSR visibility and PCAS, TCAD and TCAS compatibility.
  •  Is visible to portable 1090ES In traffic displays (e.g. a Stratus or Stratux receiver driving EFB software).
  •  Is visible to PowerFLARM (with ADS-B In Option)
  •  Is visible to certificated fixed install 1090ES In traffic displays in GA aircraft and above
  •  Is visible to UAT In equipped aircraft - via ADS-R rebroadcast by the ground infrastructure to suitably equipped client aircraft
  •  Is NOT shown as a TIS-B target to client aircraft when within SSR coverage (since the system is using ADS-R to show you as a more precise target to those clients)
  •  Does (if properly configured) make your glider a client of ADS-B ground based services so you can see other traffic vis ADS-R and TIS-B (but remember PowerFLARM cannot display ADS-R or TIS-B traffic).
  •  Is visible to ATC via ADS-B (including outside of SSR coverage)
  •  Does provide flight privilege in airspace in 14 CFR 91.225 that requires ADS-B Out, remembering gliders already have some exemptions there
  • ADS-B Out installations may require you upgrade firmware on your Trig transponder, TABS/SIL=1 use requires the TT21/TT22 has firmware 2.12 or higher, SIL=3/2020 compliant use requires firmware 2.7 or higher. Updating the firmware requires a (no charge besides shipping) return to the Mid-Continent Trig's USA service partner  Mid Continent can also upgrade a TT21 to TT22 for around $900.

Menu and Setup Items for TT22/TN72/GPSAntenna QMA





Trig TT22 Class 1 Mode S Transponder with Built-in Altitude Encoder  Meets the 2020 TSO requirements.    *  Select Harness, Coax or Antenna  Add to Cart

How does the compact fit or full round installation work?
All units ship with the necessary parts to enable you to choose to install the radio either as a compact mount or 2 ¼ “ full round. The TY91 and TY92 kit includes a template to assist you in cutting an accurate compact mount hole in the panel. If a full round mounting is required then you simply fit the included plastic blanks above and below the body of the TC90 controller.



TT22 Wiring Harnesses (Select at Add To Cart if you purchase a TT22)
  • Harness
  • Antenna
  • Coax

Add to cart to see prices.



To confirm correct operation while sitting on ground, turn the transponder mode knob to alt and the display should say grd, then you can increase pitot pressure to above the stall speed setting and the transponder display will switch to alt.

TN70 WAAS GPS Receiver and WAAS Antenna, TNC female connector (optional  Airspeed Switch required for STC Peregrine Paperwork)



     63001

TT22WH

           TT22TC20TN70WH

     63005

     63006 AirSpeed Switch



ADS B CLICK FOR complete Information and regulations PAGE



TT21 Class 2 Mode S Built-in Altitude Encoder

Does not meet the FAA 2020 TSO



Trig TT22 Class 1 Mode S Transponder with Built-in Altitude Encoder



Meets the 2020 TSO Requirements

Trig TT22 & ADS-B

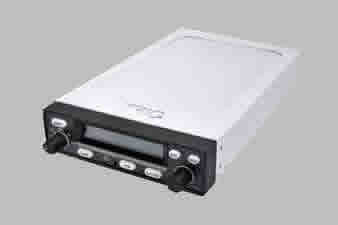

TT31 MODE S TRANSPONDER/COMPLETE KIT/Includes: Mounting Tray, Connector Kit, Installation Manual. 2 year warranty.

TN70 WAAS GPS Receiver and WAAS Antenna, TNC female connector

TN70 WAAS GPS Receiver and WAAS Antenna, TNC female connector & Airspeed Switch required for STC Peregrine STC Paperwork

The TT21 is a very interesting new transponder.  It is a Mode S transponder with a built-in altitude encoder, and a remote head.

The TT21 is a Class 2 transponder.  The TT22 is a Class 1 transponder - certified for use up to 35,000 feet.  If you plan to fly over 15,000 feet, you will probably want the TT22 .

The  front panel controller is smaller than a standard instrument, with a remote transponder.  The TT21 can fit into the smallest of aircraft – and yet it is fully certified and compliant with all the transponder requirements.
  • Low Weight - less than 500 grams!
  • Minimal Panel Space
  • Low Power Consumption
  • 130 Watts Nominal Output
  • Integrated Altitude Encoder
  • Simple Installation
  • Easy to use rotary knobs
  • Support for 1090ES ADS-B Out

Manuals and brochures

The TT22 is a very interesting new transponder.  It is a Mode S transponder with a built-in altitude encoder, and a remote head - at a great price!

The TT22 is a Class 1 transponder - certified for use up to 35,000 feet.  The TT21 (above) is a Class 2 transponder - certified for use up to 15,000 feet.  If you plan to fly over 15,000 feet, you will probably want the TT22 (this one).

  • Low Weight - less than 500 grams!
  • Minimal Panel Space
  • Low Power Consumption
  • 250 Watts Nominal Output
  • Integrated Altitude Encoder
  • Simple Installation
  • Easy to use rotary knobs
  • Support for 1090ES ADS-B Out

Manuals and brochures

Trig TT22 & ADS-B

The TT31 Mode S Transponder is FAA STC approved for use with Garmin's GNS 400W and 500W-series GPS devices when installed with the latest free TT31 ADS-B STC software (version 3.13 required). This approval, coupled with the TT31's compatibility with existing Bendix King KT76A and KT78A transponder trays makes it a fast, cost-effective retrofit option.


The 00225-00 is a complete kit that includes the mounting tray and install kit.


  • European Mode S
  • Low Power Consumption
  • No Cavity Tube
  • 240 Watts Nominal Output
  • Plug and Play Installation
  • Backlit LCD Display
  • Easy to Use Rotary Knobs
  • Timer/Stopwatch Function
  • Altitude Monitor
  • Certified 1090ES ADS-B out

The TT31 is TSO approved for fitting to European and FAA registered aircraft. With a new software upgrade and a connection to an appropriate GPS, this will make the TT31 compliant with the FAA final rule on ADS-B Out for 2020.

The TN70 Kit is an affordable ADS-B Out solution when paired with a Trig Mode S transponder certified to the latest ADS-B standard (FAA TSO C166b) like the TT22 or TT31 models. This kit is ideal for operators intending to use ADS-B In to access ADS-B ground services (TIS-B and FIS-B), because a compliant ADS-B Out is required. This kit is comprised of a WAAS GPS and WAAS certified GPS antenna. The installation does not require space on the panel; instead, the TN70 is fitted as a stand-alone GPS so that existing panel equipment can be left as is.
  • Fully compliant and 2020 ready
  • Completes an ADS-B Out system
  • Requirers no panel space
  • Easy to install
  • Compatible with any Trig transponder





Stub Antenna   2.53"       Cormant  CI-105 Ht  3.23"



      Cormant CI-301 HT 2.7"

L2 Transponder Antenna

Advanced Aircraft Electronics

Antennas

Coax

Select Antenna  and Coax at Add to Cart

BNC To TNC Adapter  $13.99

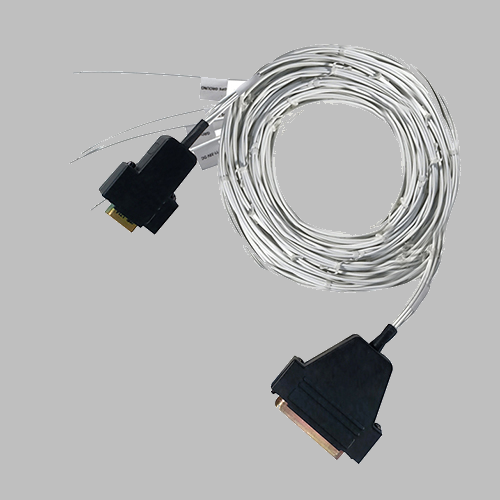

Wiring Harness for  TT21, TT22 Transponder

  • 1/2 Foot   $139
  • 2 Feet $139
  • 3 Feet $139



Transponder Coax Low Loss with TNC - BNC connectors

RG400 Low Loss flexible coaxial cable is a stranded center conductor type and has a .195 diameter with double shielded tan FEP jacket  50 Ohm impedance .

Select Cable Length at Add to Cart



Included in this bundle are the TT22 Mode S Transponder, theTN72 GPS Receiver and the matching TA70 GPS Antenna.





The Trig 2020 ADS-B Bundle provides a fully compatible ADS-B Out solution that meets the requirements of FAR 91.227 for light-sport and experimental aircraft.

Included in this bundle are the TT22 Mode S Transponder, theTN72 GPS Receiver and the matching TA70 GPS Antenna.


  • The TT22 system is Trig’s smallest and lightest Mode S general aviation transponder. It can fit into the smallest of aircraft, yet is fully certified and compliant with all the transponder requirements.
  • The TN72 GPS Receiver is an affordable and practical position source for Trig transponders. By adding GPS information to the transponder output, the aircraft’s precise GNSS location is transmitted to other ADS-B equipped aircraft—improving electronic visibility and safety.
  • The TA70 GPS antenna is a fully certified TSO-C190 antenna—compatible and proven with Trig transponders—and meets the FAA ADS-B requirements.

TN72 ADS-B GPS







The TN72 GPS receiver is a fully certified product (FAA TSO-C199) designed for voluntary equipage and use in areas outside of designated or mandated ADS-B airspace. Glider, light sport and general aviation pilots can all enhance their safety by connecting a TN72 position source to their existing Trig transponder. Once configured, the TN72 GPS receiver provides precise and reliable data with non-zero quality indicators. This technical standard supports current and future air to air collision avoidance and situational awareness applications. TN72 certification is based upon an FAA standard known as Traffic Awareness Beacon System or TABS for short. In contrast to uncertified position sources the TN72 is more dependable and is visible to all types of ADS-B In traffic receivers.

Notes:

TN72 currently can only be paired with a Trig transponder.  1090 ES

If the customer already has a TT21 or TT22 transponder fitted already they do need to be aware that the transponder software version must be 2.12 or higher and transponder controller software version must be 1.14 or higher and if they have a TT31 transponder software version must be 3.16 or higher.  Software updates are offered free of charge via Mid Continent Instruments and Avionics.

https://www.mcico.com/

The TN72 is compatible with any GPS antenna approved to ETSO C190 or C114a; the recommended antenna is the Trig TA70.  Where a non-TSO antenna is used, the antenna must include an integral amplifier with gain of not less than 20dB.  The TN72 uses a QMA connection for the antenna.

TA70 GPS Antenna



TA70 GPS Antenna for TN72 TABS GPS

A fully compliant FAA TSO  certified WAAS GPS and antenna



GPS  Active Antenna

GPS active Antenna QMA Connector

GPS Active Antenna  QMA connector  Greater than 20 db gain





Part # Description Price Order
63000 Trig TT21 Class 2 Mode S Transponder with Built-in Altitude Encoder  Does not meet the 2020 requirements    * Select Harness, Coax or Antenna at Add to Cart

*

63001 Trig TT22 Class 1 Mode S Transponder with Built-in Altitude Encoder  Meets the 2020 TSO requirements.    *  Select Harness, Coax or Antenna  Add to Cart

*


63004 TT31 MODE S TRANSPONDER/COMPLETE KIT/Includes: Mounting Tray, Connector Kit, Installation Manual. 2 year warranty.

63005 TN70 WAAS GPS Receiver and WAAS Antenna, TNC female connector (Optional Airspeed Switch required for STC Peregrine  Paperwork)*  Select Harness, Coax or Antenna  Add to Cart

63006 Trig TN72 TABS GPS/Includes: install kit and manuals  (antenna not included)  TA70 recommended  * Select Antenna coax cable at Add to Cart


63007 Trig TA70 FAA TSO  certified WAAS GPS Antenna (GPS not included) TA72 recommended

GPSAntenna QMA GPS Active Antenna  QMA connector  Greater than 20 db gain select cable length at Add to Cart

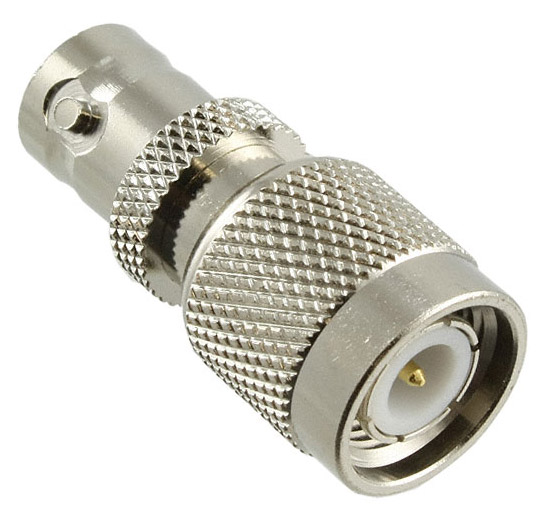

2000057 BNC to TNC Adapter is used to connect an antenna cable with a BNC connector to a radio that has a TNC connector

63010 The Trig 2020 ADS-B Bundle (02016-00) provides a fully compatible ADS-B Out solution that meets the requirements of FAR 91.227 for light-sport and experimental aircraft.

Included in this bundle are the TT22 Mode S Transponder, theTN72 GPS Receiver and the matching TA70 GPS Antenna.
